TIDatasheet (PDF)

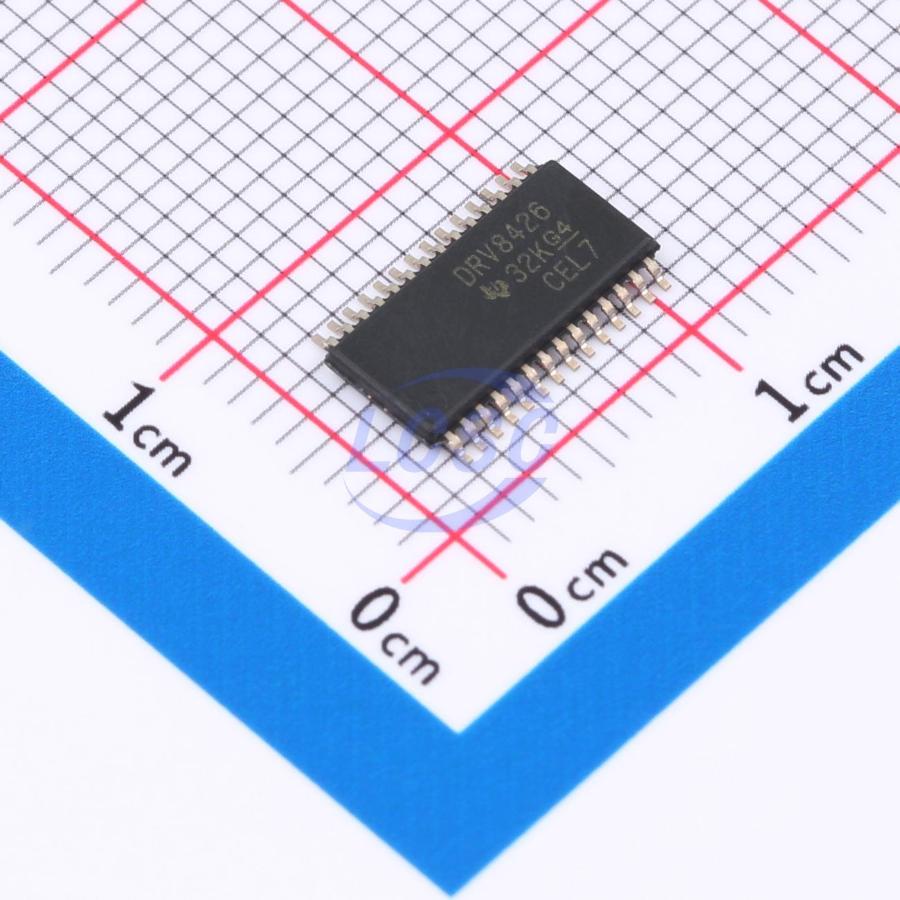

DRV8426PWPR
HTSSOP-28 Motor Drivers, Controllers RoHS
HTSSOP-28ROHS CompliantActive
Stepper motor driver with integrated current sensing, 1/256 microstepping, STEP/DIR interface, and intelligent tuning technology
- Manufacturer
- TI
- Manufacturer part #
- DRV8426PWPR
- Store part #
- C3681392
- Package / case
- HTSSOP-28
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,485 in stock
#C3681392
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹341.86 | ₹341.86 |
| 10+ | ₹289.82 | ₹2,898.20 |
| 30+ | ₹257.20 | ₹7,716.00 |
| 100+ | ₹223.73 | ₹22,373.00 |
| 500+ | ₹208.84 | ₹1,04,420.00 |
| 1,000+ | ₹202.14 | ₹2,02,140.00 |
1 × ₹341.86
₹341.86
excl. GST
₹403.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DRV8426PWPR
₹341.86 for 1 + GST
Specifications
- Number of H-bridges
- 2
- Drive Type
- Bipolar Driver
- Features
- Motor step-out prevention function;Built-in charge pump;Overcurrent Protection;Over temperature protection;Under-voltage lockout
- Technology
- Yes
- Interface
- STEP/DIR
- Operating Temperature
- -40℃~+125℃
- Output Current
- 1.5A
- Step Resolution
- 1;2;4;8;16;32;64;128;256
- RDS(on)
- 900mΩ
- Motor Drive Voltage(Vm)
- 4.5V~33V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.197 g
