TIDatasheet (PDF)

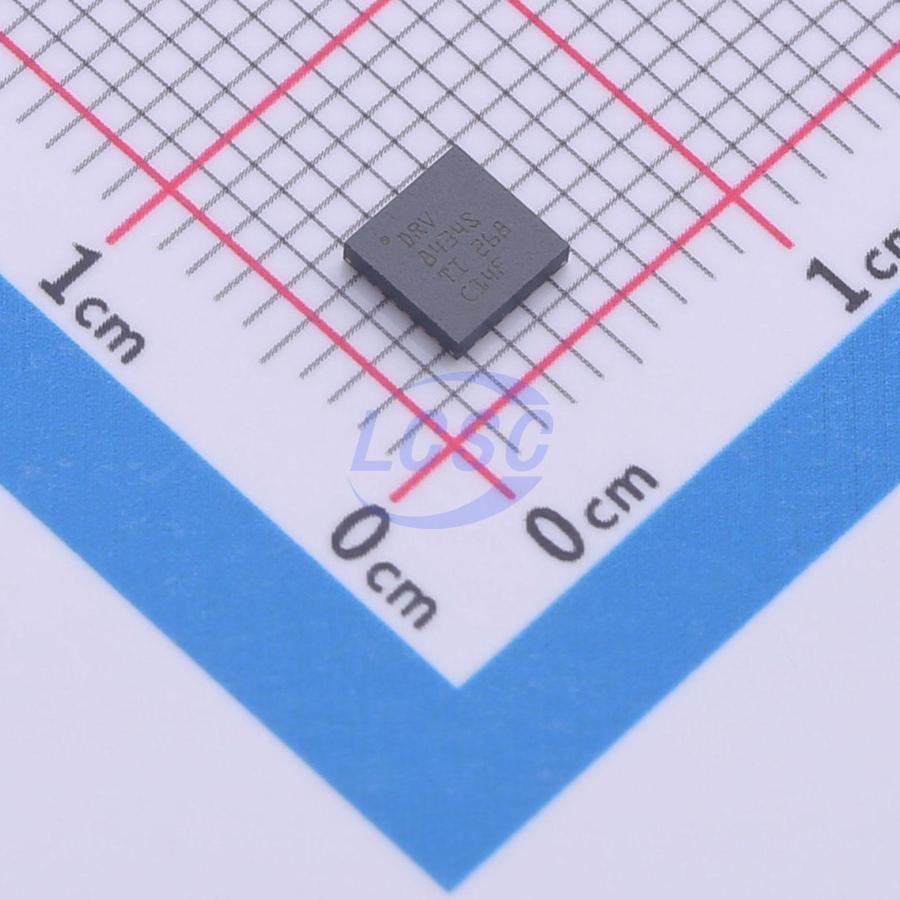

DRV8434SRGER
VQFN-24(4x4) Motor Drivers, Controllers RoHS
VQFN-24(4x4)ROHS CompliantActive
Stepper motor driver with integrated current sensing, 1/256 microstepping, SPI interface, intelligent tuning technology, and stall detection
- Manufacturer
- TI
- Manufacturer part #
- DRV8434SRGER
- Store part #
- C3681236
- Package / case
- VQFN-24(4x4)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,967 in stock
#C3681236
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹535.56 | ₹535.56 |
| 10+ | ₹483.16 | ₹4,831.60 |
| 30+ | ₹456.42 | ₹13,692.60 |
| 100+ | ₹420.54 | ₹42,054.00 |
| 500+ | ₹407.71 | ₹2,03,855.00 |
| 1,000+ | ₹402.27 | ₹4,02,270.00 |
1 × ₹535.56
₹535.56
excl. GST
₹631.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DRV8434SRGER
₹535.56 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Motor step-out prevention function;Power-on reset;Overvoltage protection;Built-in charge pump;Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Thermal warning;Under-voltage lockout
- Technology
- Yes
- Interface
- SPI;STEP/DIR
- Operating Temperature
- -40℃~+125℃
- Step Resolution
- 256
- Output Current
- 1.8A
- Control Voltage
- 4.2V~5.25V
- RDS(on)
- 330mΩ
- Motor Drive Voltage(Vm)
- 4.5V~48V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.148 g
