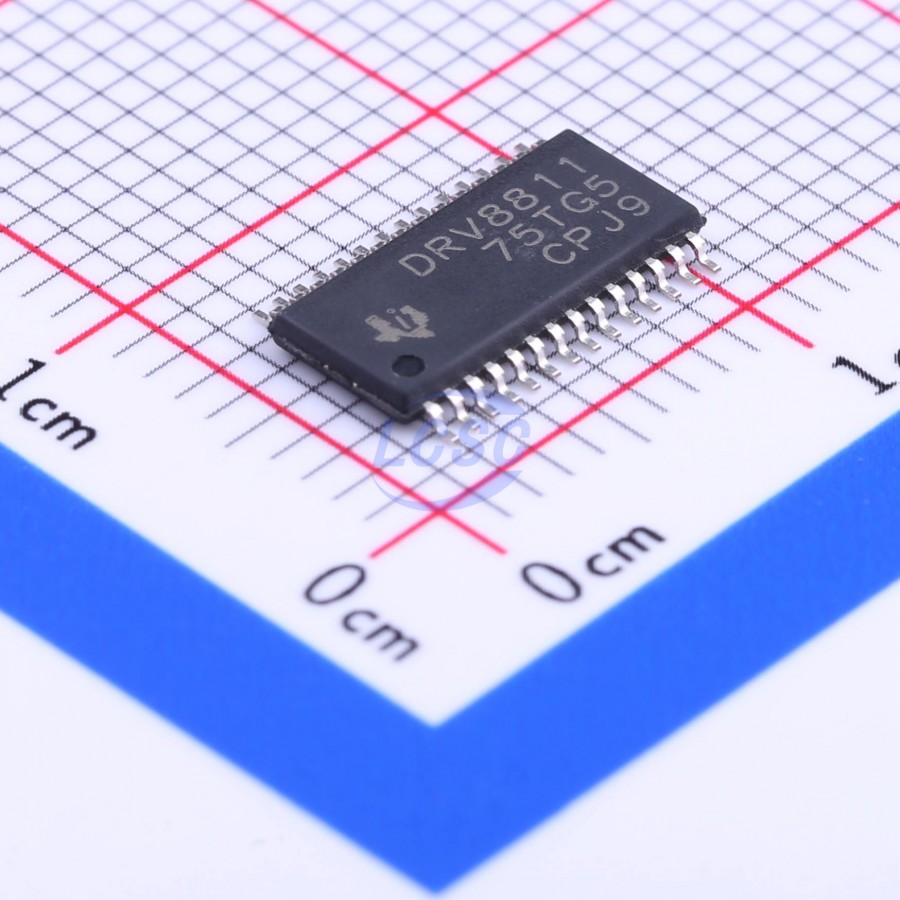

DRV8811PWPR
HTSSOP-28 Motor Drivers, Controllers RoHS
Stepper Motor Controller IC
- Manufacturer
- TI
- Manufacturer part #
- DRV8811PWPR
- Store part #
- C133174
- Package / case
- HTSSOP-28
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,768 in stock
#C133174
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹214.38 | ₹214.38 |
| 10+ | ₹181.37 | ₹1,813.70 |
| 30+ | ₹160.52 | ₹4,815.60 |
| 100+ | ₹139.44 | ₹13,944.00 |
| 500+ | ₹129.89 | ₹64,945.00 |
| 1,000+ | ₹125.76 | ₹1,25,760.00 |
1 × ₹214.38
₹214.38
excl. GST
₹252.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DRV8811PWPR
₹214.38 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Motor step-out prevention function;Overcurrent Protection;Over temperature protection;Under-voltage lockout;Dead-time / shoot-through protection
- Technology
- Yes
- Interface
- STEP/DIR
- Operating Temperature
- -40℃~+85℃
- Step Resolution
- 8
- Output Current
- 1.9A
- Control Voltage
- 3V~5.5V
- RDS(on)
- 1Ω
- Motor Drive Voltage(Vm)
- 8V~38V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.261 g
Overview
The DRV8811 device provides an integrated stepper motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, as well as microstepping indexer logic to control a stepper motor. The output driver block consists of N-channel power MOSFETs configured as full H-bridges to drive the motor windings. A simple STEP-and-DIR interface allows easy interfacing to controller circuits. Step mode pins allow for configuration of the motor in full-step, half-step, quarter-step, or eighth-step modes. Decay mode and PWM off-time are programmable. Internal shutdown functions are provided for overcurrent protection, short-circuit protection, undervoltage lockout and overtemperature. The DRV8811 device is packaged in a PowerPAD 28-pin HTSSOP package with thermal pad.
Applications
- Printers Scanners
- Office Automation Machines
- Gaming Machines
- Factory Automation Robotics
Key features
- Pulse Width Modulation (PWM) Microstepping Motor Driver
- Up to 1/8-Step Microstepping Indexer
- Step and Direction Control
- Programmable Mixed Decay, Blanking, and Off-Time
- Up to 1.9-A Current Per Winding
- Low 1.0-Ω (HS+LS) MOSFET RDS(on) (25°C)
- 8-V to 38-V Operating Supply Voltage Range
- Pin-to-Pin Compatible With the DRV8818
- Thermally Enhanced Surface Mount Package
- Protection Features: VM Undervoltage Lockout (UVLO) Overcurrent Protection (OCP) Thermal Shutdown (TSD)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DRV8811PWP#C1556868TI · HTSSOP-28-EP | TI | HTSSOP-28-EP | 52 | ₹616.89 · 52 in stock | View |
