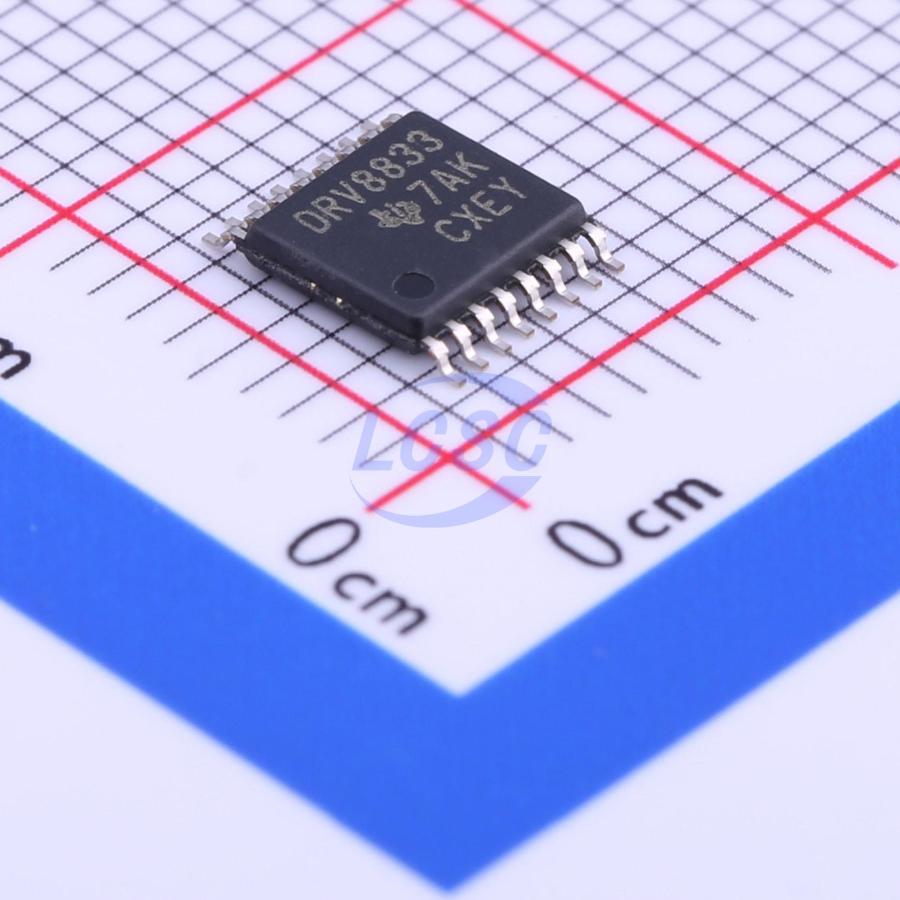

DRV8833PWPR
TSSOP-16-EP Motor Drivers, Controllers RoHS
Dual H-Bridge Current-Control Motor Driver
- Manufacturer
- TI
- Manufacturer part #
- DRV8833PWPR
- Store part #
- C50506
- Package / case
- TSSOP-16-EP
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,262 in stock
#C50506
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹277.71 | ₹277.71 |
| 10+ | ₹232.95 | ₹2,329.50 |
| 30+ | ₹204.92 | ₹6,147.60 |
| 100+ | ₹176.24 | ₹17,624.00 |
| 500+ | ₹163.19 | ₹81,595.00 |
| 1,000+ | ₹157.54 | ₹1,57,540.00 |
1 × ₹277.71
₹277.71
excl. GST
₹327.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DRV8833PWPR
₹277.71 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Dead-time / shoot-through protection
- Technology
- Yes
- Operating Temperature
- -40℃~+85℃
- Output Current
- 1.5A
- RDS(on)
- 360mΩ
- Motor Drive Voltage(Vm)
- 2.7V~10.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
Overview
The DRV8833 device provides a dual bridge motor driver solution for toys, printers, and other mechatronic applications. The device has two H-bridge drivers, and can drive two DC brush motors, a bipolar stepper motor, solenoids, or other inductive loads. The output driver block of each H-bridge consists of N-channel power MOSFETs configured as an Hbridge to drive the motor windings. Each H-bridge includes circuitry to regulate or limit the winding current. Internal shutdown functions with a fault output pin are provided for overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature. A low-power sleep mode is also provided. The DRV8833 is packaged in a 16-pin WQFN package with PowerPAD (Eco-friendly: RoHS & no Sb/Br).
Applications
- Battery-Powered Toys
- POS Printers
- Video Security Cameras
- Office Automation Machines
- Gaming Machines
- Robotics
Key features
- Dual-H-Bridge Current-Control Motor Driver Can Drive Two DC Motors or One Stepper Motor
- Low MOSFET ON-Resistance: HS + LS 360 mΩ
- Output Current (at VM = 5 V, 25°C) 1.5-A RMS, 2-A Peak per H-Bridge in RTY Package
- Outputs Can Be in Parallel for 3-A RMS, 4-A Peak
- Wide Power Supply Voltage Range: 2.7 V to 10.8 V
- PWM Winding Current Regulation and Current Limiting
- Thermally Enhanced Surface-Mount Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HTD9801TSH#C22391191Jiaxing Heroic Elec Tech · TSSOP-16 | Jiaxing Heroic Elec Tech | TSSOP-16 | 1,270 | ₹22.20 · 1,270 in stock | View |
 | HTD9810TPH#C22391192Jiaxing Heroic Elec Tech · ETSSOP-16 | Jiaxing Heroic Elec Tech | ETSSOP-16 | 45 | ₹23.72 · 45 in stock | View |
 | HT8835ARDZ#C2848981HTCSEMI · WSON-12-EP(2x3) | HTCSEMI | WSON-12-EP(2x3) | 1,357 | ₹287.92 · 1,357 in stock | View |
 | HT8833ARSZ#C2928790HTCSEMI · HTSSOP-16 | HTCSEMI | HTSSOP-16 | 908 | ₹99.32 · 908 in stock | View |
