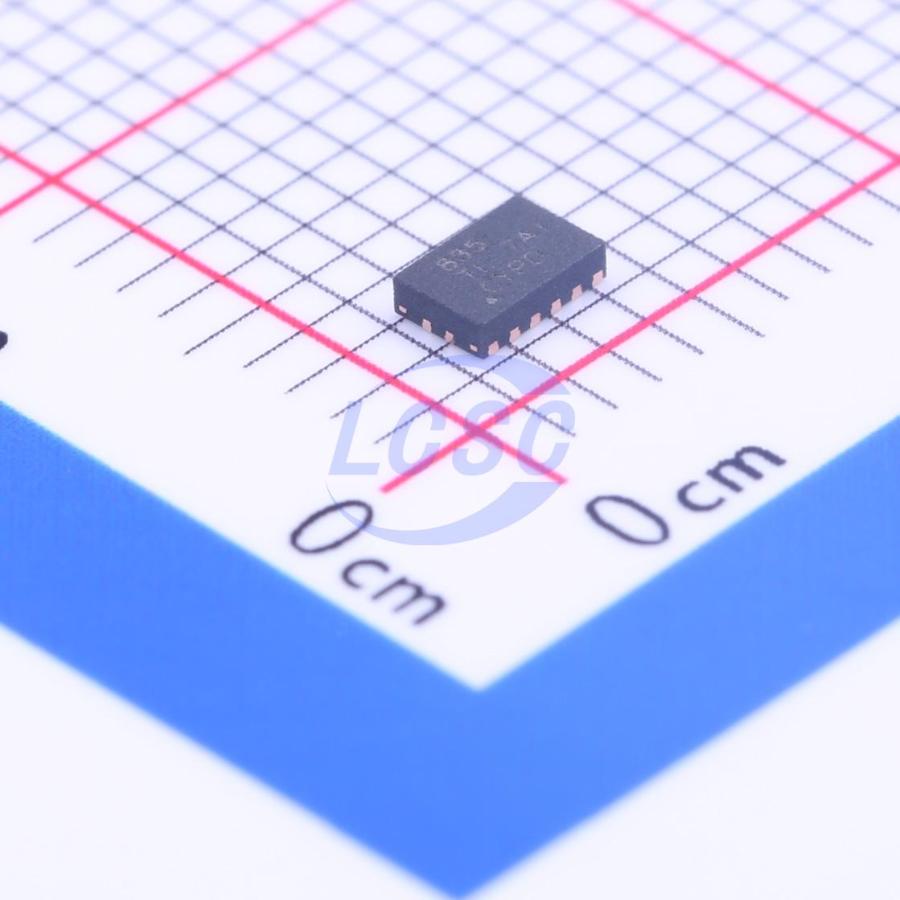

DRV8835DSSR
2V~7V WSON-12-EP(2x3) Motor Drivers, Controllers RoHS
Dual Low-Voltage H-Bridge IC
- Manufacturer
- TI
- Manufacturer part #
- DRV8835DSSR
- Store part #
- C129328
- Package / case
- WSON-12-EP(2x3)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,221 in stock
#C129328
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.98 | ₹116.98 |
| 10+ | ₹105.02 | ₹1,050.20 |
| 30+ | ₹98.50 | ₹2,955.00 |
| 100+ | ₹91.10 | ₹9,110.00 |
| 500+ | ₹87.85 | ₹43,925.00 |
| 1,000+ | ₹86.33 | ₹86,330.00 |
1 × ₹116.98
₹116.98
excl. GST
₹138.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DRV8835DSSR
₹116.98 for 1 + GST
Specifications
- Number of H-bridges
- 2
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 2V~7V
- Operating Temperature
- -40℃~+150℃
- Supply Current (Iq)
- 95nA
- Output Current
- 1.5A
- RDS(on)
- 305mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.066 g
Overview
The DRV8835 provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device has two H-bridge drivers, and drives two DC motors or one stepper motor, as well as other devices like solenoids. The output driver block for each consists of N-channel power MOSFETs configured as an H-bridge to drive the motor winding. An internal charge pump generates gate drive voltages. The DRV8835 supplies up to 1.5-A of output current per H-bridge and operates on a motor power supply voltage from 0 V to 11 V, and a device power supply voltage of 2 V to 7 V. PHASE/ENABLE and IN/IN interfaces are compatible with industry-standard devices. Internal shutdown functions are provided for overcurrent protection, short circuit protection, undervoltage lockout, and overtemperature. The DRV8835 is packaged in a tiny 12-pin WSON package (Eco-friendly: RoHS and no Sb/Br).
Applications
- Battery-Powered:
- Cameras
- DSLR Lenses
- Consumer Products
- Toys
- Robotics
- Medical Devices
Key features
- Dual-H-Bridge Motor Driver
- Capable of Driving Two DC Motors or One Stepper Motor
- Low-MOSFET ON-Resistance: HS + LS 305 mΩ
- 1.5-A Maximum Drive Current Per H-Bridge
- Configure Bridges Parallel for 3-A Drive Current
- Separate Motor and Logic-Supply Pins:
- 0-V to 11-V Motor-Operating Supply-Voltage
- 2-V to 7-V Logic Supply-Voltage
- Separate Logic and Motor Power Supply Pins
- Flexible PWM or PHASE/ENABLE Interface
- Low-Power Sleep Mode With 95-nA Maximum Supply Current
- Tiny 2.00-mm × 3.00-mm WSON Package
