MSKSEMIDatasheet (PDF)

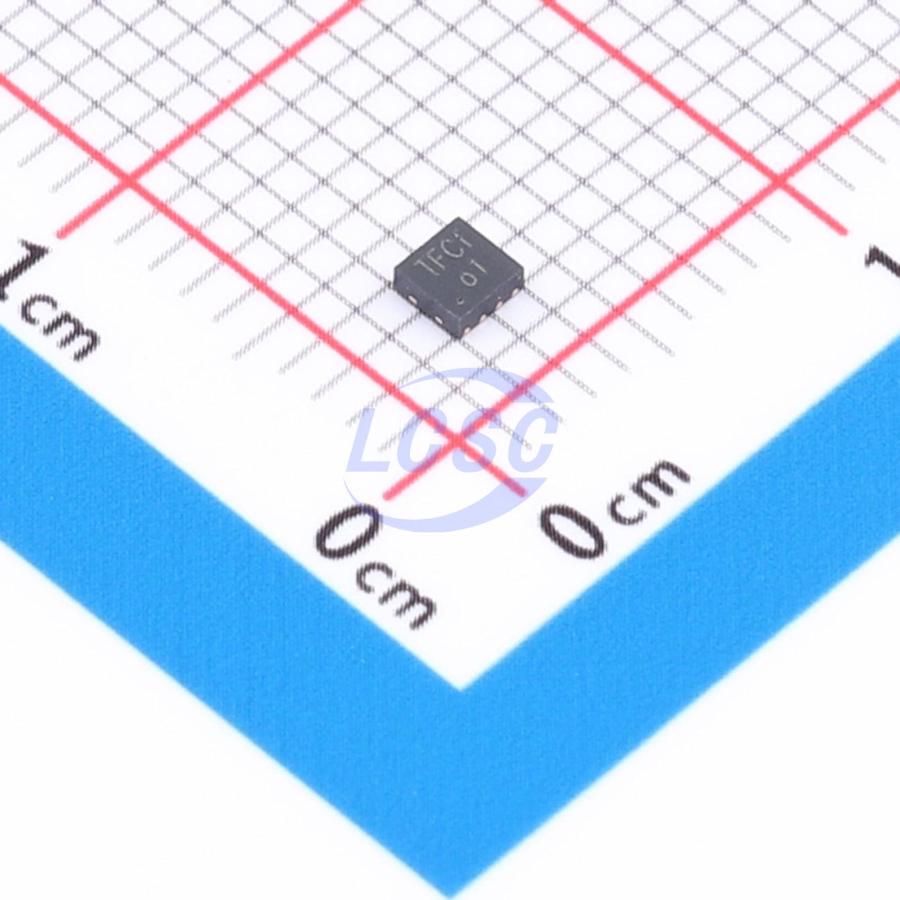

DRV8837DSGR-MS
1.8V~7V WSON-8-EP(2x2) Motor Drivers, Controllers
WSON-8-EP(2x2)RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- DRV8837DSGR-MS
- Store part #
- C50385422
- Package / case
- WSON-8-EP(2x2)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,590 in stock
#C50385422
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.75 | ₹83.75 |
| 50+ | ₹14.70 | ₹735.00 |
| 150+ | ₹13.83 | ₹2,074.50 |
| 500+ | ₹12.73 | ₹6,365.00 |
| 3,000+ | ₹12.24 | ₹36,720.00 |
| 6,000+ | ₹11.95 | ₹71,700.00 |
5 × ₹16.75
₹83.75
excl. GST
₹98.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DRV8837DSGR-MS
₹83.75 for 5 + GST
Specifications
- Features
- Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 1.8V~7V
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 17nA
- Peak Current
- 1.5A
- RDS(on)
- 650mΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
DRV8837DSGR-MS is a low-voltage DC motor driver IC. It integrates an H-bridge N-channel MOS switch with a typical on-resistance of 650mΩ (high-side + low-side), supporting an input voltage range of 1.8V to 11V. Peak current capability reaches 1.5A, with support for ultra-low power sleep mode; built-in UVLO, thermal shutdown, and overcurrent protection circuits. This device is suitable for cameras, toys, and consumer products.
Applications
- Cameras
- Toys
- Consumer products
Key features
- Input voltage range: Motor supply: 1.8V~11V; Control supply: 1.8V~7V
- LDMOS RDS(ON) (high-side + low-side) typical value 650mΩ
- Ultra-low power sleep mode current typical value 45nA
- VM sleep mode current typical value 17nA
- VCC sleep mode current
- Peak output current up to 1.5A
- Built-in UVLO protection
- Built-in over-temperature protection
- Built-in short-circuit protection
- Built-in overcurrent protection
- Built-in charge pump
- WSON-8-EP 2×2 package
