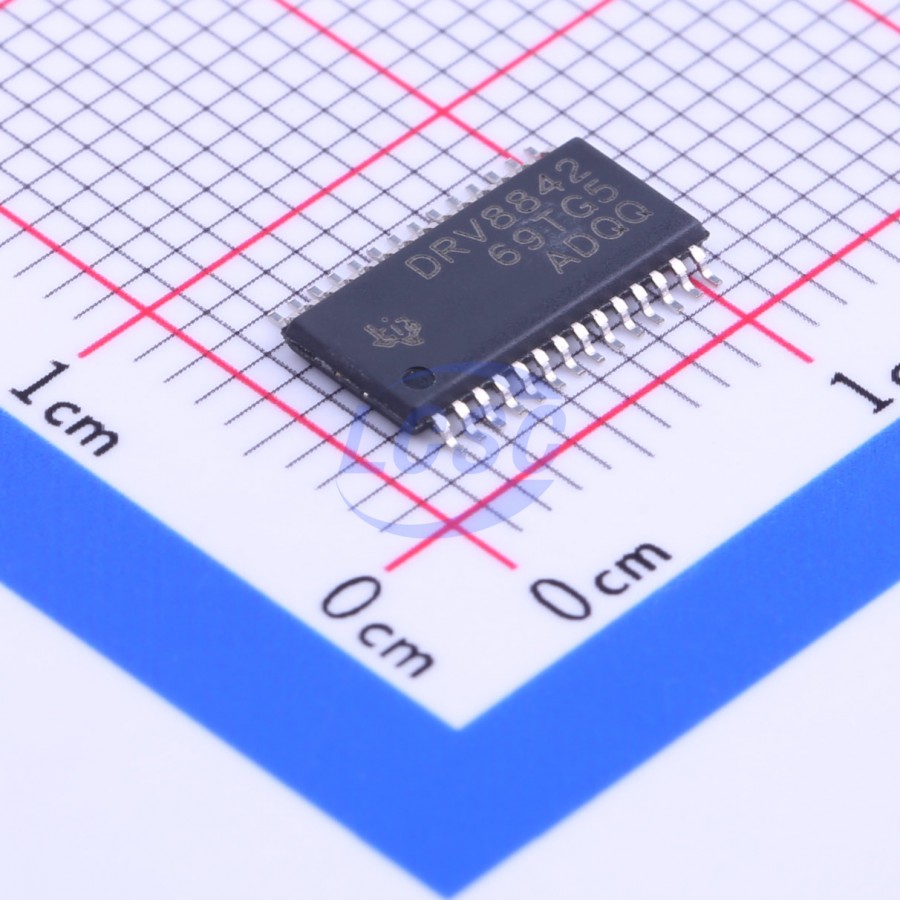

DRV8842PWPR
HTSSOP-28 Motor Drivers, Controllers RoHS
Single H-Bridge Current-Control Motor Driver
- Manufacturer
- TI
- Manufacturer part #
- DRV8842PWPR
- Store part #
- C181609
- Package / case
- HTSSOP-28
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
962 in stock
#C181609
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹429.96 | ₹429.96 |
| 10+ | ₹361.31 | ₹3,613.10 |
| 30+ | ₹318.29 | ₹9,548.70 |
| 100+ | ₹270.49 | ₹27,049.00 |
| 500+ | ₹250.51 | ₹1,25,255.00 |
| 1,000+ | ₹241.82 | ₹2,41,820.00 |
1 × ₹429.96
₹429.96
excl. GST
₹507.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DRV8842PWPR
₹429.96 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 1
- Features
- Overcurrent Protection;Over temperature protection;Under-voltage lockout;Built-in charge pump
- Technology
- Yes
- Operating Temperature
- -40℃~+85℃
- Output Current
- 5A
- Control Voltage
- 8.2V~45V
- RDS(on)
- 200mΩ
- Motor Drive Voltage(Vm)
- 8.2V~45V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.261 g
Overview
The DRV8842 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has one H-bridge driver, and is intended to drive one DC motor, one coil of a stepper motor, or other loads. The output driver block consists of N-channel power MOSFETs configured as an H-bridge. The DRV8842 can supply up to 5-A peak or 3.5-A RMS output current (with proper heatsinking at 24 V and 25°C). Separate inputs to independently control each half of the H-bridge are provided. Internal shutdown functions are provided for overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature. The DRV8842 is available in a 28-pin HTSSOP package with PowerPAD (Eco-friendly: RoHS & no Sb/Br).
Applications
- Printers
- Scanners
- Office Automation Machines
- Gaming Machines
- Factory Automation Robotics
Key features
- Single H-Bridge Current-Control Motor Driver
- 8.2-V to 45-V Operating Supply Voltage Range
- Five-Bit Winding Current Control Allows Up to 32 Current Levels
- Low MOSFET RDS(on) Typical 0.2 Ω (HS + LS)
- 5-A Maximum Drive Current at 24 V, 25°C
- Built-In 3.3-V Reference Output
- Industry-Standard PWM Control Interface
- Thermally Enhanced Surface Mount Package
- Protection Features:
- Overcurrent Protection (OCP)
- Thermal Shutdown (TSD)
- VM Undervoltage Lockout (UVLO)
- Fault Condition Indication Pin (nFAULT)
