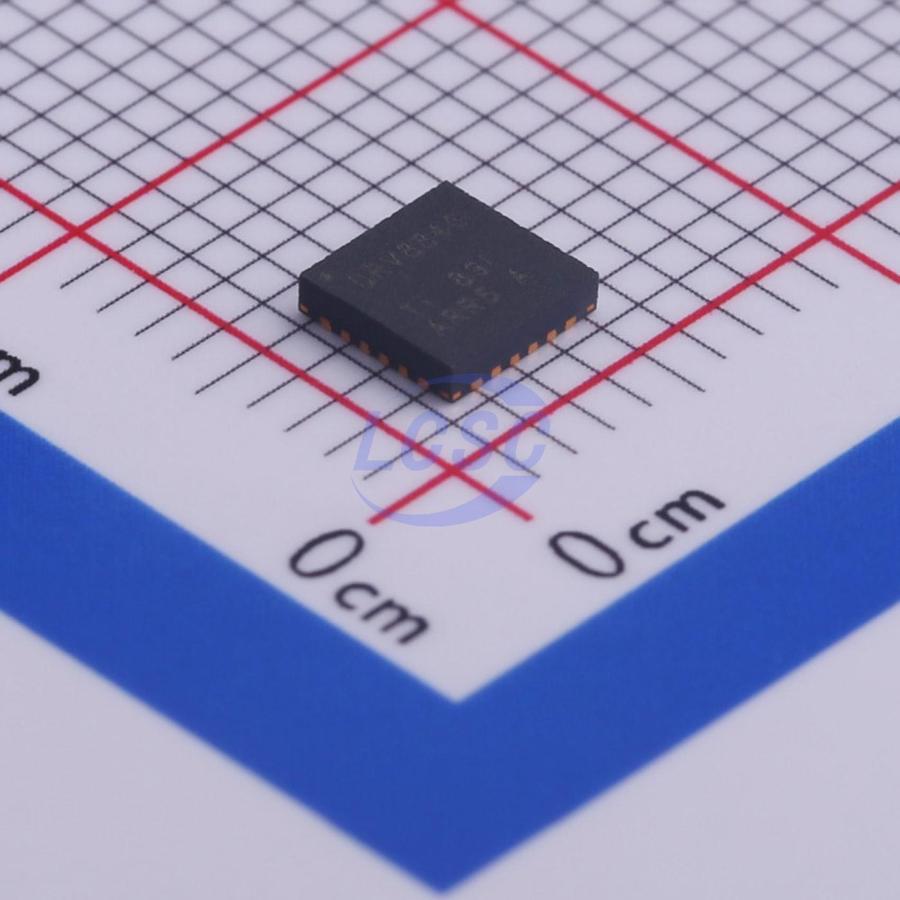

DRV8846RGER
VQFN-24-EP(4x4) Motor Drivers, Controllers RoHS
Dual H-Bridge Stepper Motor Driver
- Manufacturer
- TI
- Manufacturer part #
- DRV8846RGER
- Store part #
- C473340
- Package / case
- VQFN-24-EP(4x4)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,653 in stock
#C473340
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹326.32 | ₹326.32 |
| 10+ | ₹280.78 | ₹2,807.80 |
| 30+ | ₹252.16 | ₹7,564.80 |
| 100+ | ₹217.25 | ₹21,725.00 |
| 500+ | ₹204.03 | ₹1,02,015.00 |
| 1,000+ | ₹198.17 | ₹1,98,170.00 |
1 × ₹326.32
₹326.32
excl. GST
₹385.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DRV8846RGER
₹326.32 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Motor step-out prevention function;Overcurrent Protection;Over temperature protection;Under-voltage lockout;Dead-time / shoot-through protection
- Technology
- Yes
- Interface
- STEP/DIR
- Operating Temperature
- -40℃~+85℃
- Step Resolution
- 32
- Output Current
- 1.4A
- RDS(on)
- 350mΩ
- Motor Drive Voltage(Vm)
- 4V~18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.076 g
Overview
The DRV8846 provides a highly-integrated stepper motor driver for cameras, printers, projectors, and other automated equipment applications. The device has two H-bridges and a microstepping indexer and is intended to drive a bipolar stepper motor. The output block of each H-bridge driver consists of N-channel and P-channel power MOSFETs configured as full H-bridges to drive the motor windings. The DRV8846 is capable of driving up to 1.4-A full-scale output current (with proper heatsinking and TA = 25°C). A simple STEP/DIR interface allows easy interfacing to controller circuits. Pins allow configuration of the motor in full-step up to 1/32-step modes. Decay mode is configurable so that AutoTune, slow decay, fast decay, and mixed decay can be used. The PWM current chopping off-time can also be selected. A low-power sleep mode is provided which shuts down internal circuitry to achieve very-low quiescent current draw. This sleep mode can be set using a dedicated nSLEEP pin. Internal protection functions are provided for UVLO, overcurrent protection, short circuit protection, and overtemperature. Fault conditions are indicated via a nFAULT pin.
Applications
- Printers
- Scanners
- Video Security Cameras
- Projectors
Key features
- PWM Microstepping Motor Driver
- Built-In Microstepping Indexer Up to 1/32 Microstepping Step/Direction Control
- Multiple Decay Modes
- AutoTune™ Technology
- Mixed Decay
- Slow Decay
- Fast Decay
- Configurable Off-Time PWM Chopping
- 10-, 20-, or 30-μs Off-Time
- Adaptive Blanking Time for Smooth Stepping
- 4- to 18-V Operating Supply Voltage Range
- 1.4-A (Full Scale (Max Drive) Current per H Bridge (at 25°C)
- Low-Current Sleep Mode
- 3-Bit Torque DAC to Scale Motor Current
- Thermally Enhanced Surface Mount Package
- Protection Features
- VM Undervoltage Lockout (UVLO) Overcurrent Protection (OCP) Thermal Shutdown (TSD) Fault Condition Indication Pin (nFAULT)
