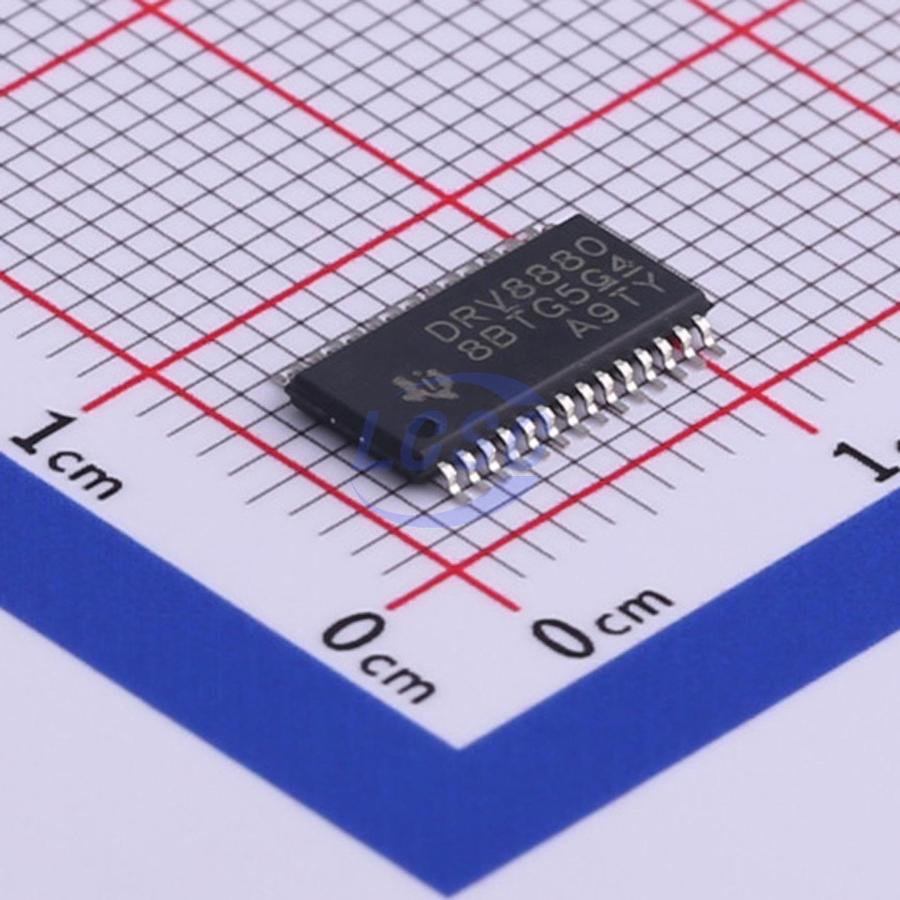

DRV8880PWPR
HTSSOP-28 Motor Drivers, Controllers RoHS
2-A Stepper Motor Driver With AutoTune
- Manufacturer
- TI
- Manufacturer part #
- DRV8880PWPR
- Store part #
- C473386
- Package / case
- HTSSOP-28
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,037 in stock
#C473386
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹361.80 | ₹361.80 |
| 10+ | ₹308.35 | ₹3,083.50 |
| 30+ | ₹274.89 | ₹8,246.70 |
| 100+ | ₹225.99 | ₹22,599.00 |
| 500+ | ₹210.57 | ₹1,05,285.00 |
| 1,000+ | ₹204.05 | ₹2,04,050.00 |
1 × ₹361.80
₹361.80
excl. GST
₹426.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DRV8880PWPR
₹361.80 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Motor step-out prevention function;Under-voltage lockout;Overcurrent Protection;Over temperature protection;Built-in charge pump
- Technology
- Yes
- Interface
- STEP/DIR
- Operating Temperature
- -40℃~+125℃
- Step Resolution
- 16
- Output Current
- 2A
- Control Voltage
- 0V~5.3V
- RDS(on)
- 330mΩ
- Motor Drive Voltage(Vm)
- 6.5V~45V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.19 g
Overview
The DRV8880 is a bipolar stepper motor driver for industrial applications. The device has two N-channel power MOSFET H-bridge drivers and a microstepping indexer. The DRV8880 is capable of driving 2.0 A fullscale current or 1.4-A rms current (with proper PCB ground plane for thermal dissipation and at 24 V and TA = 25 °C). AutoTune™ automatically tunes stepper motors for optimal current regulation performance and compensates for motor variation and aging effects. Additionally slow, fast, and mixed decay modes are available. The STEP/DIR pins provide a simple control interface. The device can be configured in full-step up to 1/16-step modes. A low-power sleep mode is provided for very low quiescent current standby using a dedicated nSLEEP pin. Internal protection functions are provided for undervoltage, charge pump faults, overcurrent, shortcircuits, and overtemperature. Fault conditions are indicated by a nFAULT pin.
Applications
- Automatic Teller and Money Handling Machines
- Video Security Cameras
- Multi-Function Printers and Document Scanners
- 3D Printers
- Office Automation Machines
- Factory Automation and Robotics
Key features
- Microstepping Stepper Motor Driver
- STEP/DIR Interface Up to 1/16 Microstepping Indexer Non-Circular and Standard 1/2 Step Modes
- 6.5- to 45-V Operating Supply Voltage Range
- Multiple Decay Modes to Support Any Motor
- AutoTune™ Mixed Decay Slow Decay Fast Decay
- Adaptive Blanking Time for Smooth Stepping
- VM Undervoltage Lockout (UVLO2)
- Logic Undervoltage (UVLO1)
- Charge Pump Undervoltage (CPUV)
- Overcurrent Protection (OCP)
- Latched OCP Mode
- Retry OCP Mode
- Thermal Shutdown (TSD)
- Fault Condition Indication Pin (nFAULT)
