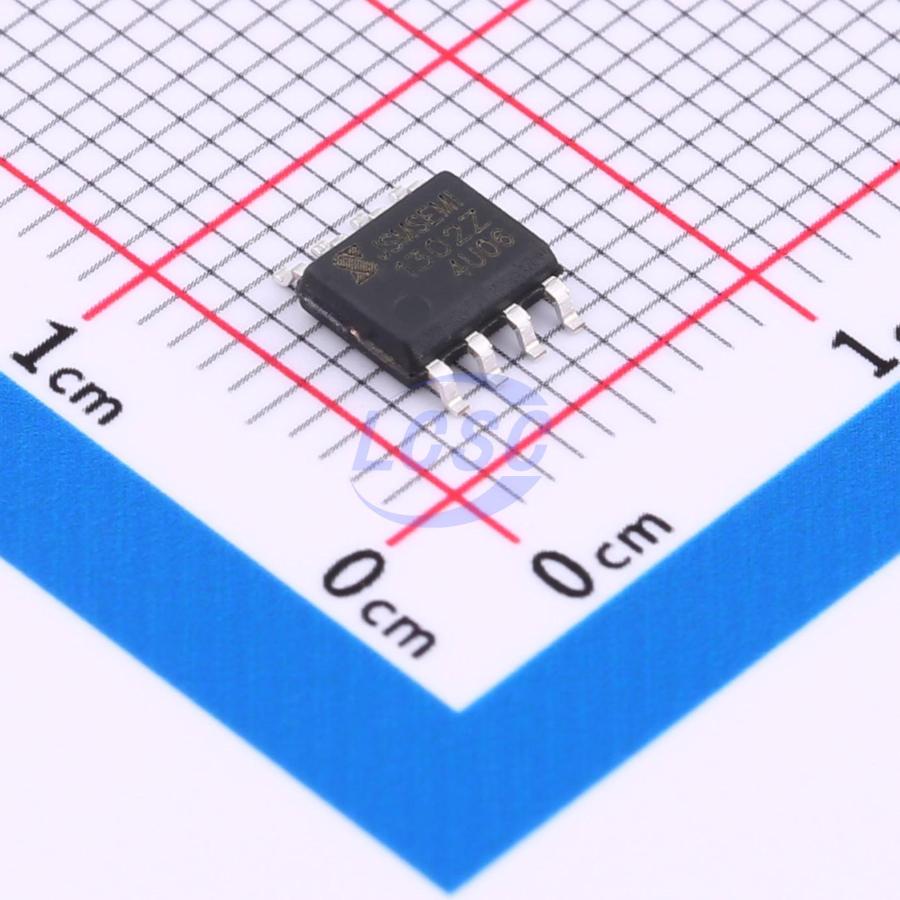

DS1302Z

The DS1302 trickle-charge timekeeping chip integrates real-time clock/calendar functionality with 31 bytes of static RAM, communicating with a microprocessor via a simple serial interface. The RTC/calendar provides seconds, minutes, hours, day of week, date, month, and year information, with automatic adjustment for months fewer than 31 days and leap-year correction. It supports 12-hour or 24-hour format with an AM/PM indicator. The device also features dual power supply pins (primary and backup), a programmable trickle charger VCC1, and an additional 7-byte scratchpad register.

Applications

• Telephone
• Fax
• Portable instruments
• Instrumentation

Key features

• Real-time clock computing year, month, day, hour, minute, second, and day-of-week through year 2100, with leap year compensation
• 31 × 8-bit general-purpose scratchpad RAM
• Serial I/O interface minimizing pin count
• Wide operating voltage range: 2.0V to 5.5V
• Operating current below 300nA at 2.0V
• Single-byte or multi-byte (burst mode) data transfer for clock/RAM read and write
• Available in DIP-8 through-hole or SOP-8 SMD package
• Simple 3-wire interface
• TTL-compatible (VCC = 5V)
• Operating temperature range: -40℃ ~ +85℃
• Compatible with DS1202, DS1302
