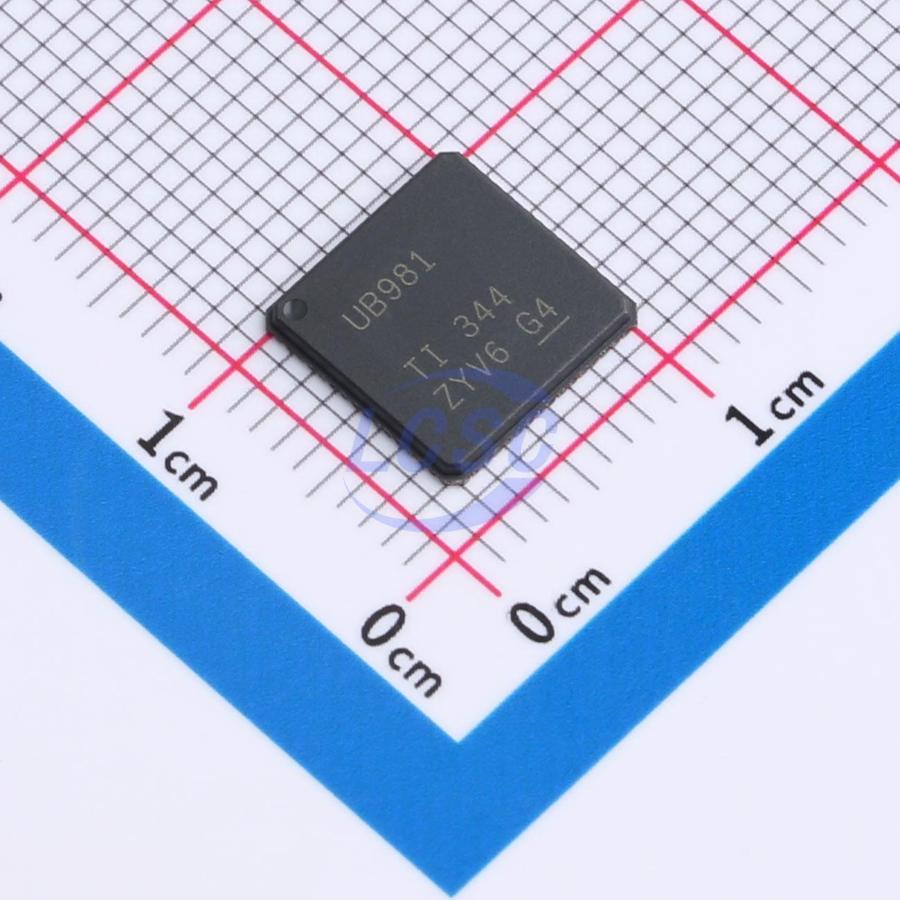

DS90UB981RTDRQ1

DS90UB981-Q1 is a MIPI DSI to FPD-Link III/IV bridge device. When used with an FPD-Link IV deserializer, this chipset provides a high-speed serial interface over low-cost 50Ω coaxial or STP cables. The DS90UB981-Q1 is a D-PHY v1.2-compliant device that serializes MIPI DSI inputs supporting video resolutions up to 4K (30-bit color depth). The FPD-Link IV interface supports video and audio data transmission along with full-duplex control, including I2C and GPIO data transfer over single or dual channels. Consolidating video data and control signals across two FPD-Link IV channels reduces interconnect size and weight while simplifying system design. EMI is minimized through the use of low-voltage differential signaling, data scrambling, spread spectrum clock generation (SSCG), and randomization techniques. In backward-compatible mode, the device supports resolutions up to 720p and 1080p (24-bit color depth) over single/dual links. In ADAS-compatible mode, the device interoperates with 936, 95x, 96x, and 97x deserializers, supporting resolutions up to 8MP+/40fps.

Applications

• Automotive Displays
• Central Information Display (CID)
• Rear Seat Entertainment (RSE)
• Digital Instrument Cluster
• Head Unit and HMI Module
• Head-Up Display (HUD)
• Rear and Side View Mirror Displays

Key features

• Single-port or dual-port MIPI DSI receiver
• Compliant with D-PHY v1.2 and DSI v1.3.1
• Supports packed 16/18/24/30-bit RGB and 16-bit YCbCr
• Supports loosely packed 18-bit RGB and 20-bit 4:2:2
• 1 clock lane and 1–4 configurable data lanes per D-PHY port
• Up to 2.5Gbps per lane with skew calibration
• Supports data lane swap and polarity inversion
• Supports burst and non-burst modes
• Super-frame de-packing capability
• Supports 4K video resolution at 60Hz
• FPD-Link IV interface
• Supports 10.8/6.75/3.375Gbps per channel; up to 21.6Gbps dual-channel
• Supports coaxial cable/STP interconnect
• Supports port splitting for Y-cable interface
• Ultra-low latency control channel
• Two I2C interfaces up to 1MHz (local bus access up to 3.4MHz)
• High-speed GPIO
• Backward compatibility
• 720P 92x and 1080P/2K 94x product families
• ADAS 936, 954, 960, 962, 9702, 9722 deserializers
• Safety and diagnostic features
• Voltage and temperature monitoring
• Line fault detection
• Built-in self-test (BIST) and pattern generation
• CRC and error diagnostics
• Unique ID for anti-counterfeiting
• ECC for control bits
• Advanced link robustness and EMC control
• Data scrambling
• Spread spectrum clock generation (SSCG)
• Low-power operation
• Dual supply: 1.8V and 1.1V
• AEC-Q100 qualified for automotive applications
• AEC-Q100 Grade 2: −40℃ ~ +105℃
• 64-pin QFN with wettable flanks, 9mm × 9mm
• Compliant with ISO 10605 and IEC 61000-4-2 ESD standards
