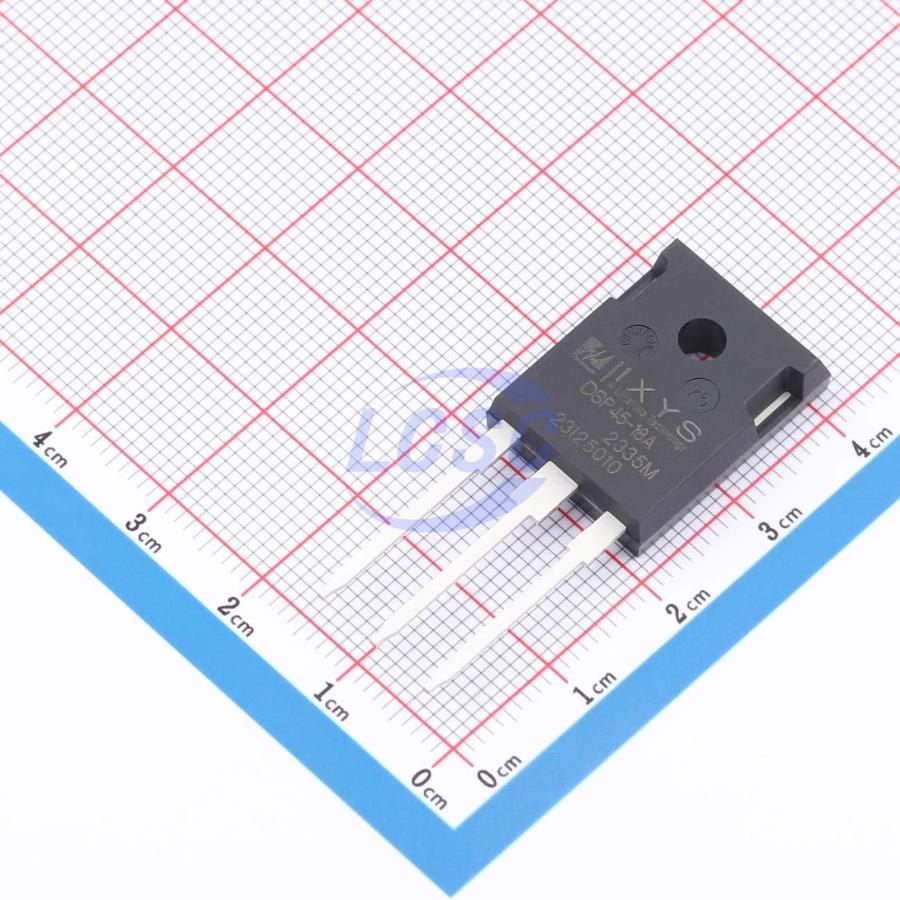

DSP45-18A
1.8kV 1 Pair Series Connection 1.26V@45A 45A TO-247 Single Diodes RoHS
TO-247ROHS3 CompliantActive
- Manufacturer
- Littelfuse/IXYS
- Manufacturer part #
- DSP45-18A
- Store part #
- C17296975
- Package / case
- TO-247
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C17296975
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,509.69 | ₹1,509.69 |
| 10+ | ₹1,479.76 | ₹14,797.60 |
| 30+ | ₹1,459.60 | ₹43,788.00 |
| 90+ | ₹1,439.65 | ₹1,29,568.50 |
1 × ₹1,509.69
₹1,509.69
excl. GST
₹1,781.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
DSP45-18A
₹1,509.69 for 1 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 1.8kV
- Operating Junction Temperature Range
- -40℃~+175℃
- Diode Configuration
- 1 Pair Series Connection
- Voltage - Forward(Vf@If)
- 1.26V@45A
- Reverse Leakage Current (Ir)
- 40uA@1800V
- Non-Repetitive Peak Forward Surge Current
- 480A
- Current - Rectified
- 45A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 10.49 g
Overview
Standard rectifier, repetitive peak reverse voltage 2×1800V, average forward current 45A, forward voltage 1.23V, half bridge, model DSP45-18A, anode/cathode on back, TO-247 package, industry standard outline, epoxy material compliant with UL 94V-0.
Applications
- Main rectifier diode
- Single-phase and three-phase bridge configurations
Key features
- Planar passivated die
- Ultra-low leakage current
- Ultra-low forward voltage drop
- Enhanced thermal performance
