LittelfuseDatasheet (PDF)

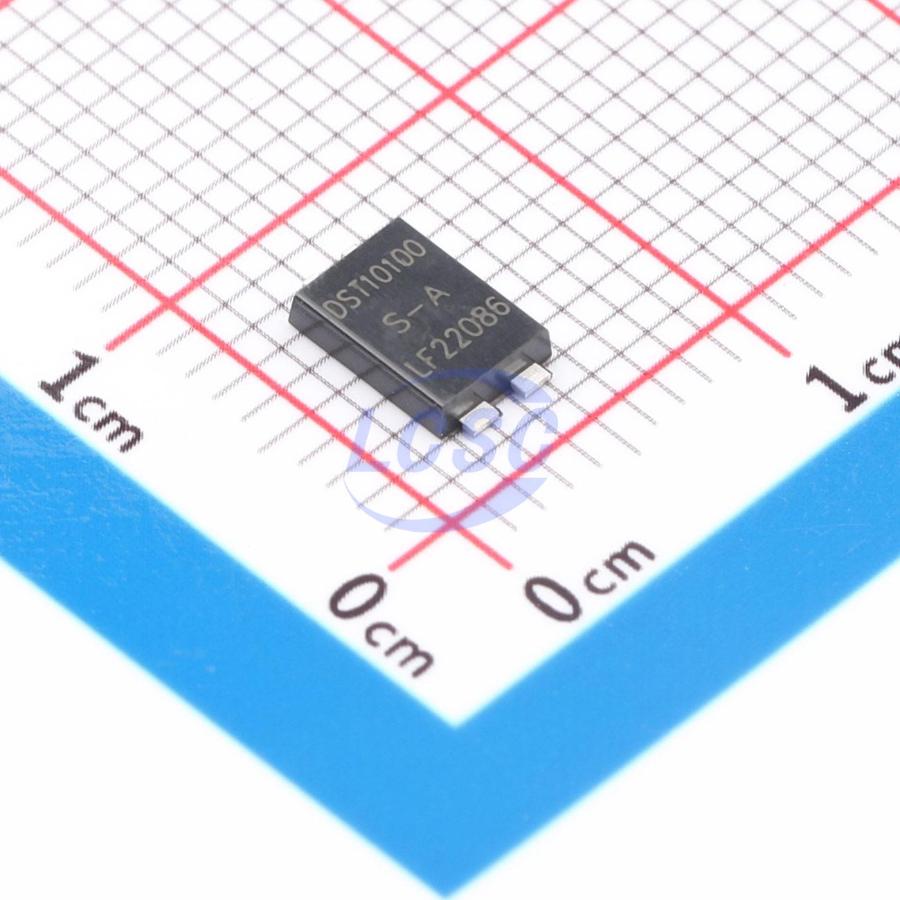

DST10100S-A
1 Independent 100V 700mV@10A 10A TO-277B Single Diodes RoHS
TO-277BROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- DST10100S-A
- Store part #
- C6539684
- Package / case
- TO-277B
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C6539684
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹296.84 | ₹296.84 |
| 10+ | ₹258.58 | ₹2,585.80 |
| 30+ | ₹234.71 | ₹7,041.30 |
| 100+ | ₹210.21 | ₹21,021.00 |
| 500+ | ₹199.26 | ₹99,630.00 |
| 1,000+ | ₹194.52 | ₹1,94,520.00 |
1 × ₹296.84
₹296.84
excl. GST
₹350.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DST10100S-A
₹296.84 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 700mV@10A
- Reverse Leakage Current (Ir)
- 250uA@100V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 10A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
Littelfuse DST series ultra-low VF Schottky barrier rectifiers are designed to meet the general requirements of automotive applications by offering high-temperature, low-leakage, and lower VF characteristics. They are suitable for high-frequency switch-mode power supplies, freewheeling diodes, and polarity protection diodes.
Applications
- Switch-mode power supplies
- DC/DC converters
- Freewheeling diodes
- Polarity protection diodes
Key features
- Automotive-grade AEC-Q101 qualified for high-reliability applications
- Ultra-low forward voltage drop
- High-frequency operation
- Moisture Sensitivity Level (MSL): Level 1 - Unlimited
- High junction temperature capability
- Trench MOS Schottky technology
- TO-277B single-chip package
- Lead-free E3 denotes second-level interconnect lead-free with Sn terminal finish (IPC/JEDEC J-STD-609A.01)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SB15100L#C54950738Slkor · TO-277 | Slkor | TO-277 | 4,540 | ₹38.63 · 4,540 in stock | View |
 | SB10100L#C2929650DIYI Elec Tech · TO-277B-3 | DIYI Elec Tech | TO-277B-3 | 865 | ₹16.41 · 865 in stock | View |
 | V12P10-M3/86A#C413447VISHAY · TO-277A | VISHAY | TO-277A | 1,729 | ₹70.24 · 1,729 in stock | View |
| SVT10100UB_R2_00001#C6241494PANJIT · TO-277B | PANJIT | TO-277B | 4,730 | ₹74.47 · 4,730 in stock | View | |
 | NRVTS10100PFST3G-HXY#C53262814HXY MOSFET · TO-277 | HXY MOSFET | TO-277 | 197 | ₹73.72 · 197 in stock | View |
