LittelfuseDatasheet (PDF)

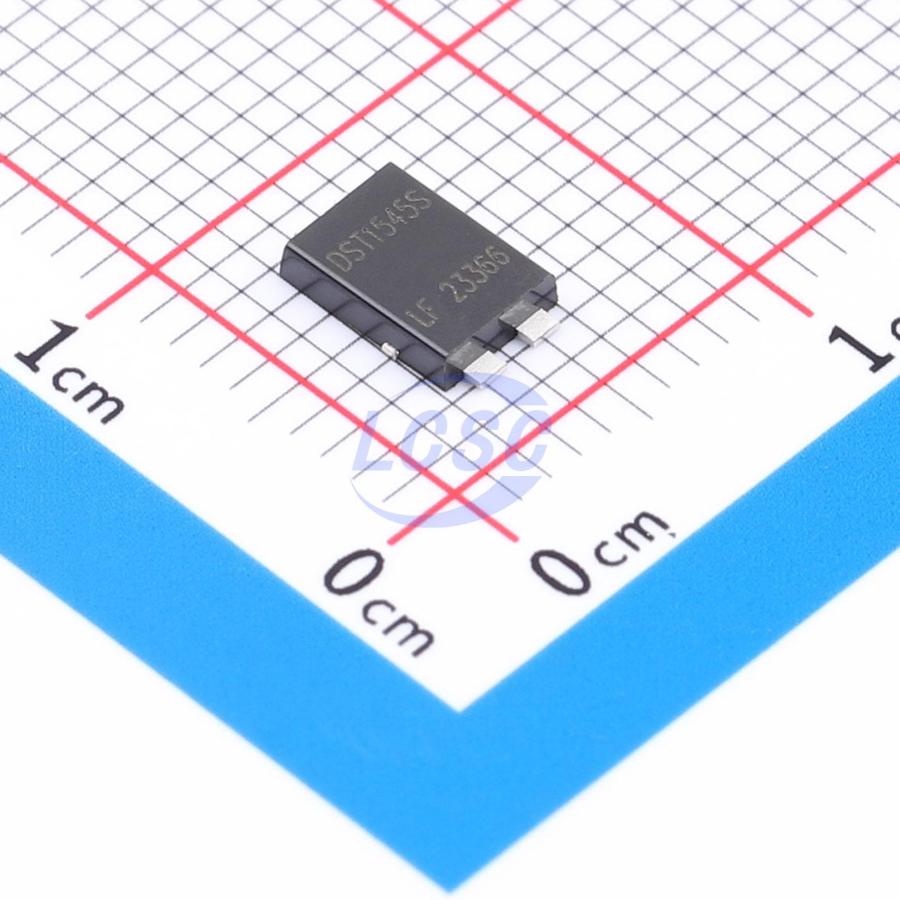

DST1545S
1 Independent 45V 580mV@15A 15A TO-277B Single Diodes RoHS
TO-277BROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- DST1545S
- Store part #
- C3759357
- Package / case
- TO-277B
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
63 in stock
#C3759357
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹210.94 | ₹210.94 |
| 10+ | ₹206.15 | ₹2,061.50 |
| 30+ | ₹203.11 | ₹6,093.30 |
| 100+ | ₹199.84 | ₹19,984.00 |
1 × ₹210.94
₹210.94
excl. GST
₹248.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DST1545S
₹210.94 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 580mV@15A
- Reverse Leakage Current (Ir)
- 1.5mA@45V
- Non-Repetitive Peak Forward Surge Current
- 200A
- Current - Rectified
- 15A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.156 g
Overview
Littelfuse DST Series ultra-low forward voltage (VF) Schottky barrier rectifiers are designed to meet the general requirements of commercial and industrial applications by offering high-temperature, low-leakage, and lower forward voltage (VF) performance. Suitable for high-frequency switch-mode power supplies, freewheeling diodes, and polarity protection diodes.
Applications
- Switching mode power supplies
- DC/DC converters
- Freewheeling diodes
- Polarity protection diodes
Key features
- Ultra-low forward voltage drop
- High-frequency operation
- MSL: Level 1 - Unlimited
- High junction temperature capability
- Trench MOS Schottky technology
- TO-277B single-chip package
- Lead-free E3 indicates second-level interconnect lead-free, terminal surface finish material is Sn (IPC/JEDEC J-STD-609A.01)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | V15P45S-M3/86A#C7374710VISHAY · TO-277A | VISHAY | TO-277A | 110 | ₹325.09 · 110 in stock | View |
 | SB1560L#C51912400GOODWORK · TO-277 | GOODWORK | TO-277 | 3,035 | ₹52.11 · 3,035 in stock | View |
 | V15PN50-M3/86A#C142598VISHAY · TO-277B | VISHAY | TO-277B | 6,214 | ₹128.21 · 6,214 in stock | View |
 | SB2045L#C5449127MSKSEMI · TO-277 | MSKSEMI | TO-277 | 5,710 | ₹36.74 · 5,710 in stock | View |
 | SB1545L#C22369049Wild Goose · TO-277 | Wild Goose | TO-277 | 3,880 | ₹22.95 · 3,880 in stock | View |
