LittelfuseDatasheet (PDF)

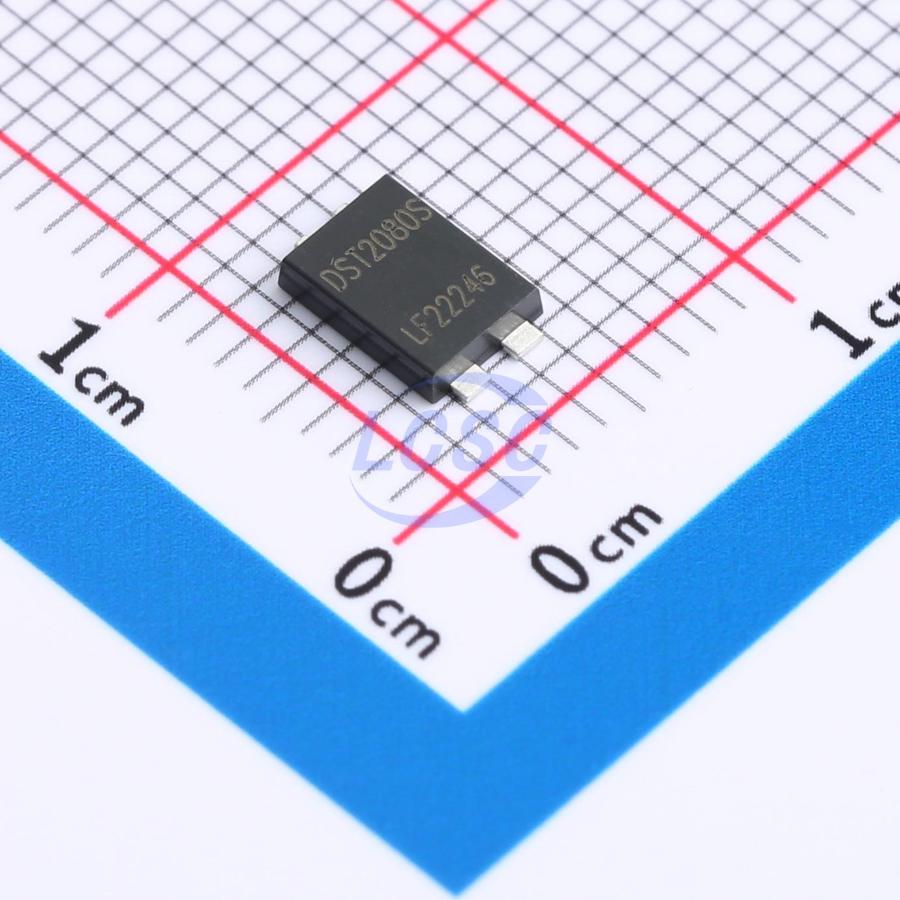

DST2080S
Diode 80V 20A Surface Mount TO-277B
TO-277BROHS3 CompliantActive
DIODE SCHOTTKY 80V TO-277B
- Manufacturer
- Littelfuse
- Manufacturer part #
- DST2080S
- Store part #
- C3757615
- Package / case
- TO-277B
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
67 in stock
#C3757615
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹189.49 | ₹189.49 |
| 10+ | ₹157.33 | ₹1,573.30 |
| 30+ | ₹139.72 | ₹4,191.60 |
| 100+ | ₹119.96 | ₹11,996.00 |
| 500+ | ₹111.04 | ₹55,520.00 |
| 1,000+ | ₹107.14 | ₹1,07,140.00 |
1 × ₹189.49
₹189.49
excl. GST
₹223.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DST2080S
₹189.49 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 80V
- Voltage - Forward(Vf@If)
- 700mV@20A
- Reverse Leakage Current (Ir)
- 300uA@80V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 20A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.203 g
Overview
Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of commercial and industry applications by providing high temperature, low leakage and lower VF products. It is suitable for high frequency switching mode power supply, free- wheeling diodes and polarity protection diodes.
Applications
- Switching mode power supply
- DC/DC converters
Key features
- Ultra low forward voltage drop
- High frequency operation
- MSL: Level 1, unlimited
- High junction temperature capability
- Trench MOS Schottky technology
- Single die in TO-277B Package
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD-609A.01)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ST20100L#C22365178FUXINSEMI · TO-277 | FUXINSEMI | TO-277 | 5,114 | ₹64.62 · 5,114 in stock | View |
 | FSV20100V#C895438onsemi · TO-277-3 | onsemi | TO-277-3 | 4,535 | ₹134.24 · 4,535 in stock | View |
 | NST2080L#C50338742BORN · TO-277B | BORN | TO-277B | 540 | ₹39.77 · 540 in stock | View |
 | NST20100L#C50338738BORN · TO-277B | BORN | TO-277B | 4,850 | ₹40.25 · 4,850 in stock | View |
 | SP20100L#C53329064R+O · TO-277 | R+O | TO-277 | 3,475 | ₹43.08 · 3,475 in stock | View |
