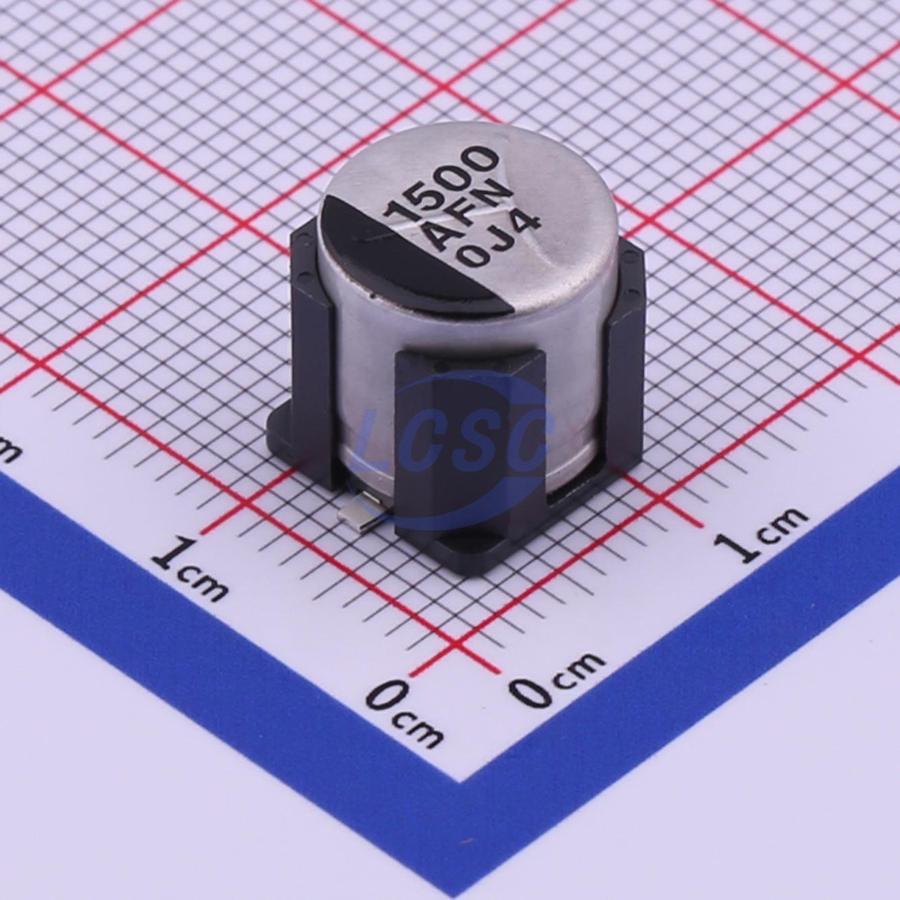

PANASONIC

EEEFN1A152UV

1500uF ±20% 10V Aluminum Electrolytic Capacitors 2000hrs@105℃

SMD,D10xL10.2mmROHS3 CompliantActive

CAP ALUM 1500uF ±20% 10V SMD

Manufacturer: PANASONIC
Manufacturer part #: EEEFN1A152UV
Store part #: C497584
Package / case: SMD,D10xL10.2mm
Category: Aluminum Electrolytic Capacitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

350 in stock

#C497584

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹127.62	₹127.62
10+	₹101.46	₹1,014.60
30+	₹88.59	₹2,657.70
100+	₹75.72	₹7,572.00
500+	₹68.00	₹34,000.00
1,000+	₹63.93	₹63,930.00

Quantity (min 1)

1 × ₹127.62

₹127.62

excl. GST

₹150.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

EEEFN1A152UV

₹127.62 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Tolerance: ±20%
Voltage Rating: 10V
Lifetime: 2000hrs@105℃
Capacitance: 1500uF
Ripple Current: 595mA@120Hz
Polarity type: Polarized
Operating Temperature: -55℃~+105℃
Equivalent Series Resistance(ESR): 80mΩ@100kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.91 g

Overview

SMD aluminum electrolytic capacitors. FN series 6.3V to 50V supports high-temperature lead-free reflow soldering; 63V to 100V supports standard lead-free reflow soldering.

Key features

Durability: 2000 hours at 105°C
Wide voltage range: 6.3V to 100V
High capacitance: 20% to 80% higher than FK series
Vibration-proof products available on request (diameter ≥6.3mm, guaranteed 30G)
AEC-Q200 compliant
RoHS compliant
