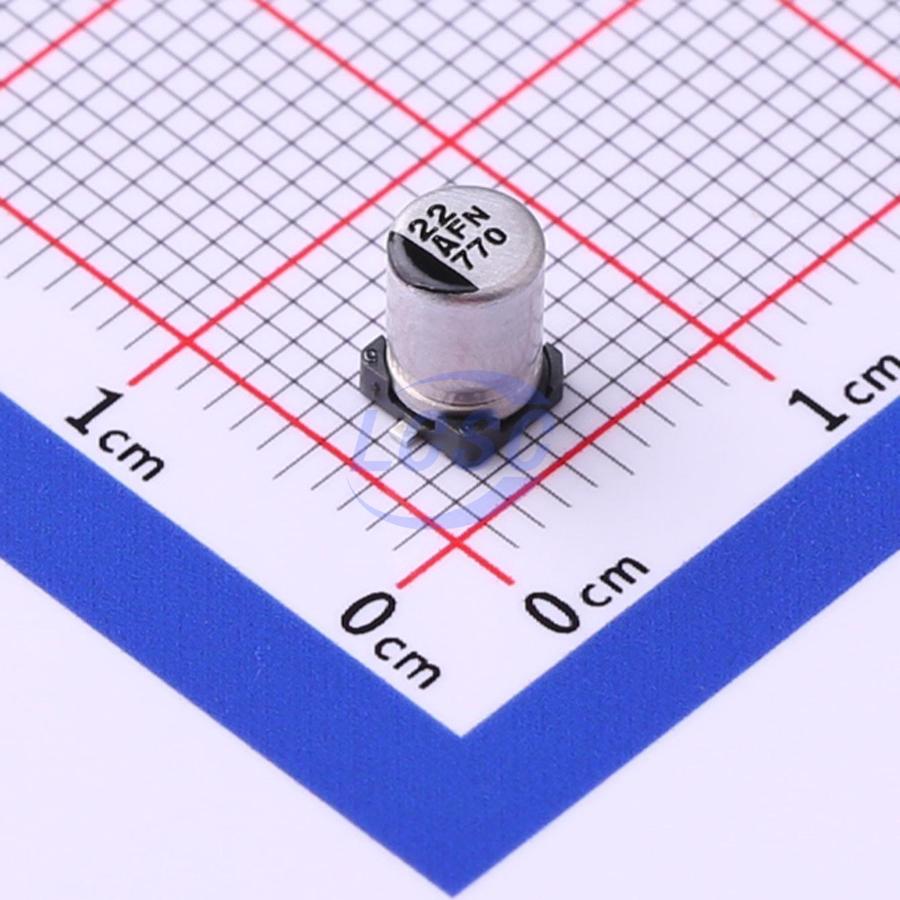

PANASONIC

EEEFN1A220R

22uF ±20% 10V Aluminum Electrolytic Capacitors 2000hrs@105℃

SMD,D4xL5.8mmROHS3 CompliantActive

CAP ALUM 22uF ±20% 10V SMD

Manufacturer: PANASONIC
Manufacturer part #: EEEFN1A220R
Store part #: C494787
Package / case: SMD,D4xL5.8mm
Category: Aluminum Electrolytic Capacitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,150 in stock

#C494787

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹20.40	₹102.00
50+	₹16.33	₹816.50
150+	₹14.29	₹2,143.50
500+	₹12.75	₹6,375.00
2,000+	₹11.52	₹23,040.00
4,000+	₹10.91	₹43,640.00

Quantity (min 5, multiples of 5)

5 × ₹20.40

₹102.00

excl. GST

₹120.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

EEEFN1A220R

₹102.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Tolerance: ±20%
Voltage Rating: 10V
Lifetime: 2000hrs@105℃
Capacitance: 22uF
Ripple Current: 90mA@100kHz
Polarity type: Polarized
Operating Temperature: -55℃~+105℃
Equivalent Series Resistance(ESR): 1.35Ω@100kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.312 g

Overview

SMD aluminum electrolytic capacitors. FN series 6.3V to 50V supports high-temperature lead-free reflow soldering; 63V to 100V supports standard lead-free reflow soldering.

Key features

Durability: 2000 hours at 105°C
Wide voltage range: 6.3V to 100V
High capacitance: 20% to 80% higher than FK series
Vibration-proof products available on request (diameter ≥6.3mm, guaranteed 30G)
AEC-Q200 compliant
RoHS compliant
