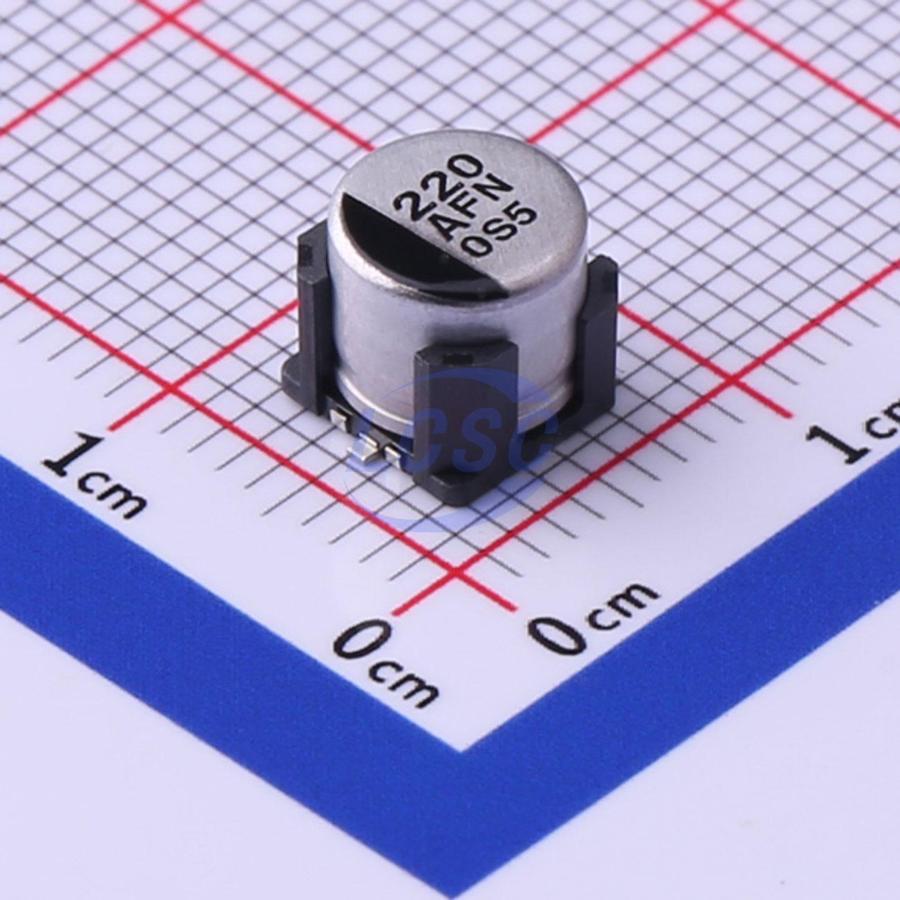

PANASONIC

EEEFN1A221UV

220uF ±20% 10V Aluminum Electrolytic Capacitors 2000hrs@105℃

SMD,D6.3xL5.8mmROHS3 CompliantActive

CAP ALUM 220uF ±20% 10V SMD

Manufacturer: PANASONIC
Manufacturer part #: EEEFN1A221UV
Store part #: C497579
Package / case: SMD,D6.3xL5.8mm
Category: Aluminum Electrolytic Capacitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

114 in stock

#C497579

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹82.75	₹82.75
10+	₹65.86	₹658.60
30+	₹57.42	₹1,722.60
100+	₹48.98	₹4,898.00
500+	₹44.12	₹22,060.00
1,000+	₹41.38	₹41,380.00

Quantity (min 1)

1 × ₹82.75

₹82.75

excl. GST

₹97.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

EEEFN1A221UV

₹82.75 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Tolerance: ±20%
Voltage Rating: 10V
Lifetime: 2000hrs@105℃
Capacitance: 220uF
Ripple Current: 240mA@100kHz
Polarity type: Polarized
Operating Temperature: -55℃~+105℃
Equivalent Series Resistance(ESR): 360mΩ@100kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.703 g

Overview

SMD aluminum electrolytic capacitors. FN series 6.3V to 50V supports high-temperature lead-free reflow soldering; 63V to 100V supports standard lead-free reflow soldering.

Key features

Durability: 2000 hours at 105°C
Wide voltage range: 6.3V to 100V
High capacitance: 20% to 80% higher than FK series
Vibration-proof products available on request (diameter ≥6.3mm, guaranteed 30G)
AEC-Q200 compliant
RoHS compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
UUD1A221MCL1GS#C445275Nichicon · SMD,D6.3xL7.7mm	Nichicon	SMD,D6.3xL7.7mm	255	₹29.75 · 255 in stock	View
UCD1A221MCL1GS#C2163153Nichicon · SMD,D6.3xL7.7mm	Nichicon	SMD,D6.3xL7.7mm	95	₹28.44 · 95 in stock	View
UCD1A221MCL6GS#C445480Nichicon · SMD,D8xL6.2mm	Nichicon	SMD,D8xL6.2mm	On request	₹37.92 · 0 in stock	View
EEEFP1A221AP#C401744PANASONIC · SMD,D8xL6.2mm	PANASONIC	SMD,D8xL6.2mm	550	₹59.46 · 550 in stock	View
EEEFPA221XAP#C401756PANASONIC · SMD,D6.3xL7.7mm	PANASONIC	SMD,D6.3xL7.7mm	10	₹35.89 · 10 in stock	View
