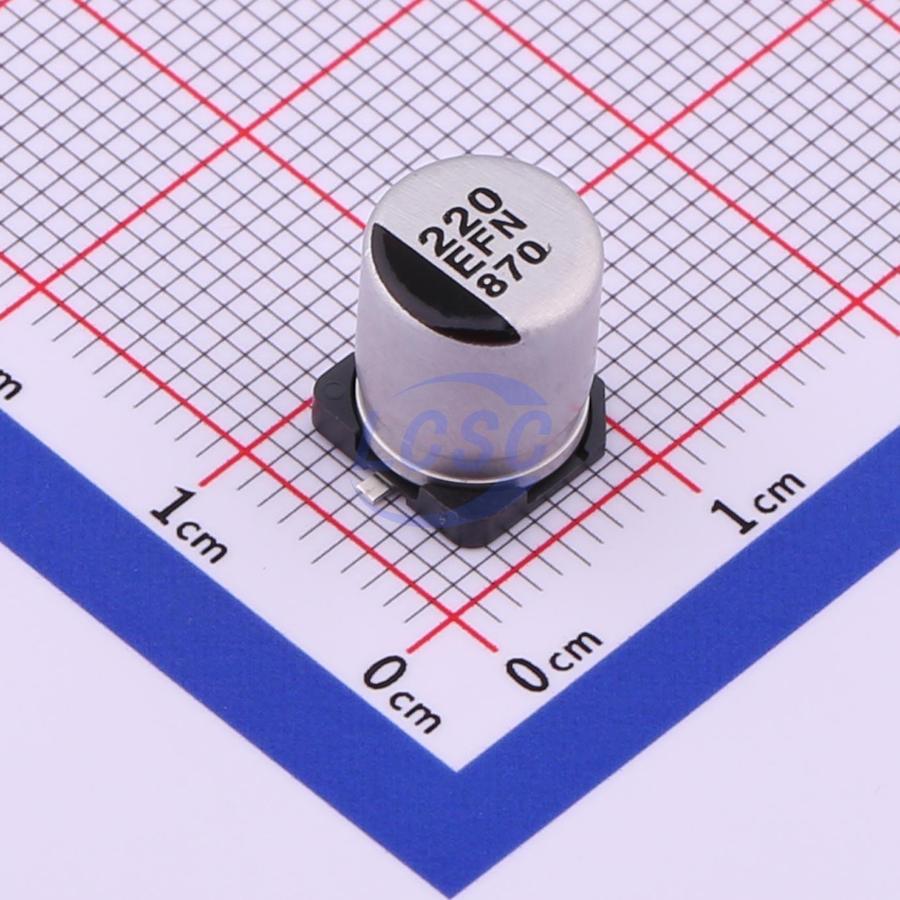

PANASONIC

EEEFN1E221P

220uF ±20% 25V Aluminum Electrolytic Capacitors 2000hrs@105℃

SMD,D8xL10.2mmROHS3 CompliantActive

CAP ALUM 220uF ±20% 25V SMD

Manufacturer: PANASONIC
Manufacturer part #: EEEFN1E221P
Store part #: C494827
Package / case: SMD,D8xL10.2mm
Category: Aluminum Electrolytic Capacitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

570 in stock

#C494827

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
5+	₹51.07	₹255.35
50+	₹40.21	₹2,010.50
150+	₹35.43	₹5,314.50
500+	₹29.56	₹14,780.00
2,500+	₹26.95	₹67,375.00
5,000+	₹25.43	₹1,27,150.00

Quantity (min 5, multiples of 5)

5 × ₹51.07

₹255.35

excl. GST

₹301.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

EEEFN1E221P

₹255.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Tolerance: ±20%
Voltage Rating: 25V
Lifetime: 2000hrs@105℃
Capacitance: 220uF
Ripple Current: 600mA@100kHz
Polarity type: Polarized
Operating Temperature: -55℃~+105℃
Equivalent Series Resistance(ESR): 160mΩ@100kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.62 g

Overview

SMD aluminum electrolytic capacitors. FN series 6.3V to 50V supports high-temperature lead-free reflow soldering; 63V to 100V supports standard lead-free reflow soldering.

Key features

Durability: 2000 hours at 105°C
Wide voltage range: 6.3V to 100V
High capacitance: 20% to 80% higher than FK series
Vibration-proof products available on request (diameter ≥6.3mm, guaranteed 30G)
AEC-Q200 compliant
RoHS compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
EEV227M025A9MAA#C2163404KEMET · SMD,D8xL10.2mm	KEMET	SMD,D8xL10.2mm	127	₹128.36 · 127 in stock	View
EEEFN1E221V#C497595PANASONIC · SMD,D8xL10.2mm	PANASONIC	SMD,D8xL10.2mm	445	₹111.09 · 445 in stock	View
EXV227M025A9MAA#C561849KEMET · SMD,D8xL10.2mm	KEMET	SMD,D8xL10.2mm	81	₹149.83 · 81 in stock	View
EEE-FK1E221AL#C1881627PANASONIC · SMD,D8xL10.2mm	PANASONIC	SMD,D8xL10.2mm	27	₹162.19 · 27 in stock	View
EEEFK1E221AP#C401714PANASONIC · SMD,D8xL10.2mm	PANASONIC	SMD,D8xL10.2mm	199	₹59.52 · 199 in stock	View
