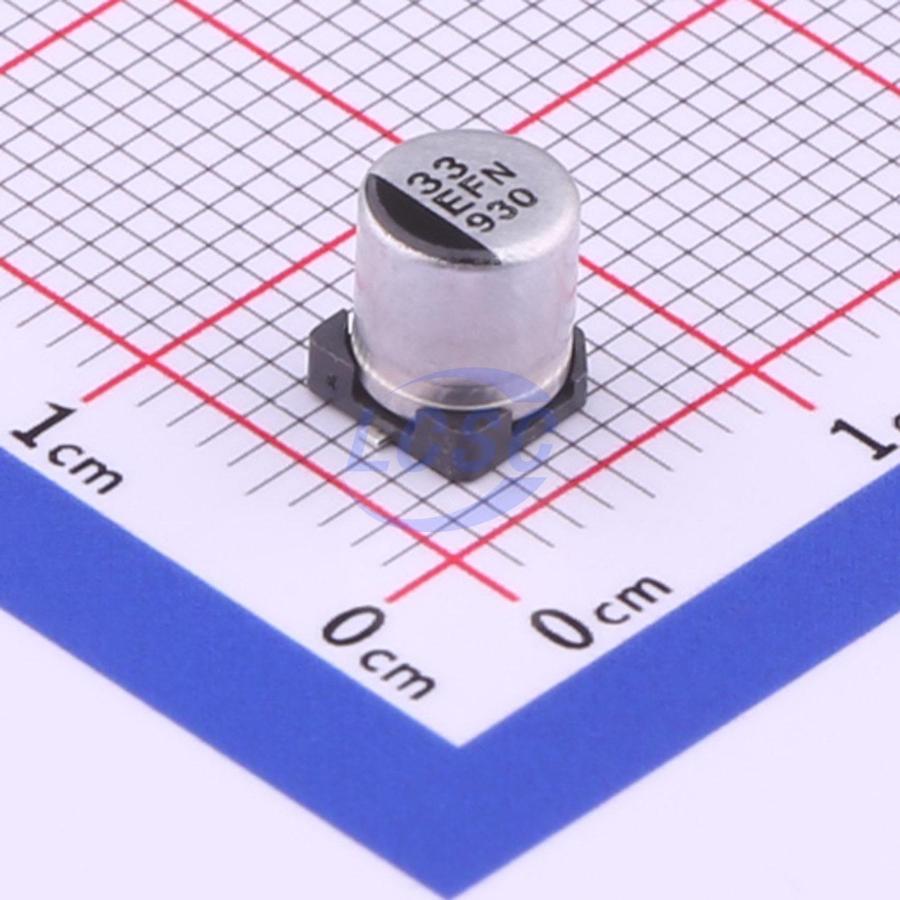

PANASONIC

EEEFN1E330R

±20% 25V 33uF 700mΩ@100kHz SMD Aluminum Electrolytic Capacitors RoHS

SMDROHS3 CompliantActive

Manufacturer: PANASONIC
Manufacturer part #: EEEFN1E330R
Store part #: C494820
Package / case: SMD
Category: Aluminum Electrolytic Capacitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

920 in stock

#C494820

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹27.06	₹135.30
50+	₹21.95	₹1,097.50
150+	₹19.77	₹2,965.50
1,000+	₹14.75	₹14,750.00
2,000+	₹13.53	₹27,060.00
5,000+	₹12.81	₹64,050.00

Quantity (min 5, multiples of 5)

5 × ₹27.06

₹135.30

excl. GST

₹159.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

EEEFN1E330R

₹135.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Tolerance: ±20%
Voltage Rating: 25V
Lifetime: 2000hrs@105℃
Capacitance: 33uF
Ripple Current: 160mA@100kHz
Polarity type: Polarized
Operating Temperature: -55℃~+105℃
Equivalent Series Resistance(ESR): 700mΩ@100kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.526 g

Overview

SMD aluminum electrolytic capacitors. FN series 6.3V to 50V supports high-temperature lead-free reflow soldering; 63V to 100V supports standard lead-free reflow soldering.

Key features

Durability: 2000 hours at 105°C
Wide voltage range: 6.3V to 100V
High capacitance: 20% to 80% higher than FK series
Vibration-proof products available on request (diameter ≥6.3mm, guaranteed 30G)
AEC-Q200 compliant
RoHS compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
UCD1E330MCL6GS#C445466Nichicon · SMD,D5xL5.8mm	Nichicon	SMD,D5xL5.8mm	10	₹18.63 · 10 in stock	View
EEEFT1E330AR#C413515PANASONIC · SMD,D4xL5.8mm	PANASONIC	SMD,D4xL5.8mm	355	₹27.57 · 355 in stock	View
EEEFP1E330AP#C413595PANASONIC · SMD,D6.3xL5.8mm	PANASONIC	SMD,D6.3xL5.8mm	845	₹34.54 · 845 in stock	View
EMZJ250ARA330ME61G#C5274666NCC · SMD,D5xL5.8mm	NCC	SMD,D5xL5.8mm	690	₹36.28 · 690 in stock	View
EEEFK1E330UR#C128455PANASONIC · SMD,D5xL5.8mm	PANASONIC	SMD,D5xL5.8mm	12,785	₹13.84 · 12,785 in stock	View
