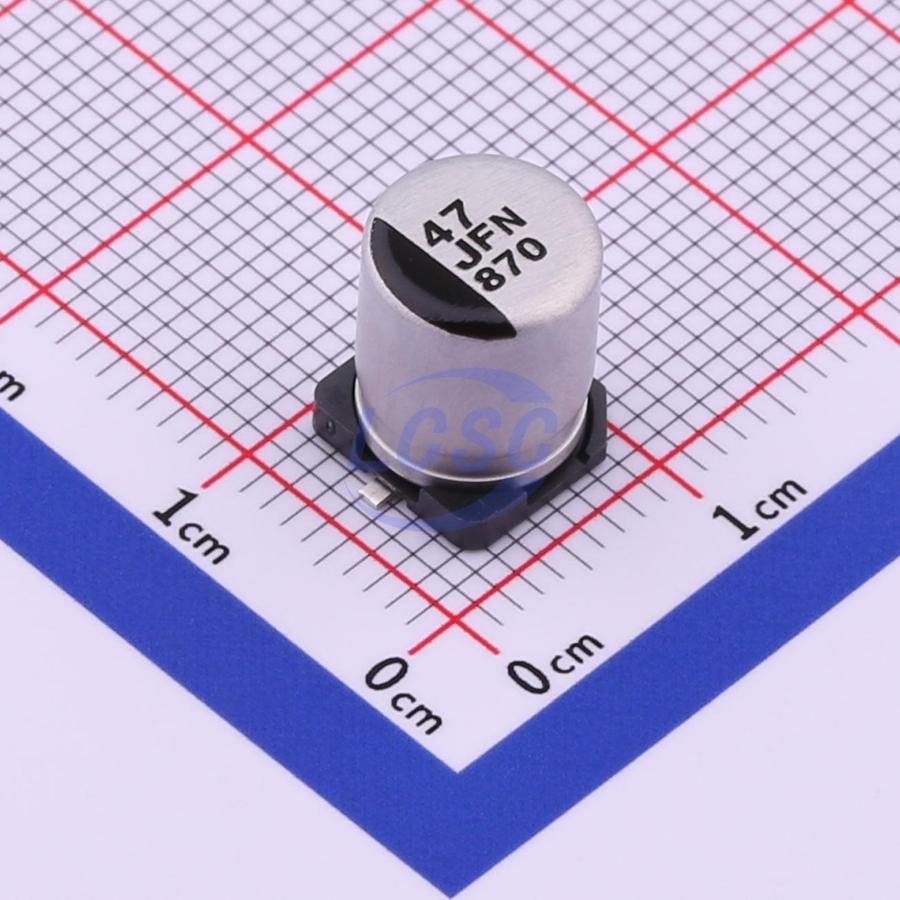

PANASONIC

EEEFN1J470P

47uF ±20% 63V Aluminum Electrolytic Capacitors 2000hrs@105℃

SMD,D8xL10.2mmROHS3 CompliantActive

CAP ALUM 47uF ±20% 63V SMD

Manufacturer: PANASONIC
Manufacturer part #: EEEFN1J470P
Store part #: C494864
Package / case: SMD,D8xL10.2mm
Category: Aluminum Electrolytic Capacitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

464 in stock

#C494864

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹60.50	₹60.50
10+	₹48.14	₹481.40
30+	₹42.72	₹1,281.60
100+	₹36.00	₹3,600.00
500+	₹33.18	₹16,590.00
1,000+	₹31.22	₹31,220.00

Quantity (min 1)

1 × ₹60.50

₹60.50

excl. GST

₹71.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

EEEFN1J470P

₹60.50 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Tolerance: ±20%
Voltage Rating: 63V
Lifetime: 2000hrs@105℃
Capacitance: 47uF
Ripple Current: 250mA@100kHz
Polarity type: Polarized
Operating Temperature: -55℃~+105℃
Equivalent Series Resistance(ESR): 650mΩ@100kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.586 g

Overview

SMD aluminum electrolytic capacitors. FN series 6.3V to 50V supports high-temperature lead-free reflow soldering; 63V to 100V supports standard lead-free reflow soldering.

Key features

Durability: 2000 hours at 105°C
Wide voltage range: 6.3V to 100V
High capacitance: 20% to 80% higher than FK series
Vibration-proof products available on request (diameter ≥6.3mm, guaranteed 30G)
AEC-Q200 compliant
RoHS compliant
