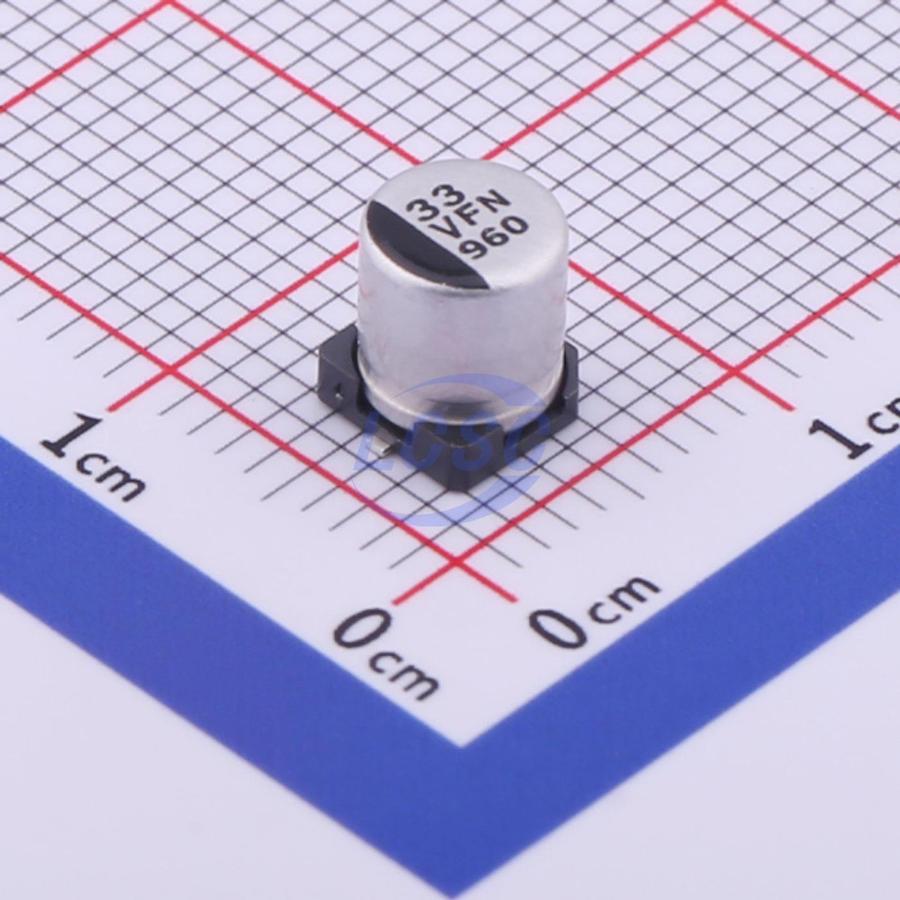

PANASONIC

EEEFN1V330R

33uF ±20% 35V Aluminum Electrolytic Capacitors 2000hrs@105℃

SMD,D5xL5.8mmROHS3 CompliantActive

CAP ALUM 33uF ±20% 35V SMD

Manufacturer: PANASONIC
Manufacturer part #: EEEFN1V330R
Store part #: C494836
Package / case: SMD,D5xL5.8mm
Category: Aluminum Electrolytic Capacitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

810 in stock

#C494836

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹29.75	₹148.75
50+	₹23.75	₹1,187.50
150+	₹21.17	₹3,175.50
1,000+	₹17.95	₹17,950.00
2,000+	₹16.52	₹33,040.00
5,000+	₹15.66	₹78,300.00

Quantity (min 5, multiples of 5)

5 × ₹29.75

₹148.75

excl. GST

₹175.52 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

EEEFN1V330R

₹148.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Tolerance: ±20%
Voltage Rating: 35V
Lifetime: 2000hrs@105℃
Capacitance: 33uF
Ripple Current: 160mA@100kHz
Polarity type: Polarized
Operating Temperature: -55℃~+105℃
Equivalent Series Resistance(ESR): 700mΩ@100kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.323 g

Overview

SMD aluminum electrolytic capacitors. FN series 6.3V to 50V supports high-temperature lead-free reflow soldering; 63V to 100V supports standard lead-free reflow soldering.

Key features

Durability: 2000 hours at 105°C
Wide voltage range: 6.3V to 100V
High capacitance: 20% to 80% higher than FK series
Vibration-proof products available on request (diameter ≥6.3mm, guaranteed 30G)
AEC-Q200 compliant
RoHS compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
EEEFT1V330AR#C336791PANASONIC · SMD,D5xL5.8mm	PANASONIC	SMD,D5xL5.8mm	350	₹33.00 · 350 in stock	View
UUD1V330MCL1GS#C445251Nichicon · SMD,D6.3xL5.8mm	Nichicon	SMD,D6.3xL5.8mm	2,530	₹23.80 · 2,530 in stock	View
EEEHB1V330AP#C413633PANASONIC · SMD,D8xL6.2mm	PANASONIC	SMD,D8xL6.2mm	2	₹55.65 · 2 in stock	View
EMVA350ARA330MF55G#C2886569NCC · SMD,D6.3xL5.2mm	NCC	SMD,D6.3xL5.2mm	10	₹14.82 · 10 in stock	View
UWT1V330MCL6GS#C340739Nichicon · SMD,D6.3xL5.8mm	Nichicon	SMD,D6.3xL5.8mm	165	₹16.06 · 165 in stock	View
