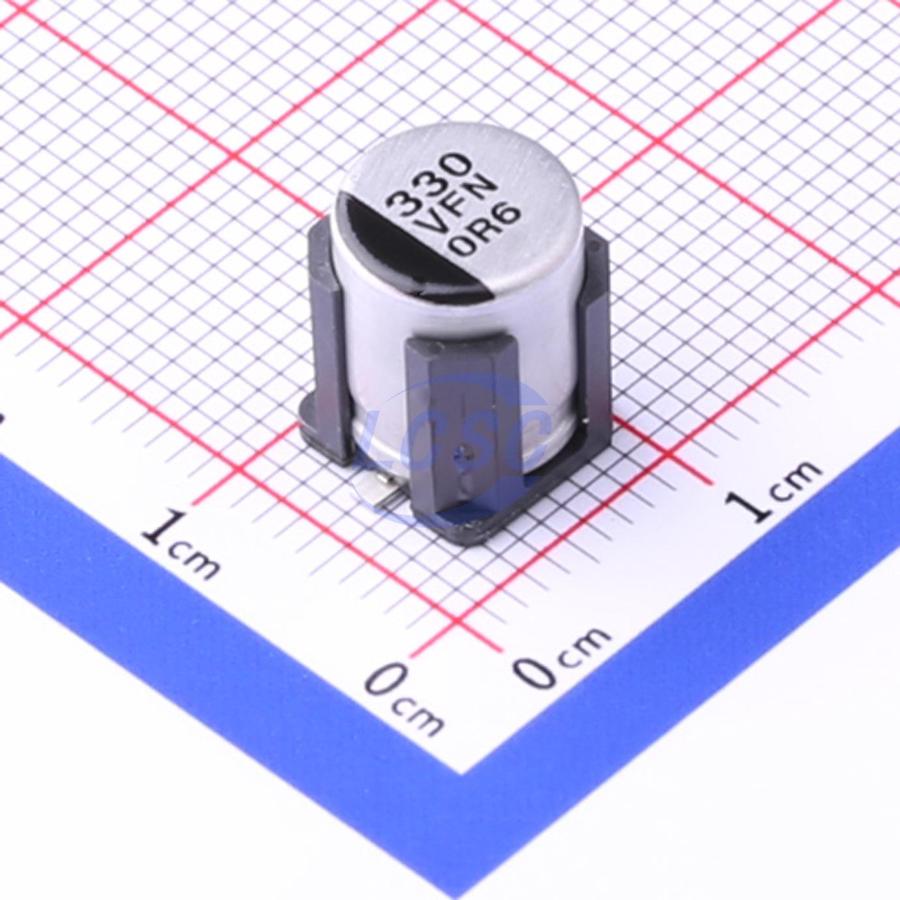

PANASONIC

EEEFN1V331UV

330uF ±20% 35V Aluminum Electrolytic Capacitors 2000hrs@105℃

SMD,D8xL10.2mmROHS3 CompliantActive

CAP ALUM 330uF ±20% 35V SMD

Manufacturer: PANASONIC
Manufacturer part #: EEEFN1V331UV
Store part #: C497604
Package / case: SMD,D8xL10.2mm
Category: Aluminum Electrolytic Capacitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

350 in stock

#C497604

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹116.11	₹116.11
10+	₹93.27	₹932.70
30+	₹81.97	₹2,459.10
100+	₹70.89	₹7,089.00
500+	₹64.14	₹32,070.00
1,000+	₹60.66	₹60,660.00

Quantity (min 1)

1 × ₹116.11

₹116.11

excl. GST

₹137.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

EEEFN1V331UV

₹116.11 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Tolerance: ±20%
Voltage Rating: 35V
Lifetime: 2000hrs@105℃
Capacitance: 330uF
Ripple Current: 600mA@100kHz
Polarity type: Polarized
Operating Temperature: -55℃~+105℃
Equivalent Series Resistance(ESR): 160mΩ@100kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.501 g

Overview

SMD aluminum electrolytic capacitors. FN series 6.3V to 50V supports high-temperature lead-free reflow soldering; 63V to 100V supports standard lead-free reflow soldering.

Key features

Durability: 2000 hours at 105°C
Wide voltage range: 6.3V to 100V
High capacitance: 20% to 80% higher than FK series
Vibration-proof products available on request (diameter ≥6.3mm, guaranteed 30G)
AEC-Q200 compliant
RoHS compliant
