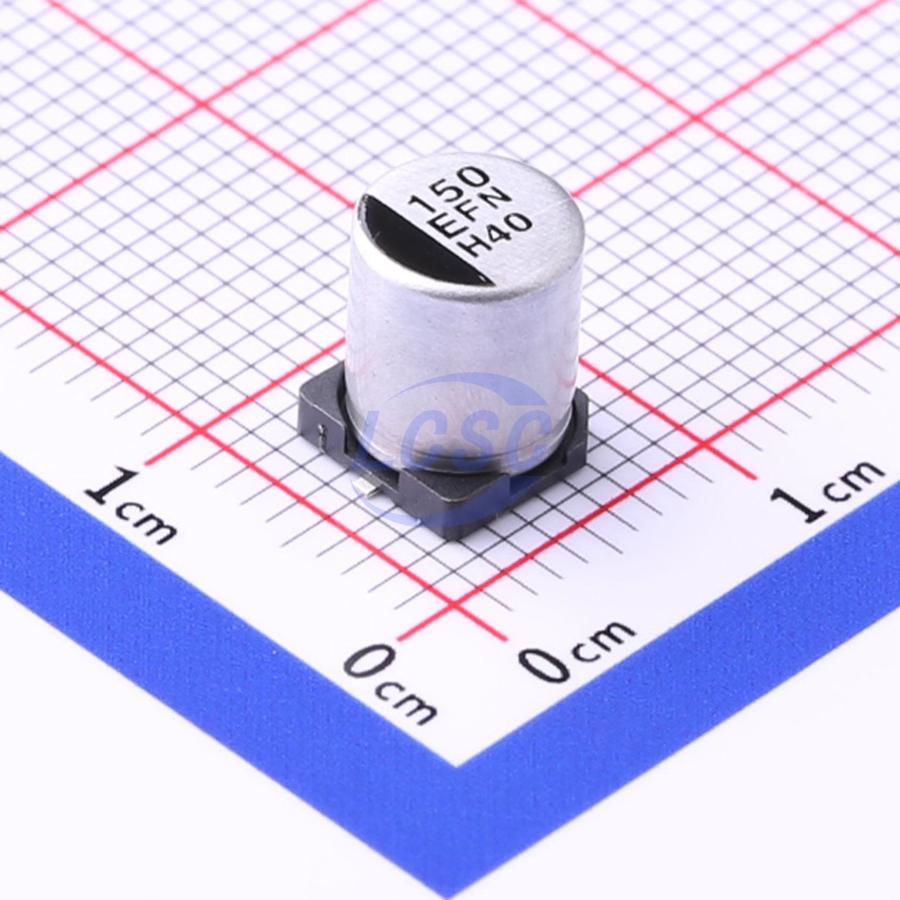

PANASONIC

EEEFNE151XUP

150uF ±20% 25V Aluminum Electrolytic Capacitors 2000hrs@105℃

SMD,D6.3xL7.7mmROHS3 CompliantActive

CAP ALUM 150uF ±20% 25V SMD

Manufacturer: PANASONIC
Manufacturer part #: EEEFNE151XUP
Store part #: C494825
Package / case: SMD,D6.3xL7.7mm
Category: Aluminum Electrolytic Capacitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

515 in stock

#C494825

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
5+	₹48.14	₹240.70
50+	₹38.00	₹1,900.00
150+	₹33.64	₹5,046.00
900+	₹28.22	₹25,398.00
2,700+	₹25.81	₹69,687.00
5,400+	₹24.36	₹1,31,544.00

Quantity (min 5, multiples of 5)

5 × ₹48.14

₹240.70

excl. GST

₹284.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 900 per reel

EEEFNE151XUP

₹240.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Tolerance: ±20%
Voltage Rating: 25V
Lifetime: 2000hrs@105℃
Capacitance: 150uF
Ripple Current: 280mA@100kHz
Polarity type: Polarized
Operating Temperature: -55℃~+105℃
Equivalent Series Resistance(ESR): 340mΩ@100kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 900 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.598 g

Overview

SMD aluminum electrolytic capacitors. FN series 6.3V to 50V supports high-temperature lead-free reflow soldering; 63V to 100V supports standard lead-free reflow soldering.

Key features

Durability: 2000 hours at 105°C
Wide voltage range: 6.3V to 100V
High capacitance: 20% to 80% higher than FK series
Vibration-proof products available on request (diameter ≥6.3mm, guaranteed 30G)
AEC-Q200 compliant
RoHS compliant
