PANASONIC

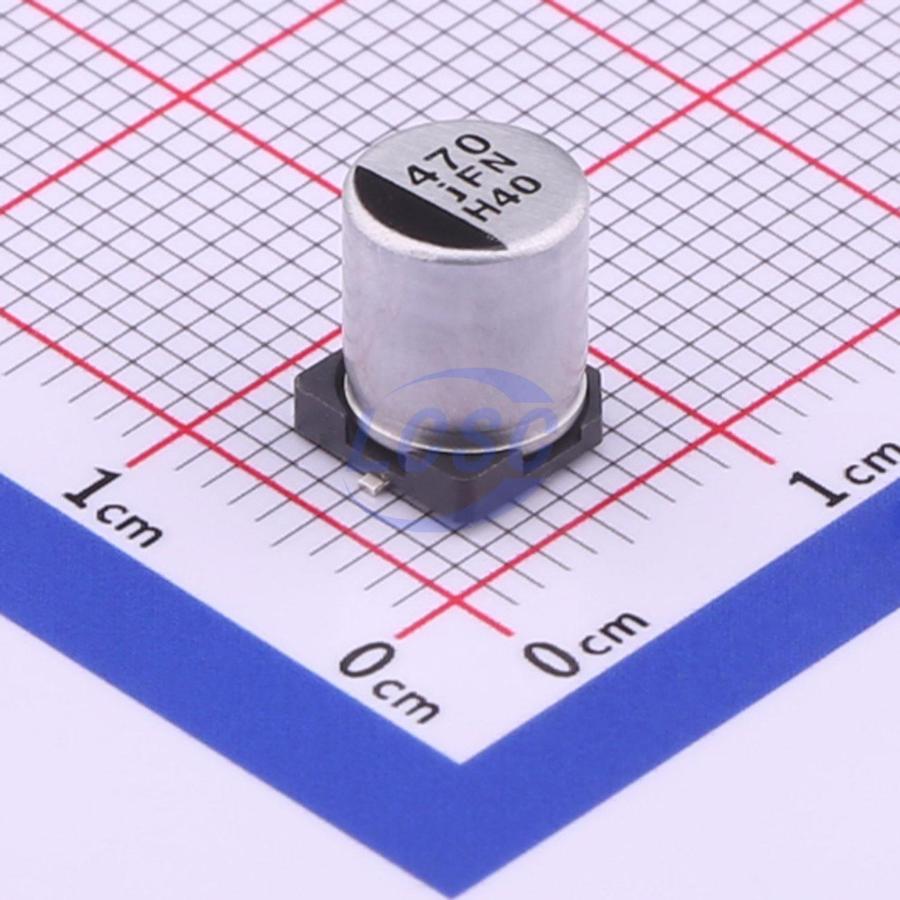

EEEFNJ471XUP

470uF ±20% 6.3V Aluminum Electrolytic Capacitors 2000hrs@105℃

SMD,D6.3xL7.7mmROHS3 CompliantActive

CAP ALUM 470uF ±20% 6.3V SMD

Manufacturer: PANASONIC
Manufacturer part #: EEEFNJ471XUP
Store part #: C494781
Package / case: SMD,D6.3xL7.7mm
Category: Aluminum Electrolytic Capacitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

740 in stock

#C494781

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹44.40	₹222.00
50+	₹34.56	₹1,728.00
150+	₹30.35	₹4,552.50
900+	₹25.08	₹22,572.00
2,700+	₹22.74	₹61,398.00
5,400+	₹21.34	₹1,15,236.00

Quantity (min 5, multiples of 5)

5 × ₹44.40

₹222.00

excl. GST

₹261.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 900 per reel

EEEFNJ471XUP

₹222.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Tolerance: ±20%
Voltage Rating: 6.3V
Lifetime: 2000hrs@105℃
Capacitance: 470uF
Ripple Current: 280mA@100kHz
Polarity type: Polarized
Operating Temperature: -55℃~+105℃
Equivalent Series Resistance(ESR): 340mΩ@100kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 900 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.804 g

Overview

SMD aluminum electrolytic capacitors. FN series 6.3V to 50V supports high-temperature lead-free reflow soldering; 63V to 100V supports standard lead-free reflow soldering.

Key features

Durability: 2000 hours at 105°C
Wide voltage range: 6.3V to 100V
High capacitance: 20% to 80% higher than FK series
Vibration-proof products available on request (diameter ≥6.3mm, guaranteed 30G)
AEC-Q200 compliant
RoHS compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
EEEFKJ471XSP#C401736PANASONIC · SMD,D6.3xL7.7mm	PANASONIC	SMD,D6.3xL7.7mm	665	₹53.05 · 665 in stock	View
EEEFTJ471XAP#C178601PANASONIC · SMD,D6.3xL7.7mm	PANASONIC	SMD,D6.3xL7.7mm	676	₹62.38 · 676 in stock	View
UCD0J471MNL1GS#C445481Nichicon · SMD,D8xL10mm	Nichicon	SMD,D8xL10mm	1,915	₹49.03 · 1,915 in stock	View
EEEFK0J471P#C336708PANASONIC · SMD	PANASONIC	SMD	645	₹59.23 · 645 in stock	View
EEEFK0J471AP#C401641PANASONIC · SMD,D8xL10.2mm	PANASONIC	SMD,D8xL10.2mm	1	₹72.25 · 1 in stock	View
