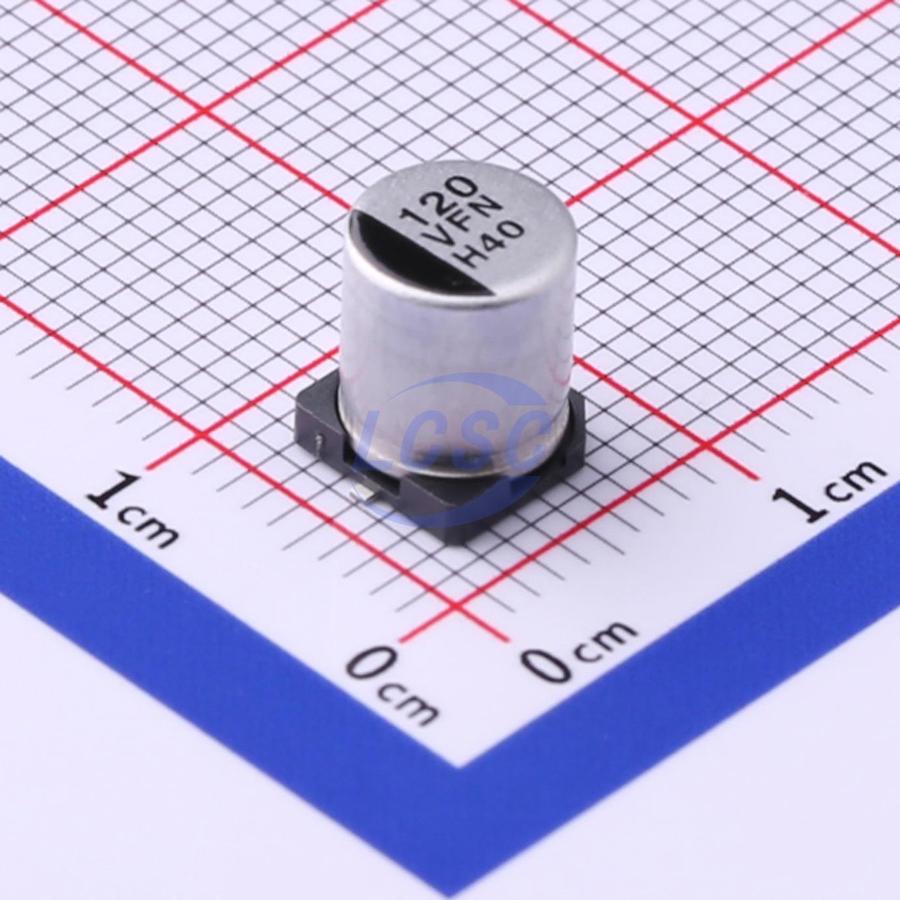

PANASONIC

EEEFNV121XUP

120uF ±20% 35V Aluminum Electrolytic Capacitors 2000hrs@105℃

SMD,D6.3xL7.7mmROHS3 CompliantActive

CAP ALUM 120uF ±20% 35V SMD

Manufacturer: PANASONIC
Manufacturer part #: EEEFNV121XUP
Store part #: C494842
Package / case: SMD,D6.3xL7.7mm
Category: Aluminum Electrolytic Capacitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

Out of stock

#C494842

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹48.40	₹242.00
50+	₹38.94	₹1,947.00
150+	₹34.89	₹5,233.50
900+	₹27.29	₹24,561.00
2,700+	₹25.04	₹67,608.00
5,400+	₹23.69	₹1,27,926.00

Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 900 per reel

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Tolerance: ±20%
Voltage Rating: 35V
Lifetime: 2000hrs@105℃
Capacitance: 120uF
Ripple Current: 280mA@100kHz
Polarity type: Polarized
Operating Temperature: -55℃~+105℃
Equivalent Series Resistance(ESR): 340mΩ@100kHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 900 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.615 g

Overview

SMD aluminum electrolytic capacitors. FN series 6.3V to 50V supports high-temperature lead-free reflow soldering; 63V to 100V supports standard lead-free reflow soldering.

Key features

Durability: 2000 hours at 105°C
Wide voltage range: 6.3V to 100V
High capacitance: 20% to 80% higher than FK series
Vibration-proof products available on request (diameter ≥6.3mm, guaranteed 30G)
AEC-Q200 compliant
RoHS compliant
