onsemiDatasheet (PDF)

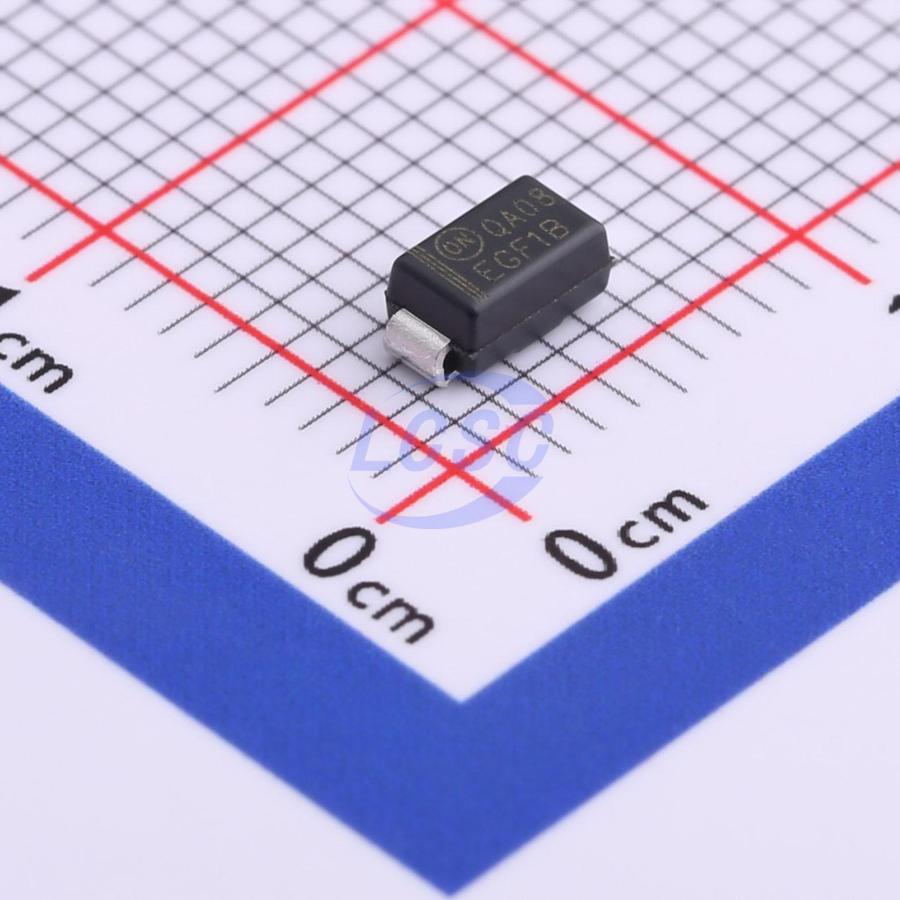

EGF1B
50ns 100V 1 Independent 1V@1A 1A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
Diode 100V 1A SMA(DO-214AC)
- Manufacturer
- onsemi
- Manufacturer part #
- EGF1B
- Store part #
- C719808
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
286 in stock
#C719808
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.47 | ₹101.47 |
| 10+ | ₹82.40 | ₹824.00 |
| 30+ | ₹72.86 | ₹2,185.80 |
| 100+ | ₹63.32 | ₹6,332.00 |
| 500+ | ₹57.68 | ₹28,840.00 |
| 1,000+ | ₹54.86 | ₹54,860.00 |
1 × ₹101.47
₹101.47
excl. GST
₹119.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 7,500 per reel
EGF1B
₹101.47 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 50ns
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 7,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.109 g
Overview
Applications
- For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive and telecommunication.
Key features
- Superectifier structure for high reliability condition
- Cavity-free glass-passivated junction RoHS
- Ideal for automated placement COMPLIANT
- Ultrafast reverse recovery time
- Low switching losses, high efficiency
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 250 ℃
- AEC-Q101 qualified - Automotive ordering code: base P/NHE3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EGF1D-E3/67A#C506564VISHAY · DO-214BA | VISHAY | DO-214BA | 3 | ₹119.73 · 3 in stock | View |
 | US1B#C18199126R+O · SMA(DO-214AC) | R+O | SMA(DO-214AC) | 3,350 | ₹1.97 · 3,350 in stock | View |
 | US1B#C437787Jingdao Microelectronics · SMA | Jingdao Microelectronics | SMA | 4,800 | ₹1.48 · 4,800 in stock | View |
 | US1BA#C48996672DOWO · SMA | DOWO | SMA | 2,200 | ₹1.49 · 2,200 in stock | View |
 | US1B#C5293944JSCJ · SMAG | JSCJ | SMAG | 4,660 | ₹3.68 · 4,660 in stock | View |
