VISHAYDatasheet (PDF)

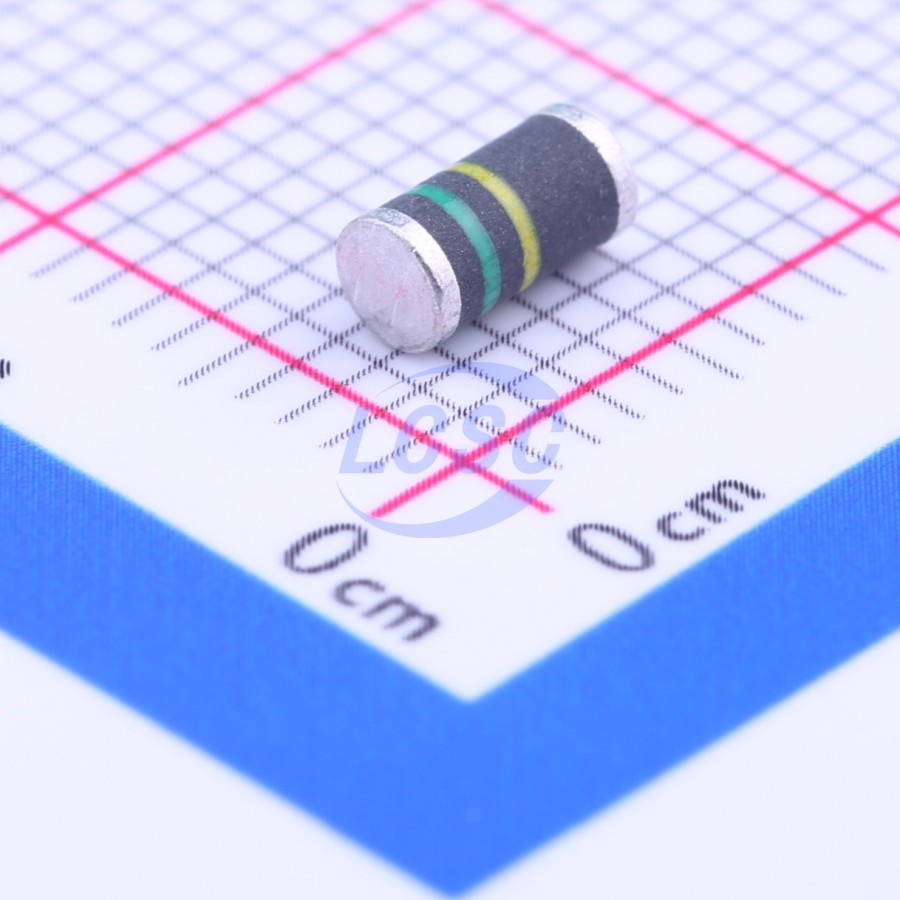

EGL41G-E3/96
Diode 400V 1A Surface Mount DO-213AB
DO-213ABROHS CompliantActive
DIODE STANDARD 400V 1A DO-213AB
- Manufacturer
- VISHAY
- Manufacturer part #
- EGL41G-E3/96
- Store part #
- C142566
- Package / case
- DO-213AB
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C142566
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.20 | ₹246.00 |
| 50+ | ₹39.05 | ₹1,952.50 |
| 150+ | ₹34.72 | ₹5,208.00 |
| 1,500+ | ₹29.29 | ₹43,935.00 |
| 3,000+ | ₹26.87 | ₹80,610.00 |
| 4,500+ | ₹25.43 | ₹1,14,435.00 |
5 × ₹49.20
₹246.00
excl. GST
₹290.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
EGL41G-E3/96
₹246.00 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 400V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1V@1A
- Reverse Leakage Current (Ir)
- 5uA@400V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
Applications
- For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, automotive and telecommunication.
Key features
- Superectifier structure for high reliability condition
- Cavity-free glass-passivated junction RoHS
- Ideal for automated placement COMPLIANT
- Ultrafast reverse recovery time
- Low switching losses, high efficiency
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 250 ℃
- AEC-Q101 qualified - Automotive ordering code: base P/NHE3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DL4007#C64935MDD(Microdiode Semiconductor) · DO-213AB | MDD(Microdiode Semiconductor) | DO-213AB | 52,240 | ₹7.09 · 52,240 in stock | View |
| DL4007#C20624192YFW · DO-213AB | YFW | DO-213AB | 5,000 | ₹7.59 · 5,000 in stock | View | |
 | BYM10-400-E3/96#C2984667VISHAY · DO-213AB | VISHAY | DO-213AB | 65 | ₹36.50 · 65 in stock | View |
 | GL41G-E3/96#C3151630VISHAY · DO-213AB | VISHAY | DO-213AB | 15 | ₹23.31 · 15 in stock | View |
 | BYM10-400-E3/97#C5346031VISHAY · DO-213AB | VISHAY | DO-213AB | 20 | ₹130.14 · 20 in stock | View |
