VISHAYDatasheet (PDF)

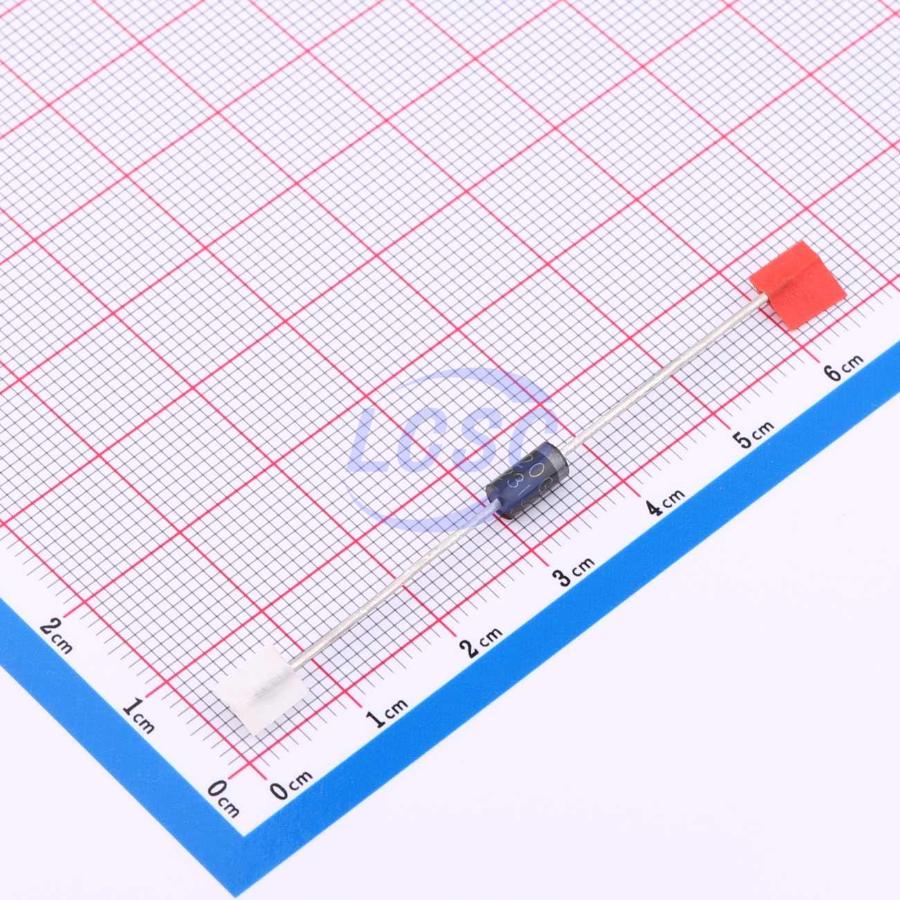

EGP20G-E3/54
Diode Independent 400V 2A Through Hole DO-204AC(DO-15)
DO-204AC(DO-15)ROHS3 CompliantActive
DIODE GP 400V 2A DO-204AC(DO-15)
- Manufacturer
- VISHAY
- Manufacturer part #
- EGP20G-E3/54
- Store part #
- C17491649
- Package / case
- DO-204AC(DO-15)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
830 in stock
#C17491649
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.44 | ₹222.20 |
| 50+ | ₹34.62 | ₹1,731.00 |
| 150+ | ₹30.42 | ₹4,563.00 |
| 500+ | ₹25.18 | ₹12,590.00 |
| 2,500+ | ₹22.83 | ₹57,075.00 |
| 4,000+ | ₹21.43 | ₹85,720.00 |
5 × ₹44.44
₹222.20
excl. GST
₹262.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EGP20G-E3/54
₹222.20 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 50ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 400V
- Voltage - Forward(Vf@If)
- 1.25V@2A
- Reverse Leakage Current (Ir)
- 5uA@400V
- Non-Repetitive Peak Forward Surge Current
- 75A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.57 g
Overview
Applications
- For high-frequency rectification and freewheeling applications in switch-mode converters and inverters for consumer, computer, and telecommunications markets
Key features
- Hyperrectifier structure for high-reliability applications
- Void-free glass-passivated junction
- Ultra-fast reverse recovery time
- Low forward voltage drop
- Low leakage current
- Low switching losses, high efficiency
- High forward surge capability
- Maximum wave soldering temperature 275℃ for 10s per JESD 22-B106
- Material category: refer to relevant documentation for compliance definitions
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 2A05G A0G#C17562359Taiwan Semiconductor · DO-204AC(DO-15) | Taiwan Semiconductor | DO-204AC(DO-15) | On request | ₹14.61 · 0 in stock | View | |
| SF26G-AP#C19299652MCC · DO-15 | MCC | DO-15 | On request | ₹4.27 · 0 in stock | View | |
| SF26G-BP#C19992024MCC · DO-15 | MCC | DO-15 | On request | ₹12.36 · 0 in stock | View | |
| SF26G A0G#C17307362Taiwan Semiconductor · DO-204AC(DO-15) | Taiwan Semiconductor | DO-204AC(DO-15) | On request | ₹15.44 · 0 in stock | View | |
| FR204GB-G#C17309068Comchip · DO-15 | Comchip | DO-15 | On request | ₹10.36 · 0 in stock | View | |
