VBsemi ElecDatasheet (PDF)

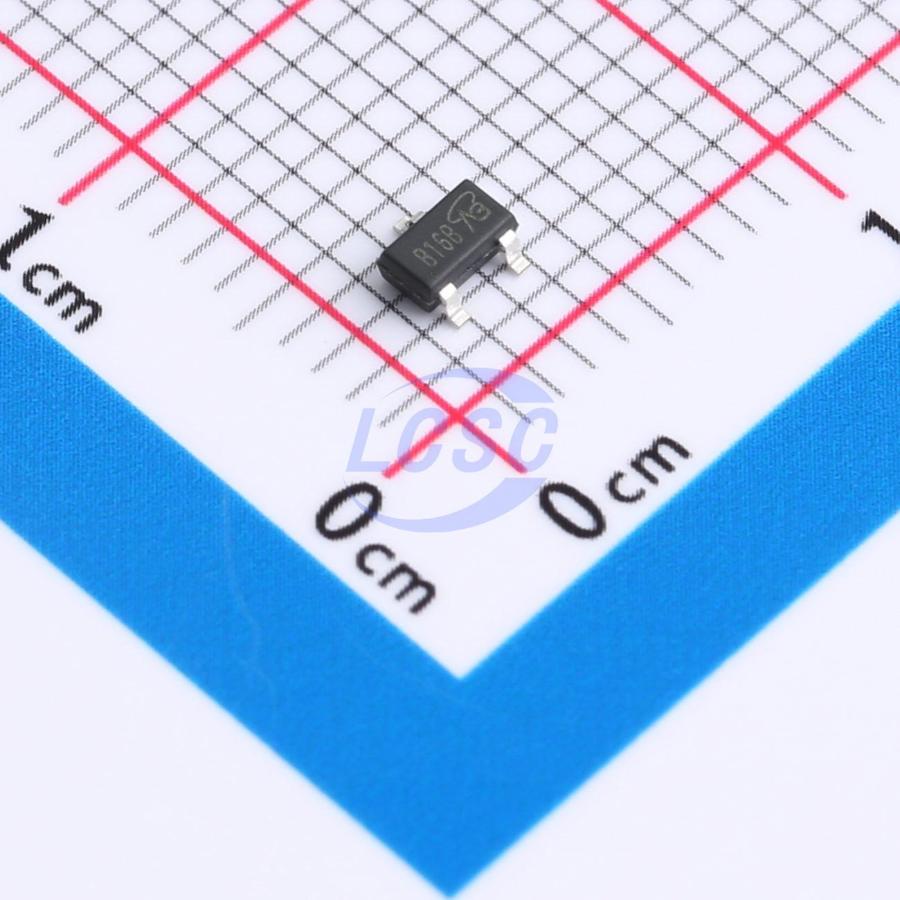

ELM13422CA-S-VB
N-Channel 60V 4A 1.66W Surface Mount SOT-23(TO-236)
SOT-23(TO-236)RoHSActive
MOSFET N-CH 60V 4A SOT-23(TO-236)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- ELM13422CA-S-VB
- Store part #
- C41370198
- Package / case
- SOT-23(TO-236)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C41370198
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.84 | ₹154.20 |
| 50+ | ₹24.45 | ₹1,222.50 |
| 150+ | ₹21.71 | ₹3,256.50 |
| 500+ | ₹18.30 | ₹9,150.00 |
| 3,000+ | ₹16.78 | ₹50,340.00 |
| 6,000+ | ₹15.85 | ₹95,100.00 |
5 × ₹30.84
₹154.20
excl. GST
₹181.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ELM13422CA-S-VB
₹154.20 for 5 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 22pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 180pF
- Pd - Power Dissipation
- 1.66W
- Reverse Transfer Capacitance (Crss)
- 13pF
- RDS(on)
- 86mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 2.1nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
Applications
- Battery Switch
- DC/DC Converter
Key features
- Halogen-free According to IEC 61249-2-21 Available Trench Power MOSFET
- 100 % Rg Tested
- 100 % UIS Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSM3K318T-VB#C20754939VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹30.28 · 50 in stock | View |
 | RUC002N05T116-VB#C20755119VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 50 | ₹30.28 · 50 in stock | View |
 | 3N06-VB#C20755621VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 30 | ₹29.09 · 30 in stock | View |
 | RQK0604IGDQSTL-E-VB#C22389187VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹30.28 · 100 in stock | View |
 | WNM4006-3/TR-VB#C22389887VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 100 | ₹29.09 · 100 in stock | View |
