PANASONICDatasheet (PDF)

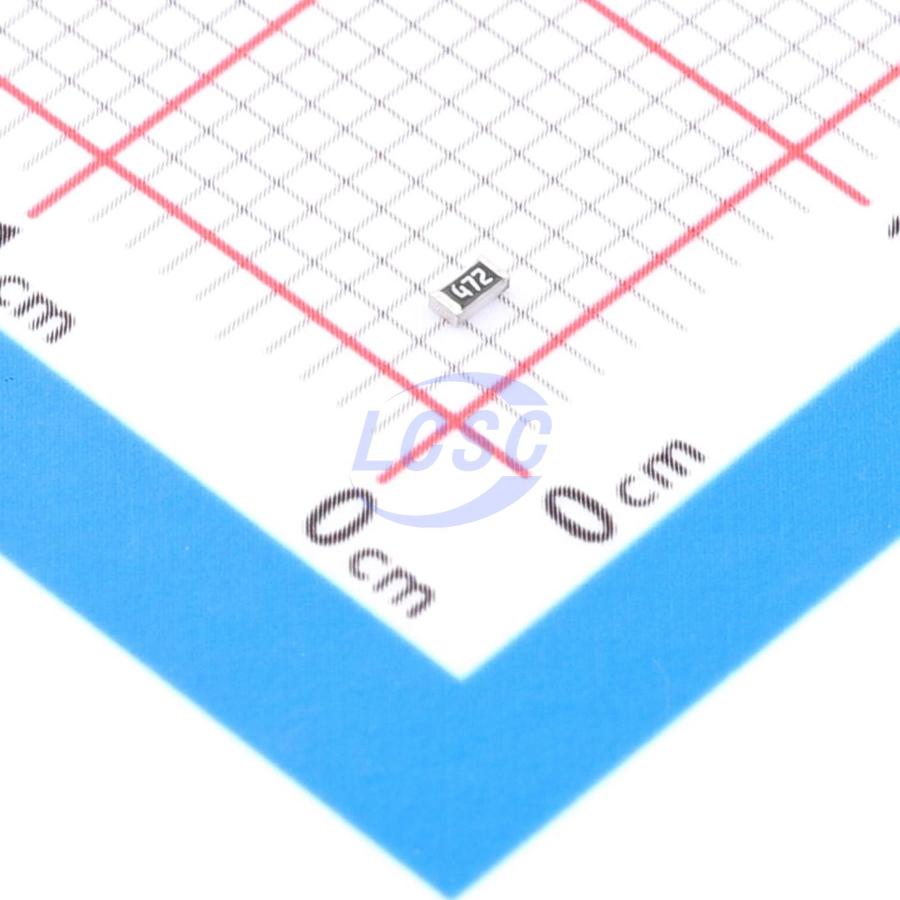

ERA-3AED472V
4.7kΩ ±0.5% 100mW 0603 Thin Film Resistor AEC-Q200
0603ROHS3 CompliantActive
RES 4.7kΩ ±0.5% 100mW 0603
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERA-3AED472V
- Store part #
- C6548387
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
395 in stock
#C6548387
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.00 | ₹50.00 |
| 50+ | ₹9.75 | ₹487.50 |
| 150+ | ₹9.59 | ₹1,438.50 |
| 500+ | ₹9.42 | ₹4,710.00 |
5 × ₹10.00
₹50.00
excl. GST
₹59.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERA-3AED472V
₹50.00 for 5 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 4.7kΩ
- Voltage Rating
- 75V
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Tolerance
- ±0.5%
- Temperature Coefficient
- ±25ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
Key features
- High reliability: stable performance in high-temperature and high-humidity environments (85°C, 65% RH rated load, operating temperature range: -55°C ~ +155°C)
- High accuracy: low resistance tolerance and TCR
- High performance: low current noise, excellent linearity
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2133C
- AEC-Q200 compliant (except ERA1A)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ARG03DTC4701#C311913Viking · 0603 | Viking | 0603 | 50 | ₹1.27 · 50 in stock | View |
 | RT0603DRD074K7L#C728618YAGEO · 0603 | YAGEO | 0603 | 100 | ₹3.11 · 100 in stock | View |
 | RT0603CRD074K7L#C705902YAGEO · 0603 | YAGEO | 0603 | 20 | ₹3.41 · 20 in stock | View |
 | RT0603DRE074K7L#C723699YAGEO · 0603 | YAGEO | 0603 | 6,650 | ₹1.84 · 6,650 in stock | View |
 | AR03BTCX4701#C2902629Viking · 0603 | Viking | 0603 | 5,900 | ₹5.07 · 5,900 in stock | View |
