PANASONICDatasheet (PDF)

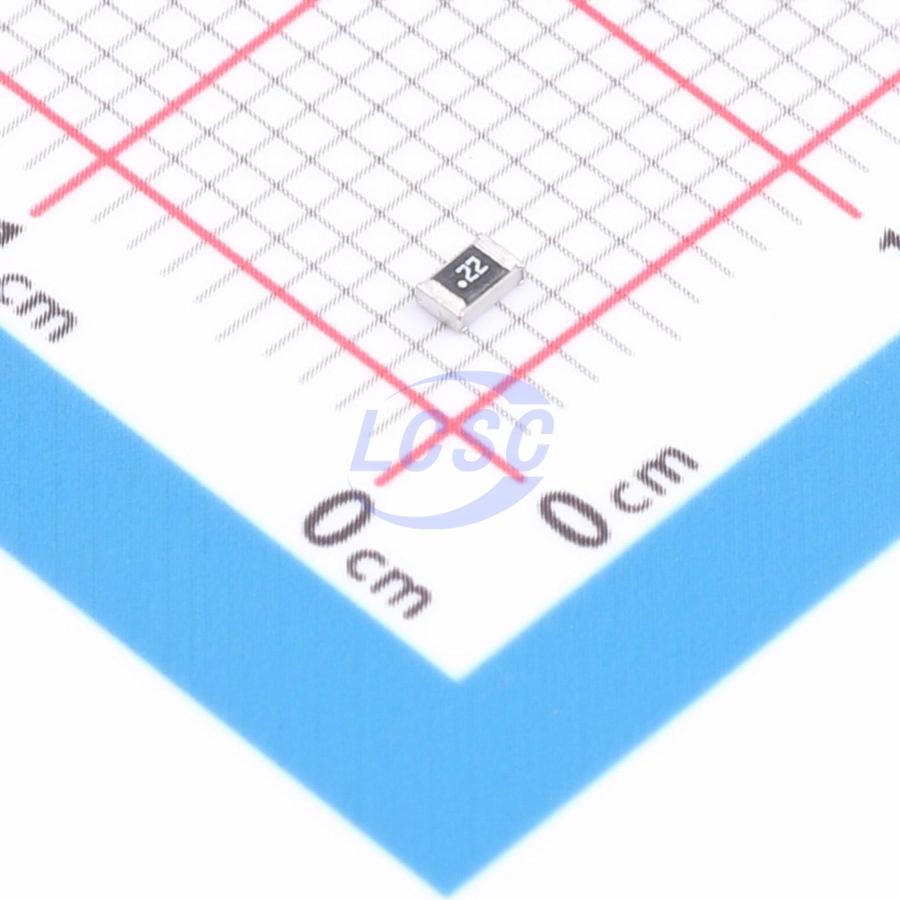

ERJ-6DQFR22V
500mW 220mΩ Thick Film Resistor 0ppm/℃~+100ppm/℃ ±1% 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 0.22Ω ±1% 0.5W 0805
- Manufacturer
- PANASONIC
- Manufacturer part #
- ERJ-6DQFR22V
- Store part #
- C6844934
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,520 in stock
#C6844934
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.31 | ₹76.55 |
| 50+ | ₹12.34 | ₹617.00 |
| 150+ | ₹10.86 | ₹1,629.00 |
| 500+ | ₹9.75 | ₹4,875.00 |
| 2,500+ | ₹8.86 | ₹22,150.00 |
| 5,000+ | ₹8.43 | ₹42,150.00 |
5 × ₹15.31
₹76.55
excl. GST
₹90.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
ERJ-6DQFR22V
₹76.55 for 5 + GST
Specifications
- Power(Watts)
- 500mW
- Resistance
- 220mΩ
- Type
- Thick Film Resistor
- Temperature Coefficient
- 0ppm/℃~+100ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.089 g
Overview
Key features
- Current sensing resistors
- Compact and lightweight
- Low resistance and high precision achieved through proprietary thick-film resistive elements and special electrode structure
- Compatible with reflow and wave soldering
- High power rating via double-sided resistive element structure designed to suppress temperature rise (ERJ2LW, 3LW, 6LW, 2BW, 3BW, 6BW, 8BW, 6CW, 8CW)
- Low TCR: ±75×10⁻⁶/K (ERJ6CW, ERJ8CW)
- Low resistance value: down to 5 mΩ for thick-film resistors (ERJ3LW, 6LW)
- Reference standards: IEC 60115-8, JIS C 5201-8, JEITA RC-2144
- AEC-Q200 compliant
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CSRT0805FTR220#C6145563SEI(Stackpole Electronics Inc.) · 0805 | SEI(Stackpole Electronics Inc.) | 0805 | On request | Price on request | Quote | |
