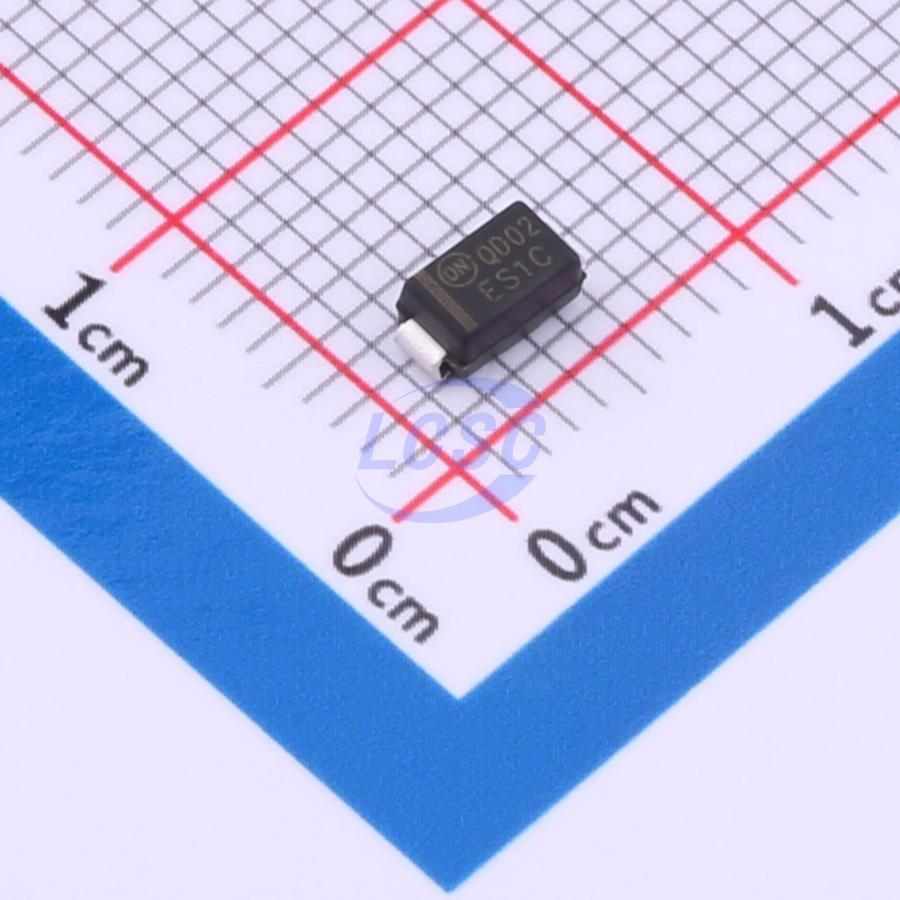

ES1C
15ns 150V 920mV@1A 1A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
Diode 150V 1A SMA(DO-214AC)
- Manufacturer
- onsemi
- Manufacturer part #
- ES1C
- Store part #
- C241728
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C241728
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.49 | ₹232.45 |
| 50+ | ₹37.03 | ₹1,851.50 |
| 150+ | ₹32.97 | ₹4,945.50 |
| 500+ | ₹27.92 | ₹13,960.00 |
| 2,500+ | ₹25.65 | ₹64,125.00 |
| 7,500+ | ₹24.30 | ₹1,82,250.00 |
5 × ₹46.49
₹232.45
excl. GST
₹274.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 7,500 per reel
ES1C
₹232.45 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 15ns
- Voltage - DC Reverse (Vr) (Max)
- 150V
- Operating Junction Temperature Range
- -50℃~+150℃
- Pd - Power Dissipation
- 1.47W
- Voltage - Forward(Vf@If)
- 920mV@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 7,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.112 g
Overview
Applications
- This Product is General Usage and Suitable for Many Different Applications
Key features
- For Surface Mount Applications
- Glass Passivated Junction
- Low Profile Package
- Easy Pick and Place
- Built−in Strain Relief
- Superfast Recovery Times for High Efficiency
- This Device is Pb−Free and is RoHS Compliant
