VISHAYDatasheet (PDF)

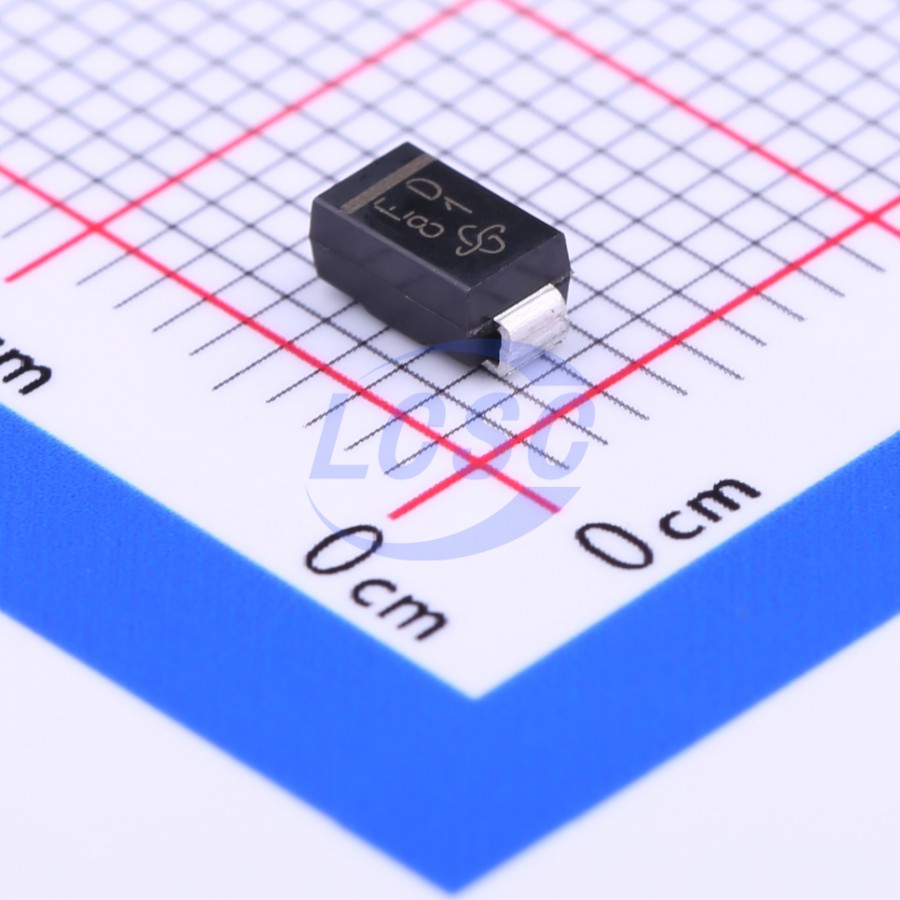

ES1DHE3_A/I
25ns 1 Independent 200V 920mV@1A 1A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
Diode 200V 1A SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- ES1DHE3_A/I
- Store part #
- C241886
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,310 in stock
#C241886
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.07 | ₹90.35 |
| 50+ | ₹15.41 | ₹770.50 |
| 150+ | ₹14.08 | ₹2,112.00 |
| 500+ | ₹13.08 | ₹6,540.00 |
| 2,500+ | ₹12.29 | ₹30,725.00 |
| 7,500+ | ₹11.89 | ₹89,175.00 |
5 × ₹18.07
₹90.35
excl. GST
₹106.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 7,500 per reel
ES1DHE3_A/I
₹90.35 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 25ns
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 920mV@1A
- Reverse Leakage Current (Ir)
- 5uA@200V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 7,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.106 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MUR120SA#C18336924amsem · DO-214AC(SMA) | amsem | DO-214AC(SMA) | 4,380 | ₹8.97 · 4,380 in stock | View |
 | ES1DHE3_A/H#C2940059VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 18,125 | ₹15.06 · 18,125 in stock | View |
| ES1D-M3/61T#C2979777VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 309 | ₹75.45 · 309 in stock | View | |
 | ES1D-E3/5AT#C511594VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 365 | ₹17.91 · 365 in stock | View |
 | ES1D#C84602onsemi · SMA(DO-214AC) | onsemi | SMA(DO-214AC) | 31,560 | ₹19.98 · 31,560 in stock | View |
