onsemiDatasheet (PDF)

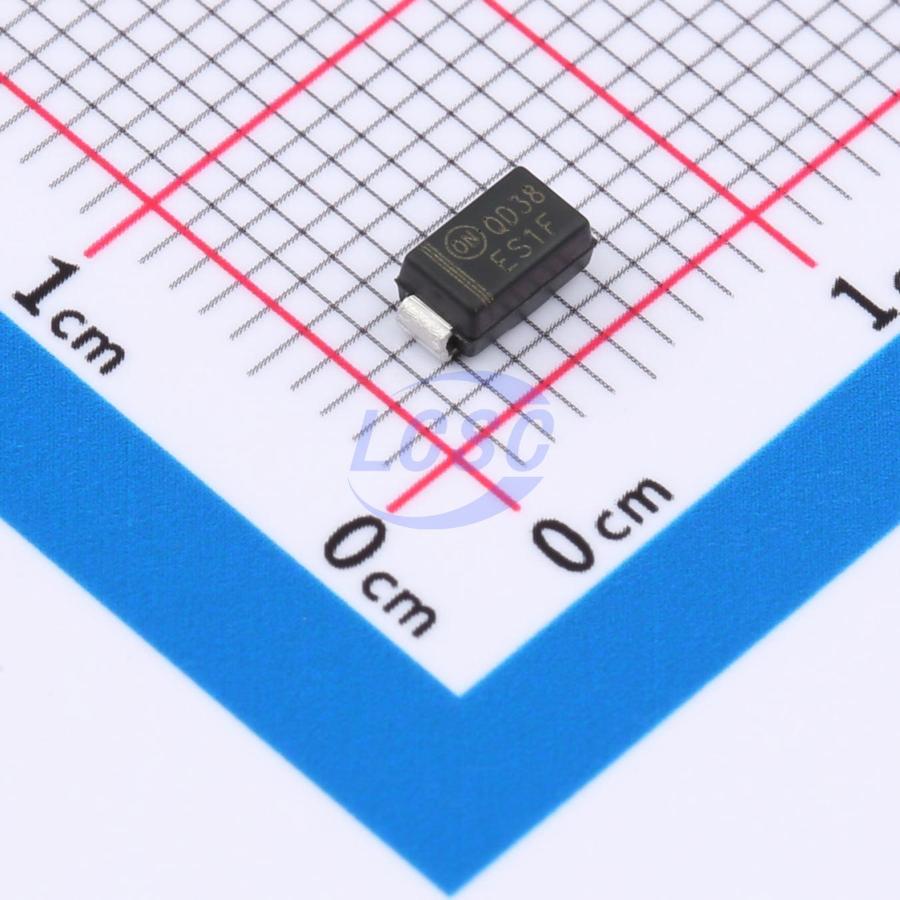

ES1F
35ns 1 Independent 300V 1.3V@1A 1A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
Diode 300V 1A SMA(DO-214AC)
- Manufacturer
- onsemi
- Manufacturer part #
- ES1F
- Store part #
- C241729
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
247 in stock
#C241729
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.22 | ₹53.22 |
| 10+ | ₹41.49 | ₹414.90 |
| 30+ | ₹36.28 | ₹1,088.40 |
| 100+ | ₹29.98 | ₹2,998.00 |
| 500+ | ₹27.16 | ₹13,580.00 |
| 1,000+ | ₹25.41 | ₹25,410.00 |
1 × ₹53.22
₹53.22
excl. GST
₹62.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
ES1F
₹53.22 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 35ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 300V
- Pd - Power Dissipation
- 1.47W
- Voltage - Forward(Vf@If)
- 1.3V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.103 g
Overview
Key features
- For Surface Mount Applications
- Glass Passivated Junction
- Low Profile Package
- Easy Pick and Place
- Built-in Strain Relief
- Superfast Recovery Times for High Efficiency
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ES1G#C493180SMC · SMA(DO-214AC) | SMC | SMA(DO-214AC) | 4,920 | ₹8.20 · 4,920 in stock | View |
 | ES1G#C5280532XCH · SMA | XCH | SMA | 3,650 | ₹1.30 · 3,650 in stock | View |
 | ES1G-F5-S0256HF#C574033YANGJIE · SMA(DO-214AC) | YANGJIE | SMA(DO-214AC) | 60 | ₹8.16 · 60 in stock | View |
 | ES1G#C698721YANGJIE · SMA(DO-214AC) | YANGJIE | SMA(DO-214AC) | 800 | ₹4.56 · 800 in stock | View |
 | ES1J#C727090TWGMC · SMA(DO-214AC) | TWGMC | SMA(DO-214AC) | 44,650 | ₹1.72 · 44,650 in stock | View |
