JSCJDatasheet (PDF)

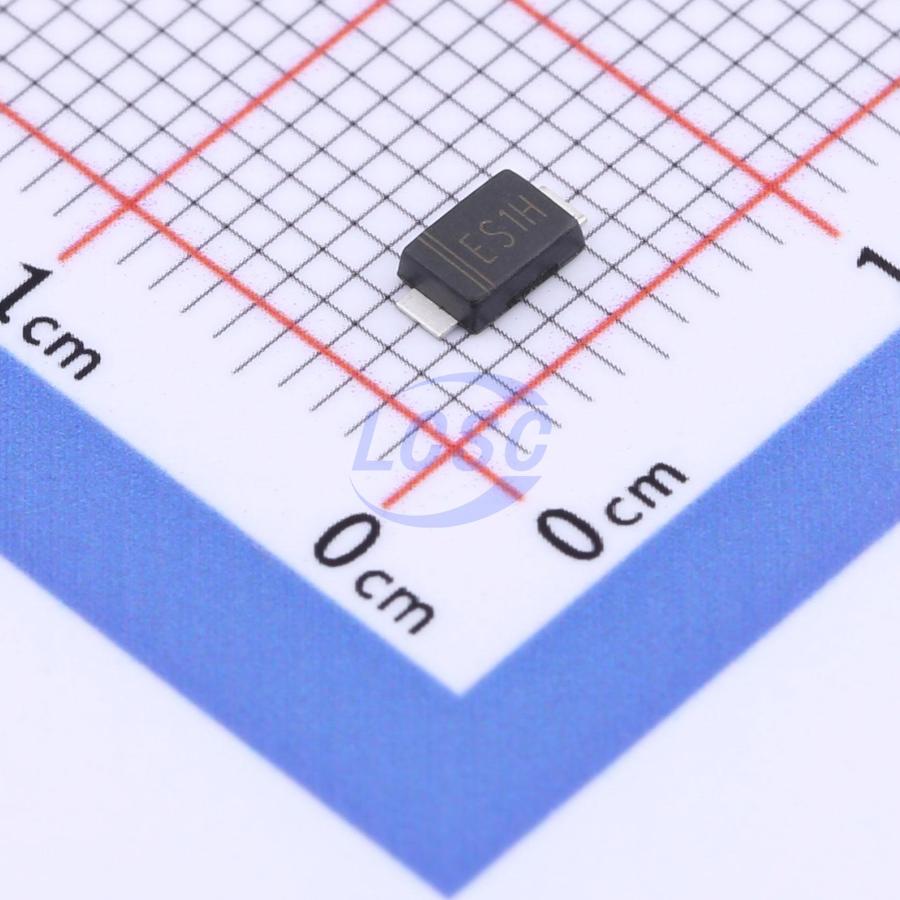

ES1HF
35ns 1 Independent 500V 1.7V@1A 1A DO-214AD Single Diodes RoHS
DO-214ADROHS CompliantActive
Diode 500V 1A DO-214AD
- Manufacturer
- JSCJ
- Manufacturer part #
- ES1HF
- Store part #
- C3019328
- Package / case
- DO-214AD
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,420 in stock
#C3019328
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.20 | ₹64.00 |
| 200+ | ₹2.51 | ₹502.00 |
| 600+ | ₹2.13 | ₹1,278.00 |
| 3,000+ | ₹1.91 | ₹5,730.00 |
| 9,000+ | ₹1.71 | ₹15,390.00 |
| 21,000+ | ₹1.60 | ₹33,600.00 |
20 × ₹3.20
₹64.00
excl. GST
₹75.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ES1HF
₹64.00 for 20 + GST
Specifications
- Reverse Recovery Time (trr)
- 35ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 500V
- Voltage - Forward(Vf@If)
- 1.7V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.062 g
Overview
Applications
- Rectifier
Key features
- IF(AV) 1A
- VRRM 50V - 600V
- High surge current capability
- Polarity: Color band denotes cathode
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | US1JF#C2923898JSCJ · DO-214AD | JSCJ | DO-214AD | 5,080 | ₹3.36 · 5,080 in stock | View |
 | US1MF#C2923899JSCJ · DO-214AD | JSCJ | DO-214AD | 980 | ₹3.48 · 980 in stock | View |
 | ES2JF#C2923933JSCJ · DO-214AD | JSCJ | DO-214AD | 180 | ₹4.10 · 180 in stock | View |
 | RS1KF#C3019336JSCJ · SMAF | JSCJ | SMAF | 2,750 | ₹2.66 · 2,750 in stock | View |
 | RS2JF#C2923917JSCJ · DO-214AD | JSCJ | DO-214AD | 2,620 | ₹3.78 · 2,620 in stock | View |
