HXY MOSFETDatasheet (PDF)

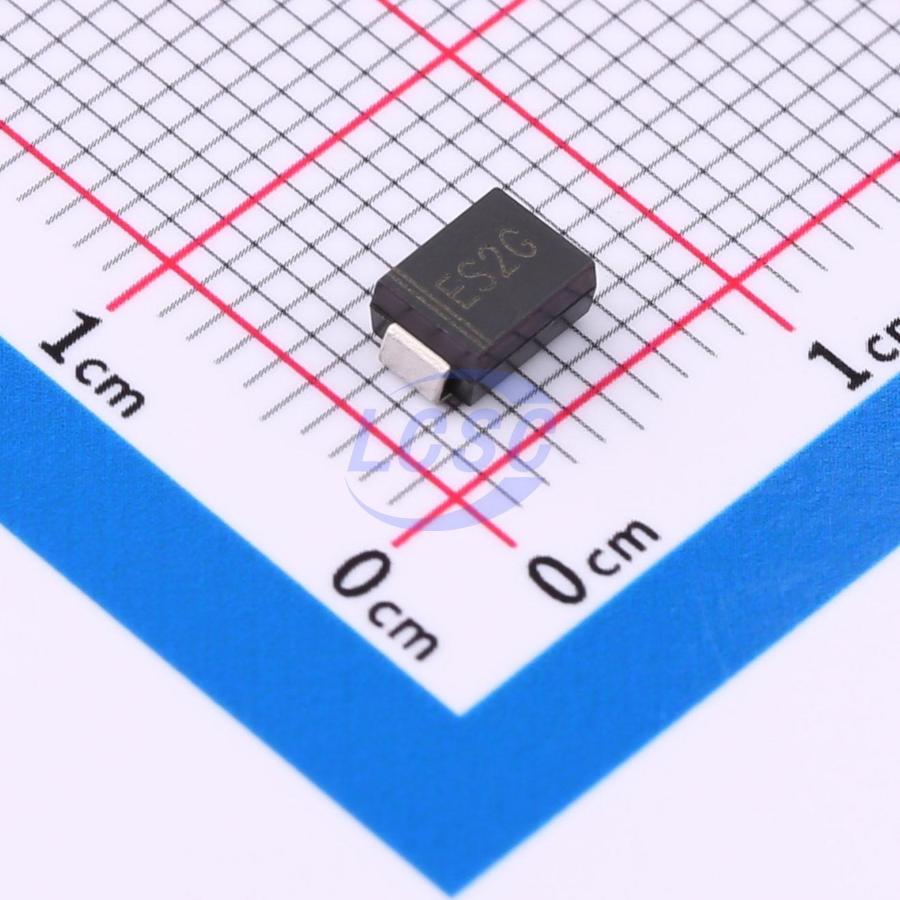

ES2G
35ns 400V 1 Independent 1.25V 2A SMB Single Diodes RoHS
SMBROHS CompliantActive
Diode 400V 2A SMB
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- ES2G
- Store part #
- C41419583
- Package / case
- SMB
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
150 in stock
#C41419583
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.49 | ₹124.50 |
| 500+ | ₹1.94 | ₹970.00 |
| 3,000+ | ₹1.64 | ₹4,920.00 |
| 6,000+ | ₹1.46 | ₹8,760.00 |
| 24,000+ | ₹1.30 | ₹31,200.00 |
| 51,000+ | ₹1.22 | ₹62,220.00 |
50 × ₹2.49
₹124.50
excl. GST
₹146.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ES2G
₹124.50 for 50 + GST
Specifications
- Reverse Recovery Time (trr)
- 35ns
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 400V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.25V
- Reverse Leakage Current (Ir)
- 5uA
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.139 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STTH2R06U-HXY#C53467913HXY MOSFET · SMB | HXY MOSFET | SMB | 40 | ₹19.08 · 40 in stock | View |
 | USB260HM3/52T-HXY#C53467915HXY MOSFET · SMB | HXY MOSFET | SMB | 45 | ₹38.06 · 45 in stock | View |
 | USB260-M3/52T-HXY#C53467917HXY MOSFET · SMB | HXY MOSFET | SMB | 45 | ₹36.98 · 45 in stock | View |
 | CMR2U-06TR13PBFREE-HXY#C53467919HXY MOSFET · SMB | HXY MOSFET | SMB | 48 | ₹65.29 · 48 in stock | View |
 | USB260-M3/5BT-HXY#C53467921HXY MOSFET · SMB | HXY MOSFET | SMB | 45 | ₹32.63 · 45 in stock | View |
