VISHAYDatasheet (PDF)

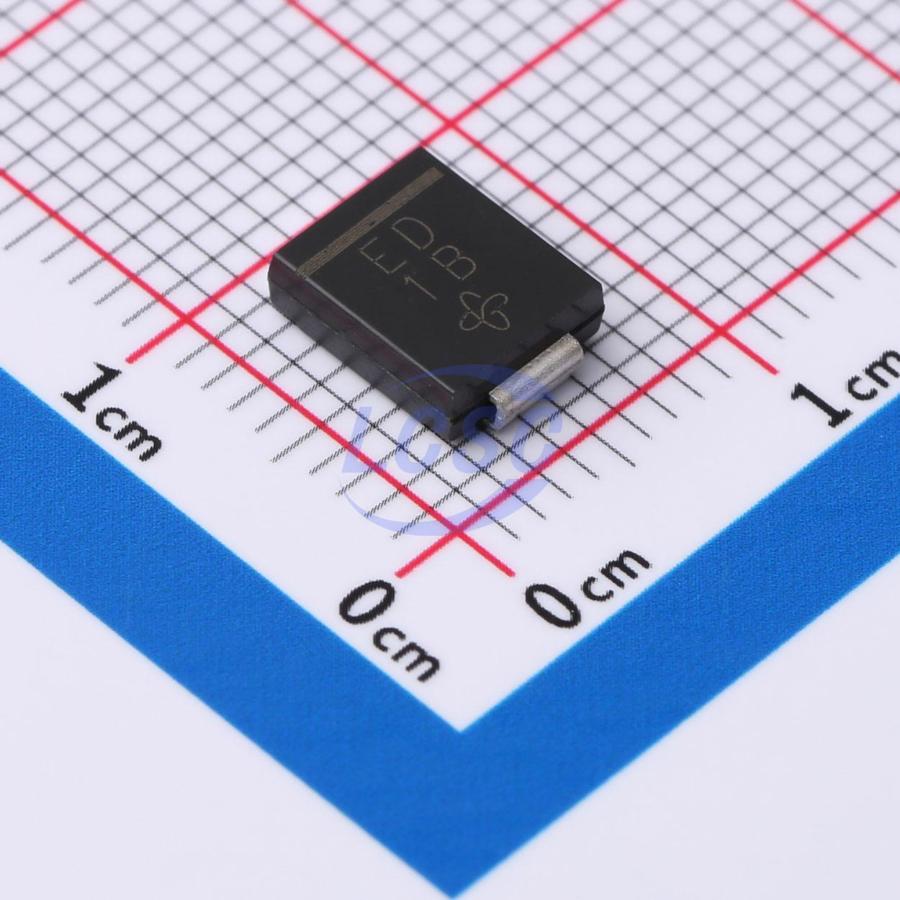

ES3D-E3/9AT
30ns 1 Independent 200V 900mV@3A 3A DO-214AB(SMC) Single Diodes RoHS
DO-214AB(SMC)ROHS3 CompliantActive
Diode 200V 3A DO-214AB(SMC)
- Manufacturer
- VISHAY
- Manufacturer part #
- ES3D-E3/9AT
- Store part #
- C5224056
- Package / case
- DO-214AB(SMC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,420 in stock
#C5224056
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.36 | ₹256.80 |
| 50+ | ₹41.37 | ₹2,068.50 |
| 150+ | ₹37.08 | ₹5,562.00 |
| 500+ | ₹31.75 | ₹15,875.00 |
| 3,500+ | ₹27.19 | ₹95,165.00 |
| 7,000+ | ₹25.76 | ₹1,80,320.00 |
5 × ₹51.36
₹256.80
excl. GST
₹303.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
ES3D-E3/9AT
₹256.80 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 30ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 900mV@3A
- Reverse Leakage Current (Ir)
- 10uA@200V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ES3D(SMC)#C22374925DOWO · SMC | DOWO | SMC | 1,770 | ₹4.95 · 1,770 in stock | View |
 | ES3D#C2944277RUILON · SMC | RUILON | SMC | 160 | ₹12.52 · 160 in stock | View |
 | ES3DHV6G#C3028979Taiwan Semiconductor · DO-214AB(SMC) | Taiwan Semiconductor | DO-214AB(SMC) | 6 | ₹28.06 · 6 in stock | View |
 | ES3D#C2922176GOODWORK · SMC(DO-214AB) | GOODWORK | SMC(DO-214AB) | 15,410 | ₹6.60 · 15,410 in stock | View |
 | ES3DC#C48996692DOWO · SMC | DOWO | SMC | 2,380 | ₹5.19 · 2,380 in stock | View |
