R+ODatasheet (PDF)

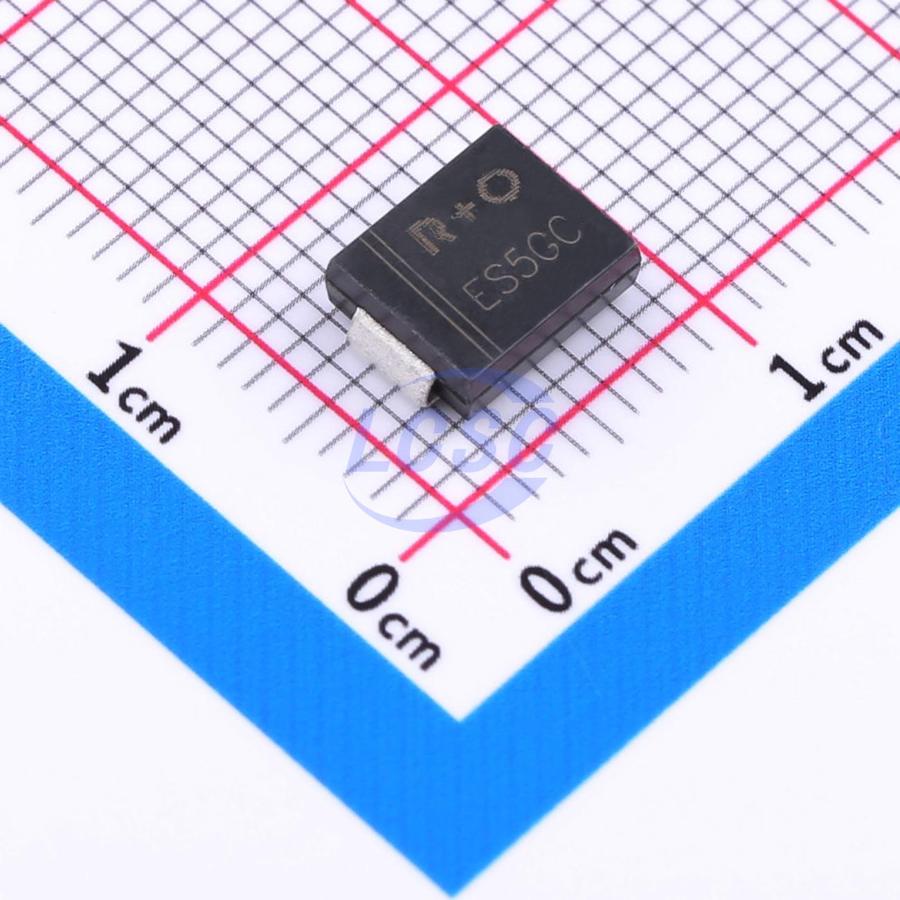

ES5GC
35ns 400V 1 Independent 1.3V@5A 5A SMC Single Diodes RoHS
SMCROHS CompliantActive
Diode 400V 5A SMC
- Manufacturer
- R+O
- Manufacturer part #
- ES5GC
- Store part #
- C18199145
- Package / case
- SMC
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,770 in stock
#C18199145
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.07 | ₹100.70 |
| 100+ | ₹7.98 | ₹798.00 |
| 300+ | ₹6.95 | ₹2,085.00 |
| 3,000+ | ₹6.15 | ₹18,450.00 |
| 6,000+ | ₹5.53 | ₹33,180.00 |
| 9,000+ | ₹5.23 | ₹47,070.00 |
10 × ₹10.07
₹100.70
excl. GST
₹118.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ES5GC
₹100.70 for 10 + GST
Specifications
- Reverse Recovery Time (trr)
- 35ns
- Voltage - DC Reverse (Vr) (Max)
- 400V
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.3V@5A
- Reverse Leakage Current (Ir)
- 2uA@400V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.316 g
Overview
Applications
- High-frequency rectification
- Freewheeling applications in switch-mode converters and inverters
- Consumer electronics
- Computing
- Automotive electronics
- Communications
Key features
- Low-profile package
- Suitable for automated placement
- Glass passivated chip junction
- Ultra-fast reverse recovery time
- Low switching losses, high efficiency
- High forward surge capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ES5JC#C18199166R+O · SMC | R+O | SMC | 37,180 | ₹8.63 · 37,180 in stock | View |
 | RS5MC#C18199121R+O · SMC | R+O | SMC | 7,890 | ₹6.64 · 7,890 in stock | View |
 | ES8JC#C18199167R+O · SMC | R+O | SMC | 1,34,140 | ₹16.83 · 1,34,140 in stock | View |
 | US5MC#C18199131R+O · SMC | R+O | SMC | 16,355 | ₹10.23 · 16,355 in stock | View |
 | US8MC#C18199136R+O · SMC | R+O | SMC | 385 | ₹14.02 · 385 in stock | View |
