VISHAYDatasheet (PDF)

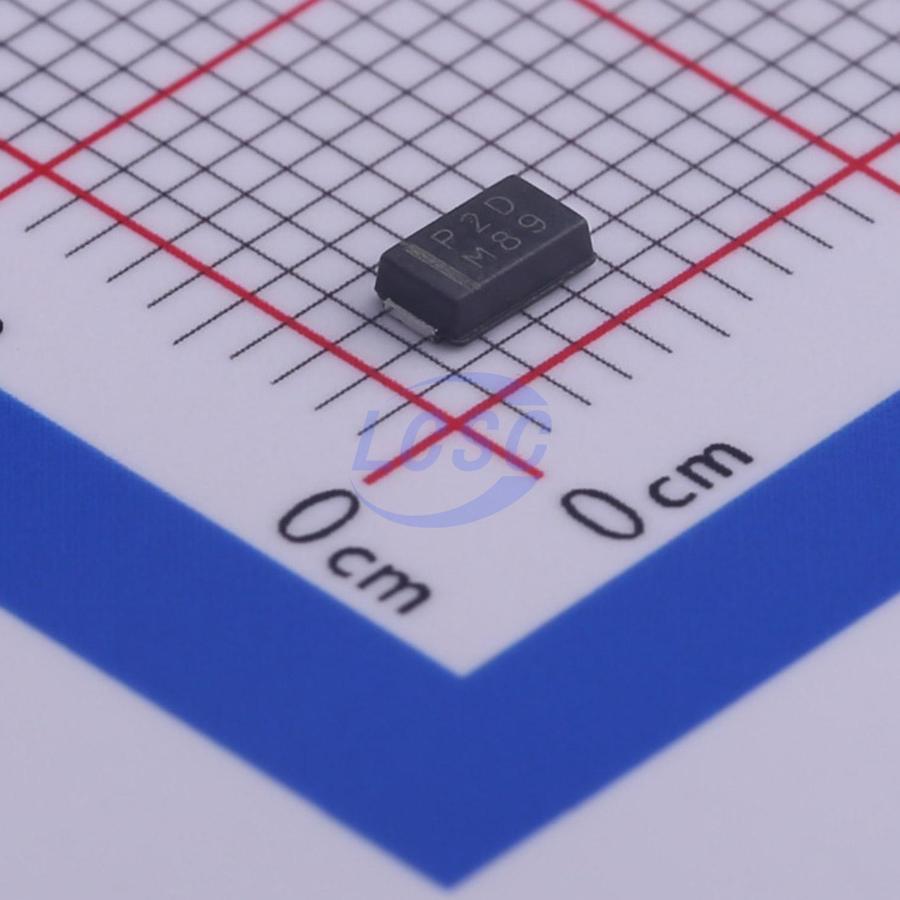

ESH2PD-M3/84A
25ns 1 Independent 200V 980mV@2A 2A DO-220AA Single Diodes RoHS
DO-220AAROHS3 CompliantActive
Diode 200V 2A DO-220AA
- Manufacturer
- VISHAY
- Manufacturer part #
- ESH2PD-M3/84A
- Store part #
- C467540
- Package / case
- DO-220AA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,002 in stock
#C467540
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.10 | ₹73.10 |
| 10+ | ₹58.30 | ₹583.00 |
| 30+ | ₹51.99 | ₹1,559.70 |
| 100+ | ₹44.16 | ₹4,416.00 |
| 500+ | ₹40.68 | ₹20,340.00 |
| 1,000+ | ₹33.29 | ₹33,290.00 |
1 × ₹73.10
₹73.10
excl. GST
₹86.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ESH2PD-M3/84A
₹73.10 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 25ns
- Operating Junction Temperature Range
- -55℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 980mV@2A
- Reverse Leakage Current (Ir)
- 1uA
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.394 g
Overview
Applications
- For use in secondary rectification and freewheeling for ultrafast switching speeds of AC/DC and DC/DC converters in high temperature for both consumer and automotive applications.
Key features
- Very low profile - typical height of 1.0 mm Available
- Ideal for automated placement
- Glass passivated pellet chip junction
- Ultrafast recovery times for high frequency
- Low forward voltage drop, low power losses
- Low thermal resistance
- Meets MSL level 1 per J-STD-020, LF maximum peak of 260 ℃
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| ESH2PDHM3/84A#C5881322VISHAY · SMP(DO-220AA) | VISHAY | SMP(DO-220AA) | 2,930 | ₹34.24 · 2,930 in stock | View | |
