etasolutionDatasheet (PDF)

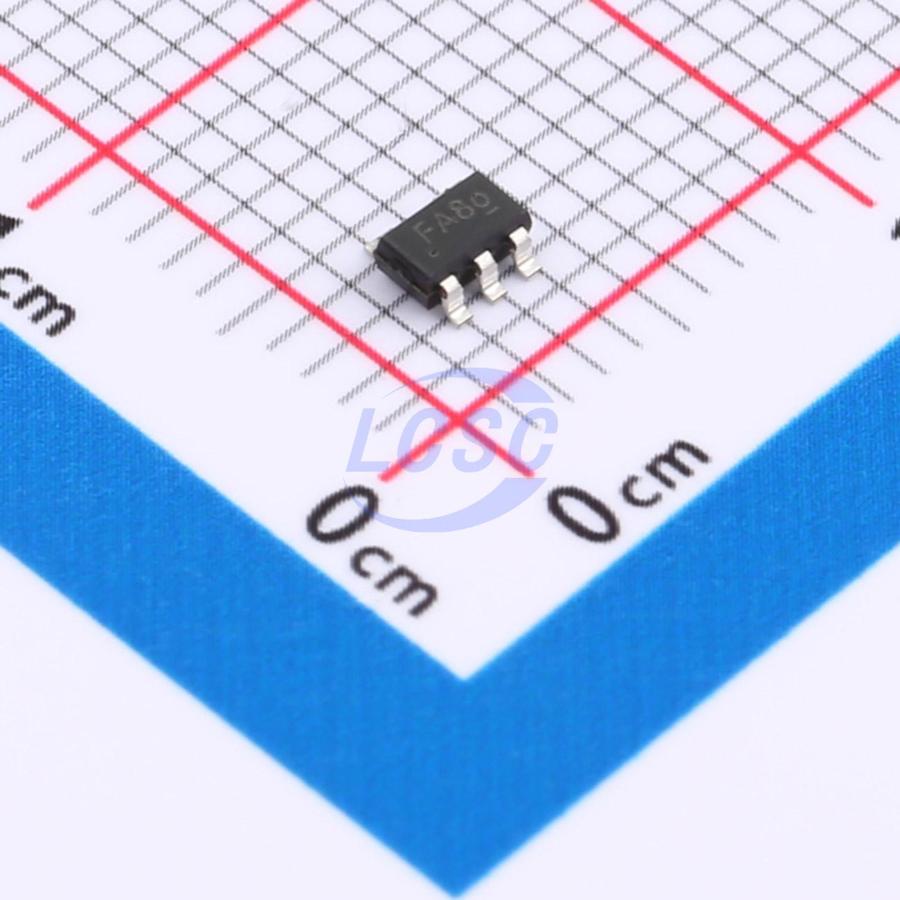

ETA5050V0S2F
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT23-5
SOT23-5ROHS CompliantActive
500mA low-noise, high PSRR, fast transient response, adjustable output voltage LDO
- Manufacturer
- etasolution
- Manufacturer part #
- ETA5050V0S2F
- Store part #
- C7436029
- Package / case
- SOT23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,000 in stock
#C7436029
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.07 | ₹50.70 |
| 100+ | ₹4.02 | ₹402.00 |
| 300+ | ₹3.49 | ₹1,047.00 |
| 3,000+ | ₹3.11 | ₹9,330.00 |
| 6,000+ | ₹2.79 | ₹16,740.00 |
| 9,000+ | ₹2.63 | ₹23,670.00 |
10 × ₹5.07
₹50.70
excl. GST
₹59.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA5050V0S2F
₹50.70 for 10 + GST
Specifications
- Output Voltage
- 800mV~6V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 37uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 6V
- Output Type
- Adjustable
- Features
- Enable control;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
ETA5050 is a 500mA low noise and fast transient response liner regulator with adjustable output voltage and ultra- low dropout voltage. Its output voltage is programmed by a resistor divider, and can be as low as 0.8V, which satisfies the most advanced ICs which may require supply voltage to be 0.9V - 1.2V. ETA5050 is consists of a precise voltage reference, an error amplifier, a compensation network and a low ON- resistance power P- MOSFET. It also integrates many protection circuitry, like current limit and over- temperature protection module. ETA5050 is in a tiny SOT23- 5 package.
Applications
- Cellphones
- Camera modules
- Medical Instruments
- Battery powered devices
Key features
- 500mA output current
- Adjustable output voltage
- Minimum output voltage as low as 0.8V
- Ultra-low dropout voltage 370mV @ 500mA
- Low quiescent current 40uA
- <1uA shutdown current
- Short-circuit protection
- Over-temperature protection
