etasolutionDatasheet (PDF)

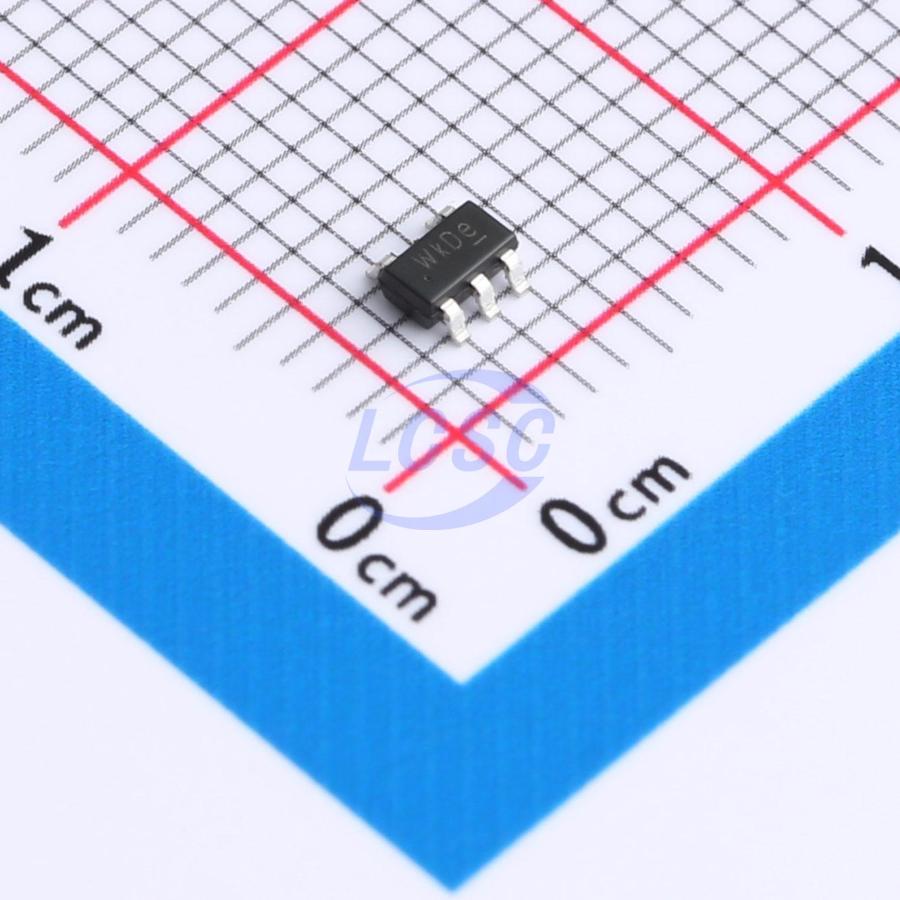

ETA5055V330DS2F
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS CompliantActive
Ultra-High PSRR, UItra-Low lq, 500mA LDO for RF and Analog Circuits
- Manufacturer
- etasolution
- Manufacturer part #
- ETA5055V330DS2F
- Store part #
- C22362747
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,770 in stock
#C22362747
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.96 | ₹89.60 |
| 100+ | ₹7.12 | ₹712.00 |
| 300+ | ₹6.20 | ₹1,860.00 |
| 3,000+ | ₹5.52 | ₹16,560.00 |
| 6,000+ | ₹4.96 | ₹29,760.00 |
| 9,000+ | ₹4.68 | ₹42,120.00 |
10 × ₹8.96
₹89.60
excl. GST
₹105.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ETA5055V330DS2F
₹89.60 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 4.5uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Output Type
- Fixed
- Features
- Enable control;Input under-voltage protection;Output discharge;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.103 g
Overview
ETA5055 is a low-dropout (LDO) linear voltage regulator that features ultra-high power supply rejection ratio (PSRR), ultra-low quiescent current, fast start-up, and excellent line and load transient responses. Its PSRR can be as high as 102dB at 1.2V output. Therefore, ETA5055 is an ideal power supply for noise-sensitive applications such as RF transmissions, cellphones, CMOS sensors and audios etc. ETA5055 is available in DFN1X1-4, DFN2x2-6, SOT23-5, and CSP-4 packages.
Applications
- RF Power
- Smartphones
- Tablets
- Cameras
- DVRs
- STB
Key features
- Ultra-High PSRR up to 102dB
- Typ. 94dB at 1KHz
- Ultra-Low Quiescent Current: 4.5uA
- 500mA Output Current
- Ultra-Low Dropout Voltage
- Stable with a Wide Range of Ceramic Capacitor, Larger than 1μF
- Excellent Load and Line Transient Response
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ETA5050V33S2F#C7465498etasolution · SOT-23-5 | etasolution | SOT-23-5 | 9,320 | ₹5.09 · 9,320 in stock | View |
