YLPTEC

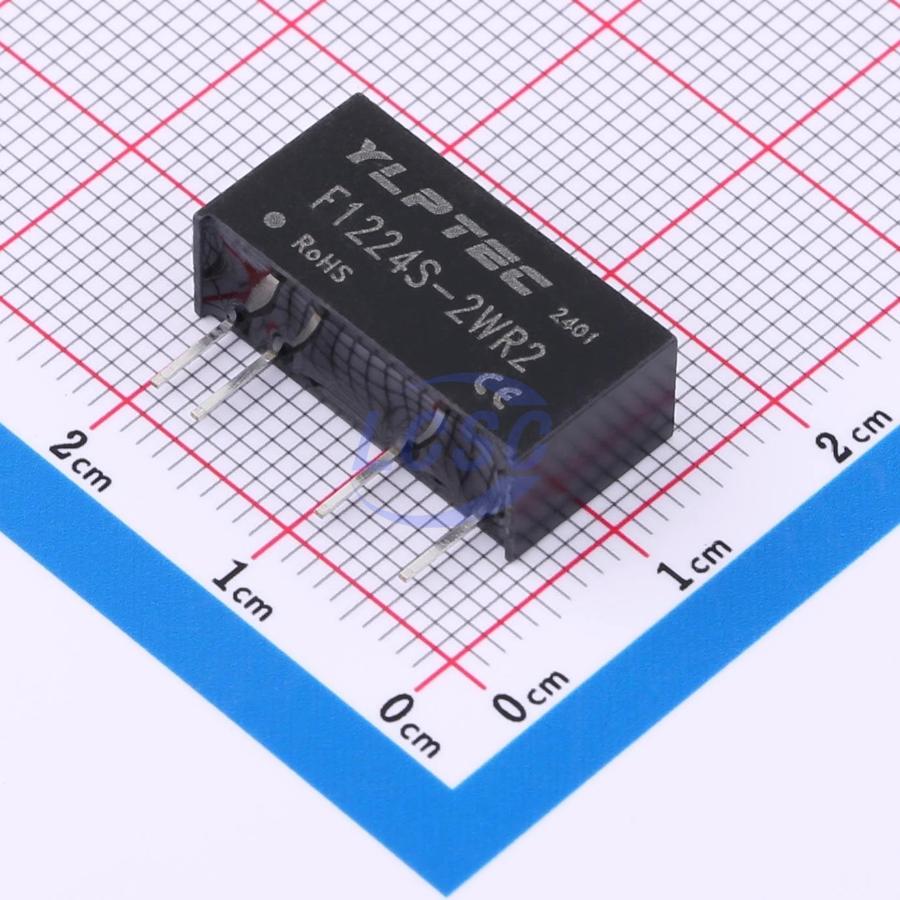

F1224S-2WR2

Isolated Module DC DC Converter Boost 1 Output 24V 83mA 10.8V~13.2V Input

SIP,19.5x7mmRoHSActive

2W Isolated Non-regulated Single-output DC/DC Power Module with Fixed Voltage Input

Manufacturer: YLPTEC
Manufacturer part #: F1224S-2WR2
Store part #: C19724386
Package / case: SIP,19.5x7mm
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

30 in stock

#C19724386

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹279.80	₹279.80
10+	₹236.74	₹2,367.40
25+	₹209.85	₹5,246.25
100+	₹182.34	₹18,234.00
500+	₹169.94	₹84,970.00
1,000+	₹164.48	₹1,64,480.00

Quantity (min 1)

1 × ₹279.80

₹279.80

excl. GST

₹330.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 25 per tube

F1224S-2WR2

₹279.80 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 24V
Ripple Noise: 150mVp-p
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 20mA
Voltage - Supply: 10.8V~13.2V
Capacitive Load(Max): 220uF
Number of Outputs: 1
Iout: 83mA
Height: 10mm
Frequency - Switching: 100kHz
Features: Short Circuit Protection;Over-temperature protection
Conversion Efficiency: 86%
Output Power: 2W
Length: 19.5mm
Width: 7mm

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 2.41 g

Overview

The F_S-2WR2 series is a compact, high-efficiency, ultra-low power, fixed-voltage, isolated unregulated single-output DC/DC converter module; this series is specifically designed for on-board power supply systems requiring a voltage rail isolated from the input power source.
