VBsemi ElecDatasheet (PDF)

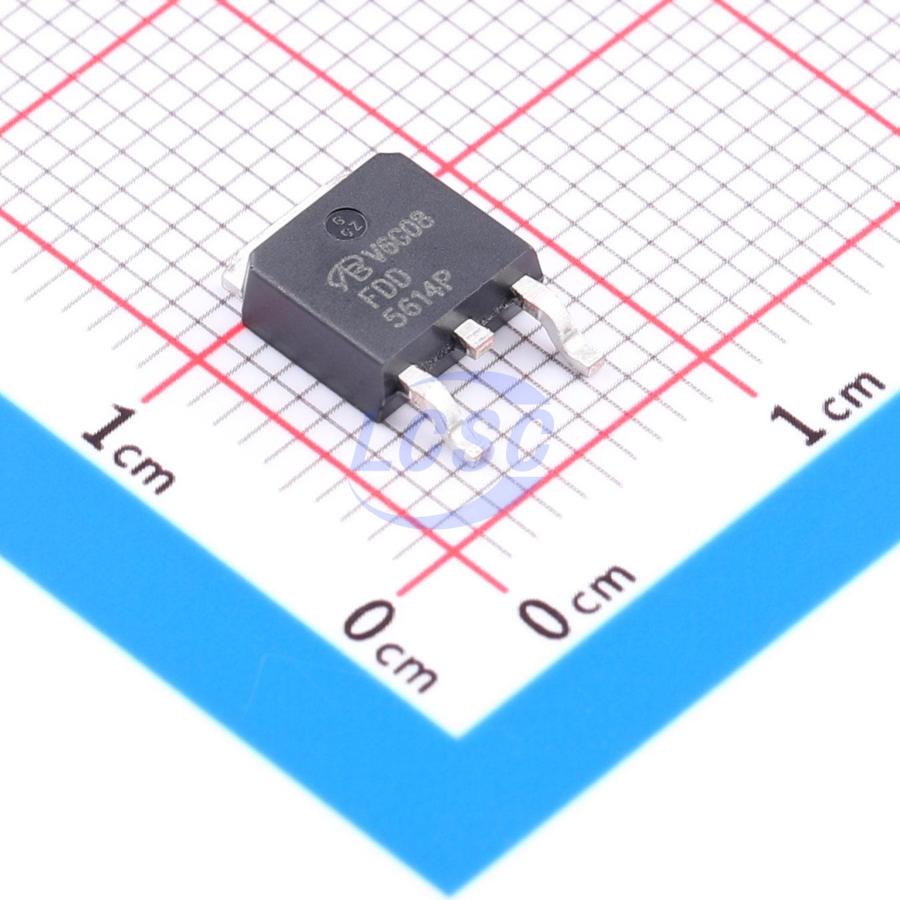

FDD5614P-VB
P-Channel 60V 30A Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 60V 30A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDD5614P-VB
- Store part #
- C709959
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C709959
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.02 | ₹83.02 |
| 10+ | ₹67.80 | ₹678.00 |
| 30+ | ₹60.20 | ₹1,806.00 |
| 100+ | ₹52.81 | ₹5,281.00 |
| 500+ | ₹43.25 | ₹21,625.00 |
| 1,000+ | ₹40.85 | ₹40,850.00 |
1 × ₹83.02
₹83.02
excl. GST
₹97.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD5614P-VB
₹83.02 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1nF
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 61mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.414 g
Overview
Applications
- Load Switch
Key features
- Trench power MOSFET
- 100% single-pulse avalanche energy tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPD08P06PG-VB#C18795061VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹79.49 · 30 in stock | View |
 | MTD2955T4G-VB#C19626735VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹75.62 · 40 in stock | View |
 | SFR9024TF-VB#C20754969VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹78.56 · 50 in stock | View |
 | 2SJ314-01S-VB#C20755442VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹75.62 · 50 in stock | View |
 | AP9576GH-VB#C20755647VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹78.56 · 30 in stock | View |
