VBsemi ElecDatasheet (PDF)

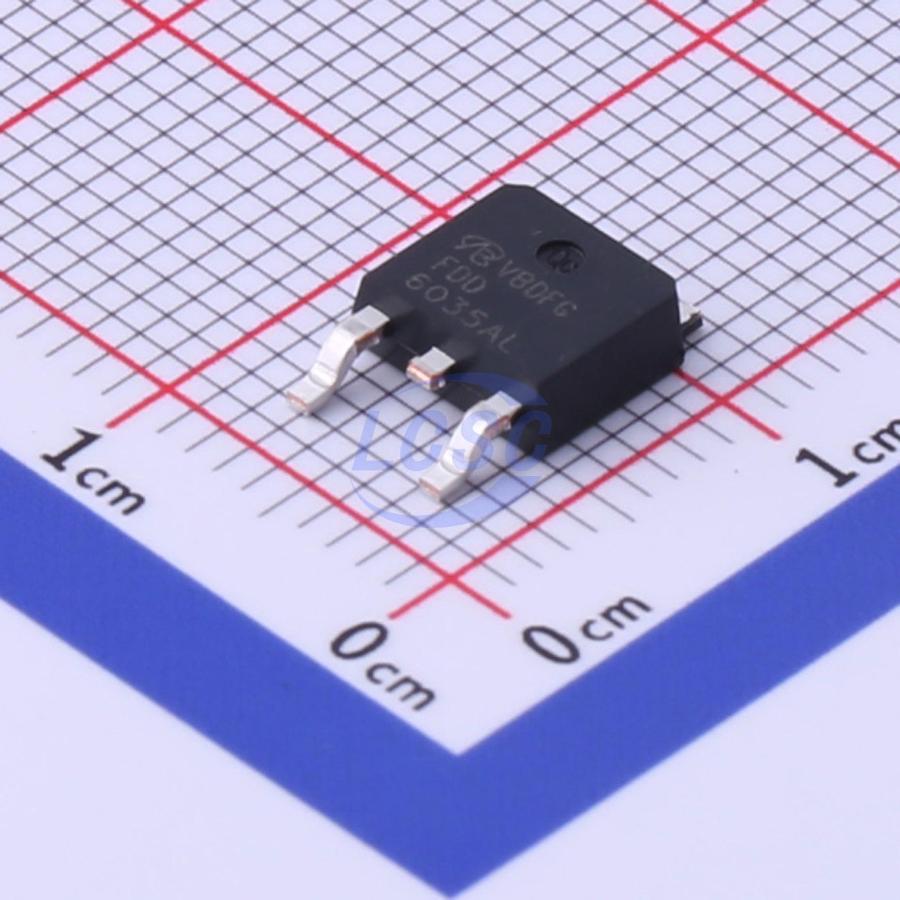

FDD6035AL-VB
30V 25.8A 3.75W 1 N-channel TO-252 Single FETs, MOSFETs
TO-252RoHSActive
MOSFET N-CH 30V 25.8A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDD6035AL-VB
- Store part #
- C725027
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C725027
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.74 | ₹56.74 |
| 10+ | ₹45.56 | ₹455.60 |
| 30+ | ₹40.84 | ₹1,225.20 |
| 100+ | ₹34.82 | ₹3,482.00 |
| 500+ | ₹29.45 | ₹14,725.00 |
| 1,000+ | ₹27.73 | ₹27,730.00 |
1 × ₹56.74
₹56.74
excl. GST
₹66.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD6035AL-VB
₹56.74 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 25.8A
- Ciss-Input Capacitance
- 2.201nF
- Pd - Power Dissipation
- 3.75W
- Reverse Transfer Capacitance (Crss)
- 270pF
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.381 g
Overview
Applications
- OR Gate - Server - DC/DC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
