VBsemi ElecDatasheet (PDF)

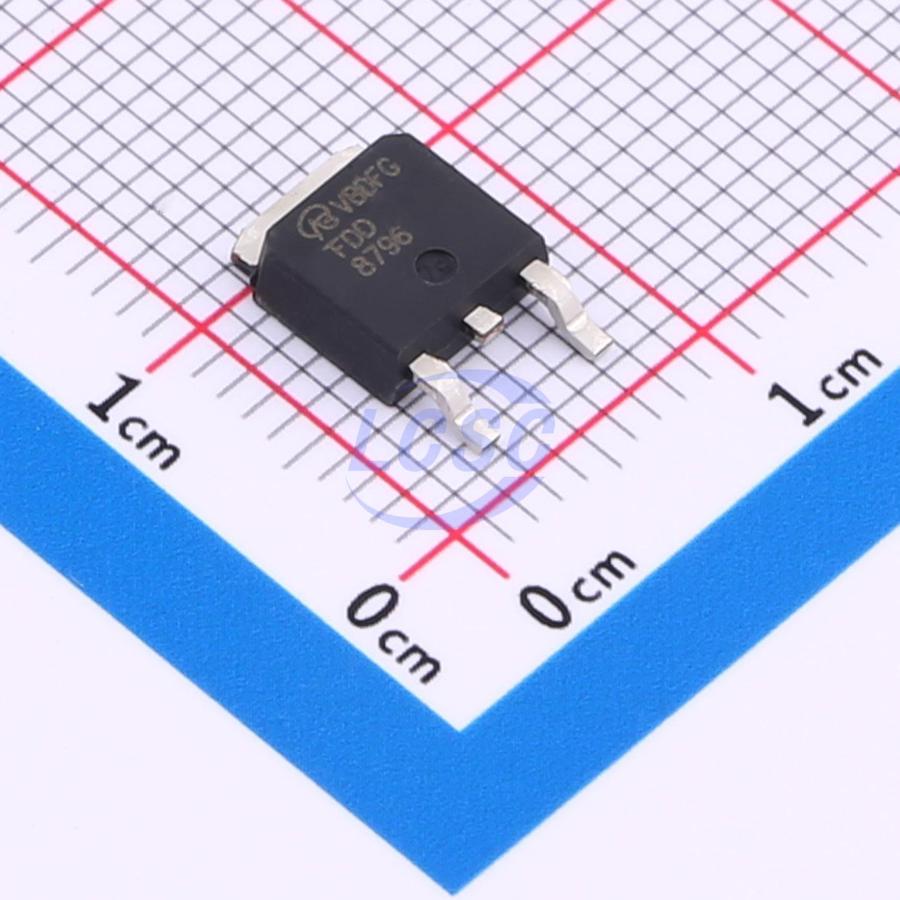

FDD8796-VB
20V 100A 71W 4.5mΩ@4.5V 1 N-channel N-Channel TO-252 Single FETs, MOSFETs RoHS
TO-252ROHS CompliantActive
MOSFET N-CH 20V 100A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDD8796-VB
- Store part #
- C7568995
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C7568995
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.93 | ₹73.93 |
| 10+ | ₹59.54 | ₹595.40 |
| 30+ | ₹53.30 | ₹1,599.00 |
| 100+ | ₹45.56 | ₹4,556.00 |
| 500+ | ₹37.82 | ₹18,910.00 |
| 1,000+ | ₹35.89 | ₹35,890.00 |
1 × ₹73.93
₹73.93
excl. GST
₹87.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FDD8796-VB
₹73.93 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 730pF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 3.66nF
- Pd - Power Dissipation
- 71W
- Reverse Transfer Capacitance (Crss)
- 375pF
- RDS(on)
- 4.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 26nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.345 g
Overview
Applications
- DC/DC Converters - DC/AC Inverters - Motor Drivers
Key features
- Trench power MOSFET
- Maximum junction temperature 175°C
- 100% gate resistance (Rg) testing
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD06N03LAG-VB#C18794953VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 59 | ₹74.90 · 59 in stock | View |
 | NTD80N02G-VB#C19711268VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹69.07 · 40 in stock | View |
 | 9915H-VB#C20755143VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 42 | ₹65.75 · 42 in stock | View |
 | SUD50N02-06-E3-VB#C20755401VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹68.28 · 50 in stock | View |
 | D95NH02L-VB TO252#C20755491VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹68.28 · 50 in stock | View |
