VBsemi ElecDatasheet (PDF)

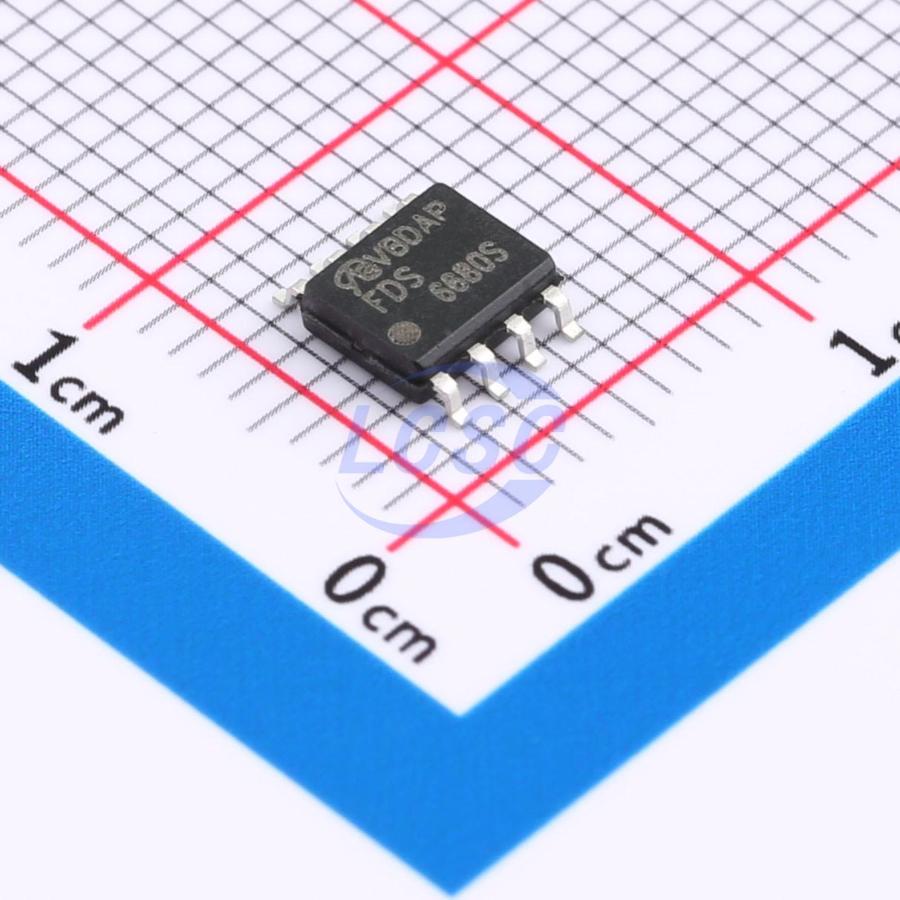

FDS6680S-NL-VB
N-Channel 20V 13A 4.1W Surface Mount SO-8
SO-8ROHS CompliantActive
MOSFET N-CH 20V 13A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- FDS6680S-NL-VB
- Store part #
- C7569004
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7569004
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.21 | ₹231.05 |
| 50+ | ₹36.67 | ₹1,833.50 |
| 150+ | ₹32.60 | ₹4,890.00 |
| 500+ | ₹27.49 | ₹13,745.00 |
| 2,500+ | ₹25.23 | ₹63,075.00 |
| 4,000+ | ₹23.87 | ₹95,480.00 |
5 × ₹46.21
₹231.05
excl. GST
₹272.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
FDS6680S-NL-VB
₹231.05 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 4.1W
- Reverse Transfer Capacitance (Crss)
- 73pF
- RDS(on)
- 8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.8nC@5V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
Applications
- Laptop CPU core
- High-end switching
Key features
- Halogen-free
- Trench power MOSFET
- Optimized for high-side synchronous rectifier operation
- 100% Rg tested
- 100% UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMS3016SSSA-VB#C7568876VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹46.21 · 20 in stock | View |
 | IRF7413ATRPBF-VB#C7569016VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹46.21 · 10 in stock | View |
 | MTB11N03Q8-VB#C878922VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 39 | ₹51.46 · 39 in stock | View |
 | FDS6680AS-NL-VB#C7568798VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 105 | ₹45.67 · 105 in stock | View |
 | P1603BV-VB#C7568901VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹50.17 · 20 in stock | View |
