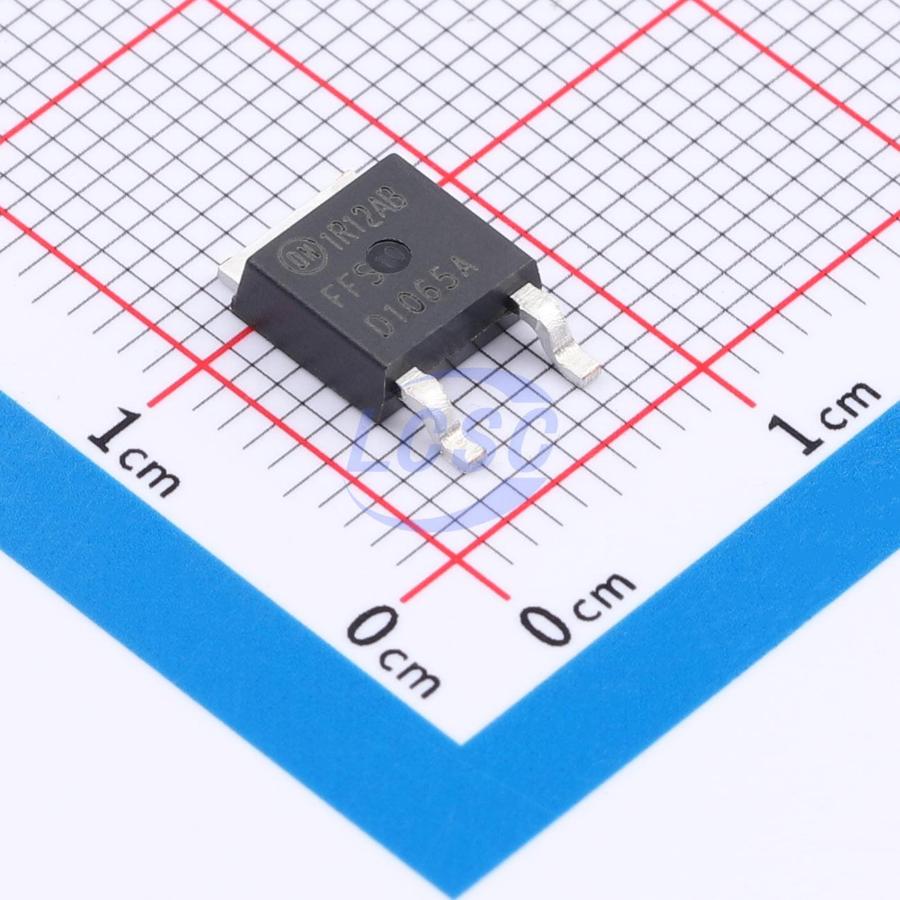

FFSD1065A
SiC Diode Independent 650V 18A Surface Mount DPAK(TO-252)
DIODE SIC 650V 18A DPAK(TO-252)
- Manufacturer
- onsemi
- Manufacturer part #
- FFSD1065A
- Store part #
- C605091
- Package / case
- DPAK(TO-252)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C605091
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹739.50 | ₹739.50 |
| 10+ | ₹636.19 | ₹6,361.90 |
| 30+ | ₹573.34 | ₹17,200.20 |
| 100+ | ₹520.69 | ₹52,069.00 |
1 × ₹739.50
₹739.50
excl. GST
₹872.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
FFSD1065A
₹739.50 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+175℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.5V@10A
- Reverse Leakage Current (Ir)
- 200uA@650V
- Non-Repetitive Peak Forward Surge Current
- 760A
- Current - Rectified
- 18A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.466 g
Overview
Silicon Carbide (SiC) Schottky Diodes use a completely new technology that provides superior switching performance and higher reliability compared to Silicon. No reverse recovery current, temperature independent switching characteristics, and excellent thermal performance sets Silicon Carbide as the next generation of power semiconductor. System benefits include highest efficiency, faster operating frequency, increased power density, reduced EMI, and reduced system size and cost.
Applications
- General Purpose
- SMPS, Solar Inverter, UPS
- Power Switching Circuits
Key features
- Max Junction Temperature 175°C
- Avalanche Rated 64 mJ
- High Surge Current Capacity
- Positive Temperature Coefficient
- Ease of Paralleling
- No Reverse Recovery/No Forward Recovery
- This Device is Pb-Free, Halogen Free/BFR Free and RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CI10S120D#C967713Tokmas · TO-252 | Tokmas | TO-252 | 907 | ₹264.93 · 907 in stock | View |
 | HC3D05120E#C22449567HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 648 | ₹256.40 · 648 in stock | View |
 | CI05S120E3#C2718438Tokmas · TO-252 | Tokmas | TO-252 | 3,048 | ₹170.11 · 3,048 in stock | View |
 | HC3D06065E#C22449555HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 431 | ₹209.70 · 431 in stock | View |
 | CI08S65E3#C967708Tokmas · TO-252 | Tokmas | TO-252 | 2,693 | ₹188.40 · 2,693 in stock | View |
