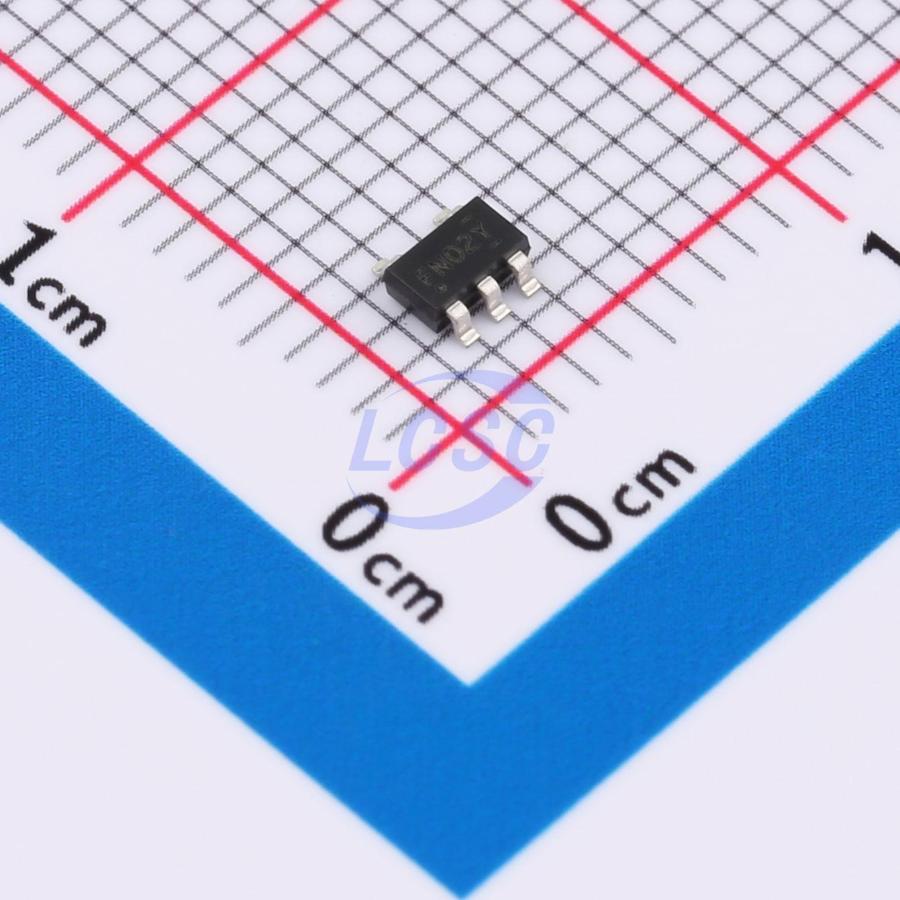

FIN1002M5X

This single receiver is designed for high- speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology. The receiver translates LVDS levels, with a typical differential input threshold of 100 mV, to LVTTL signal levels. LVDS provides low EMI at ultra low power dissipation even at high frequencies. This device is ideal for high- speed transfer of clock or data. The FIN1002 can be paired with its companion driver, the FIN1001, or with any other LVDS driver.

Key features

• Greater than 400 Mbs Data Rate
• 3.3 V Power Supply Operation
• 0.4 ns Maximum Pulse Skew
• 2.5 ns Maximum Propagation Delay
• Bus Pin ESD (HBM) Protection Exceeds 10 kV
• Power- Off, Over- voltage tolerant Input and Output
• Fail- safe Protection for open- circuit and non- driven, shorted, or terminated Conditions
• High- impedance Output at VCC < 1.5 V
• Meets or exceeds TIA/EIA- 644 LVDS Standard
• 5- Lead SOT23 Package saves Space
