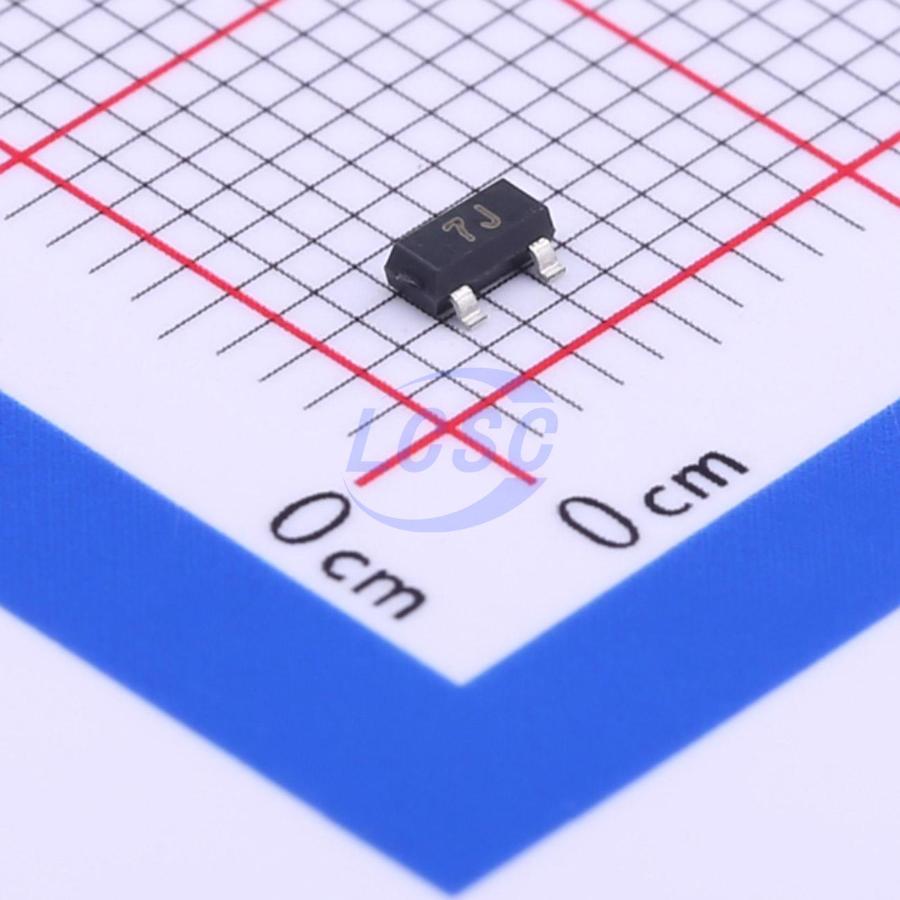

FMMT38CTA
60V 5000 300mA NPN SOT-23 Single Bipolar Transistors RoHS
SOT-23ROHS3 CompliantActive
60V NPN Medium Power Darlington Transistor in SOT23
- Manufacturer
- DIODES
- Manufacturer part #
- FMMT38CTA
- Store part #
- C13966
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
510 in stock
#C13966
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.00 | ₹160.00 |
| 50+ | ₹26.59 | ₹1,329.50 |
| 150+ | ₹24.28 | ₹3,642.00 |
| 500+ | ₹21.38 | ₹10,690.00 |
| 3,000+ | ₹20.10 | ₹60,300.00 |
| 6,000+ | ₹19.33 | ₹1,15,980.00 |
5 × ₹32.00
₹160.00
excl. GST
₹188.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FMMT38CTA
₹160.00 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃@(Tj)
- Current - Collector Cutoff
- 100nA
- Vbe On(VBE(on))
- 1.3V
- Collector - Emitter Voltage VCEO
- 60V
- Emitter-Base Voltage VEBO
- 10V
- DC Current Gain
- 5000
- Pd - Power Dissipation
- 330mW
- Current - Collector(Ic)
- 300mA
- type
- NPN
- Vce Saturation(VCE(sat))
- 1.25V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Key features
- Collector-emitter breakdown voltage (BVCEO) > 60 V
- Peak pulse current (ICM) = 800 mA
- Power dissipation: 330 mW
- Darlington transistor with hFE > 10,000 at IC = 500 mA
- Fully lead-free, fully RoHS compliant
- Halogen- and antimony-free, "green" device
- Compliant with AEC-Q101 high-reliability standard
- Automotive-grade variant available (FMMT38CQ), with separate datasheet
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BCV47QTA#C460006DIODES · SOT-23 | DIODES | SOT-23 | 115 | ₹91.15 · 115 in stock | View |
 | BCV47#C52117770R+O · SOT-23 | R+O | SOT-23 | 26,460 | ₹8.97 · 26,460 in stock | View |
 | BCV47,215-JSM#C53114052JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 5,200 | ₹5.65 · 5,200 in stock | View |
 | BCV47-JSM#C53114088JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 520 | ₹5.76 · 520 in stock | View |
 | BCV47,215#C406044Nexperia · SOT-23 | Nexperia | SOT-23 | 2,420 | ₹53.83 · 2,420 in stock | View |
